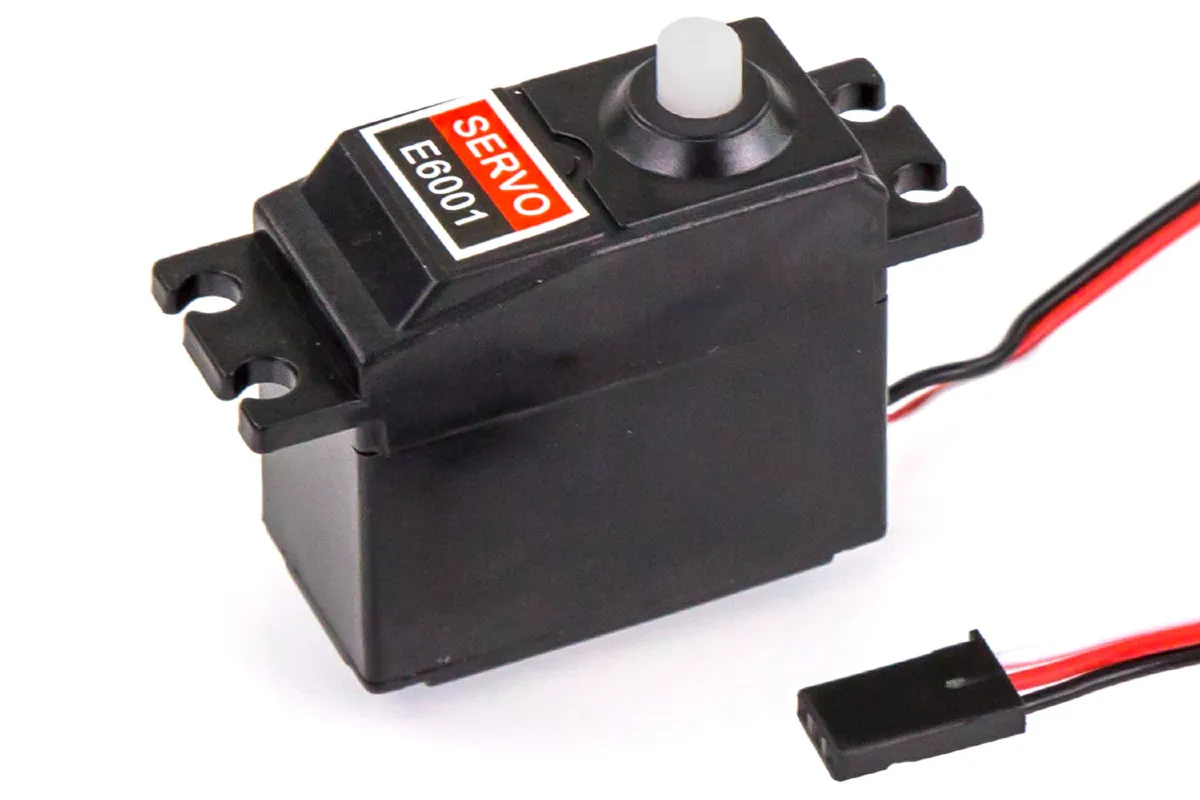

HSP Standard Waterproof Servo 6Kg

Brand: HSP | SKU: SP6001

discontinued

write a review

This product has been replaced by the product below.

RGT Standard Waterproof 6kg Servo

$24.62

sold out

Loading compatibility information...

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

HSP-SP6001 Servo Specifications

Total Height (A) = 44mm
Body Width (B) = 41mm
Below Mount (C) = 28mm
Above Mount (D) = 16mm
Total Length (E) = 55.5mm
Total Width (F) = 20mm

Specifications

Servo

Total Width: 20mm
Servo Spline Count: 25Tooth
Top to Under Mount: 16mm
Total Length: 55.5mm
Body Length: 41mm
Bottom to Under Mount: 28mm
Rotational Degrees: 120° (Normal)
Total Height: 44mm
Case Material: Plastic
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 6
Gear Material: Plastic
Waterproof Casing: Yes
Size Conventionally sized servo names: Standard
