HSP

HSP Standard Waterproof Servo 3Kg

Part no. SP3001

Discontinued1.0
1 review

No longer made. Replaced by:

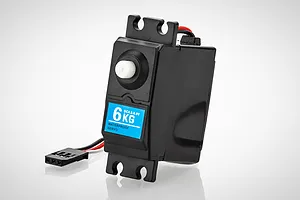

RGT Standard Waterproof 6kg Servo

$24.99

Sold out

Will it fit?

Check fit: add your vehicle to My GarageFits 9 vehicles

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

Total Height (A)44mm
Body Width (B)41mm
Below Mount (C)28mm
Above Mount (D)16mm
Total Length (E)55.5mm
Total Width (F)20mm

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialPlastic
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialPlastic
Height (A)44mm
Body Length (B)41mm
Bottom to Under Mount (C)28mm
Top to Under Mount (D)16mm
Length (E)55.5mm
Width (F)20mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline3

Compatibility

Reviews (1)

1.0

Based on 1 review

  • 5 stars0
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star1

  • Max S

    25 Apr 2020

    this comes originally with the HSP Grumpas and other cars but mine and my friends caught on fire after half a year. Do not buy this separately just use it when in it comes in cars until it dies just be careful though
