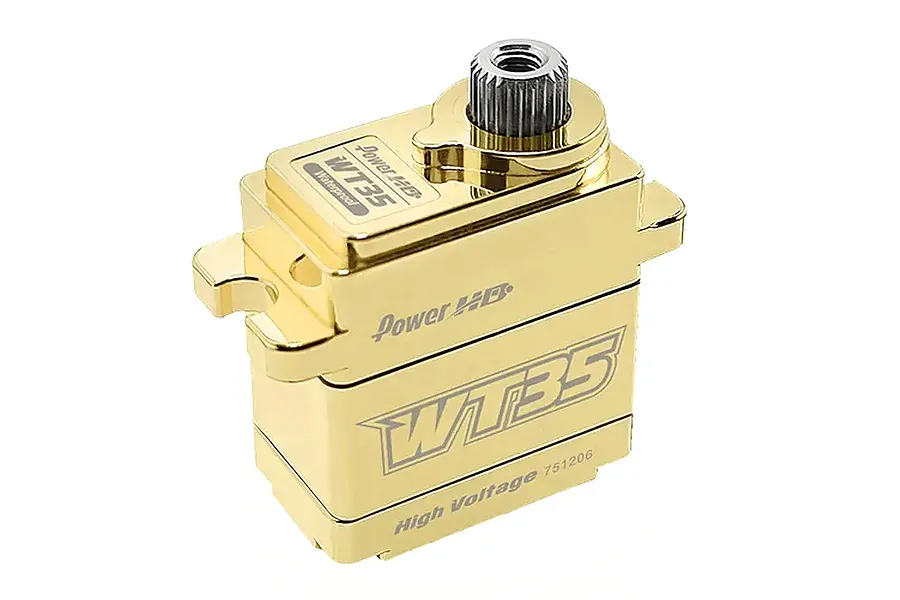

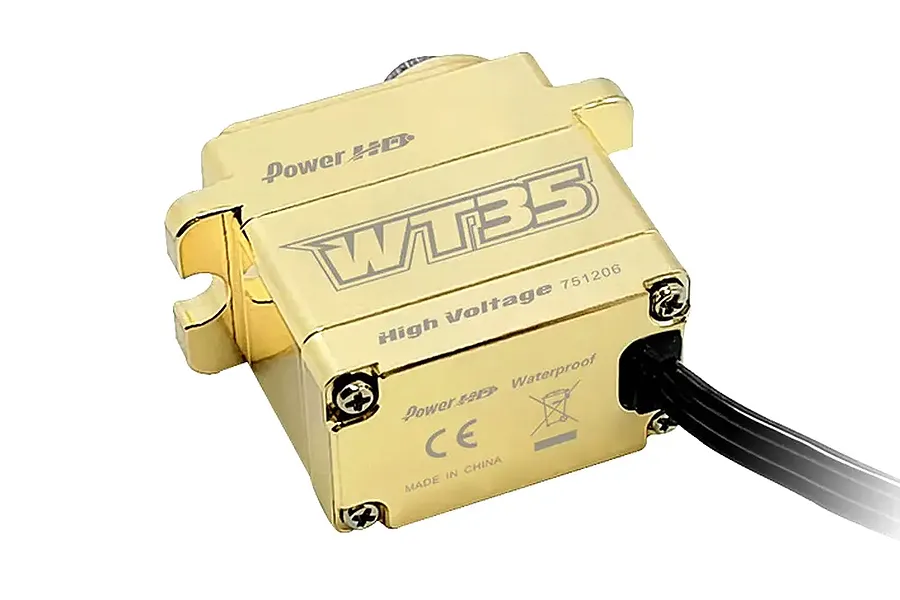

Power HD Micro Brass WT35 3.8kg 7.4V HV Waterproof Metal Geared Servo
Power HD Micro Brass WT35 3.8kg 7.4V HV Waterproof Metal Geared Servo
Brand:
Power HD
|
SKU: WT35
$74.20
Pay later with
We'll send it today
When ordered within the next
hms
Description
No description
Specifications
Servo
-
Height (A)
- 29.5mm
-
Body Length (B)
- 26mm
-
Bottom to Under Mount (C)
- 16.3mm
-
Top to Under Mount (D)
- 13.2mm
-
Length (E)
- 29.6mm
-
Width (F)
- 12.9mm
-
SizeConventionally sized servo names
- Micro
-
Gear Material
- Aluminium & Copper
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6.0V, 7.4V, 4.8V
-
4.8V Torque kg/cm
- 3
-
4.8V Sec/60 Degrees
- 0.10
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 3.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.085
-
7.4V Torque kg/cm
- 3.8
-
7.4V Sec/60 Degrees
- 0.075
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Brass
-
Rotational Degrees
- 180°
