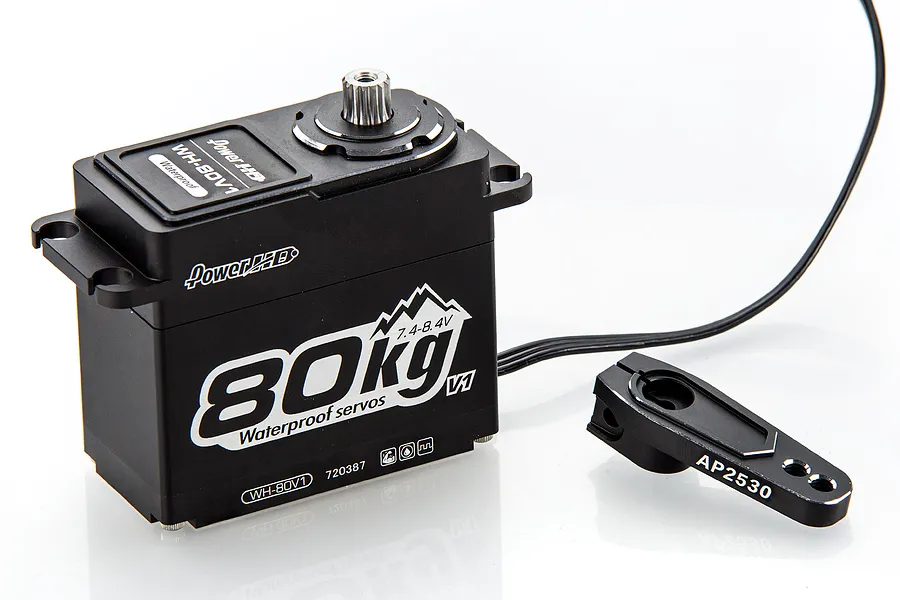

Power HD 1/5 WH-80KG 80kg Metal Geared Waterproof Servo
Power HD 1/5 WH-80KG 80kg Metal Geared Waterproof Servo
Brand:
Power HD
|
MPN: WH-80V1
$147.08
or 4 fortnightly payments of $36.77 with
Power HD 1/5 scale 80kg metal geared waterproof servo with aluminium case. 7.4–8.4V operating voltage.
- 80kg-cm torque at 8.4V
- Suitable for 1/5 scale RC cars on/off road
- Full aluminium case (upper/middle/bottom)
- Steel gears with dual ball bearings
- Waterproof construction
Pay later with
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
3 products.
See Compatibility
Description
Features
- Genuine Power HD product.
- Suitable for RC cars 1/5 scale on/off road.
- Upper/middle/bottom: Aluminium case.
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver, smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
-
Torque (7.4V)
- 75kg-cm
-
Torque (8.4V)
- 80kg-cm
-
Speed
- 0.18 sec per 60° (6V)
-
Speed
- 0.16 sec per 60° (8.4V)
-
Operating Voltage
- 7.4 ~ 8.4V DC
-
Weight
- 200g
-
Gear Type
- Steel
-
Horn Gear Spline
- 15T — ⌀7.6mm
-
Bearing Type
- Ball Bearing x2
-
Operating Temperature
- -10° ~ 50°
-
Operating Travel
- 90° (1000–2000 μsec)
-
Neutral Position
- 1500 μsec
-
Maximum Travel
- Approximately 135° (800–2200 μsec)
-
Total Height (A)
- 62.4mm
-
Body Width (B)
- 59.5mm
-
Below Mount (C)
- 41.0mm
-
Above Mount (D)
- 21.4mm
-
Total Length (E)
- 75.4mm
-
Total Width (F)
- 29.5mm
Servo
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 15Tooth
-
8.4V Torque kg/cm
- 80
-
8.4V Sec/60 Degrees
- 0.2
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
Rotational Degrees
- 90°
