Savox

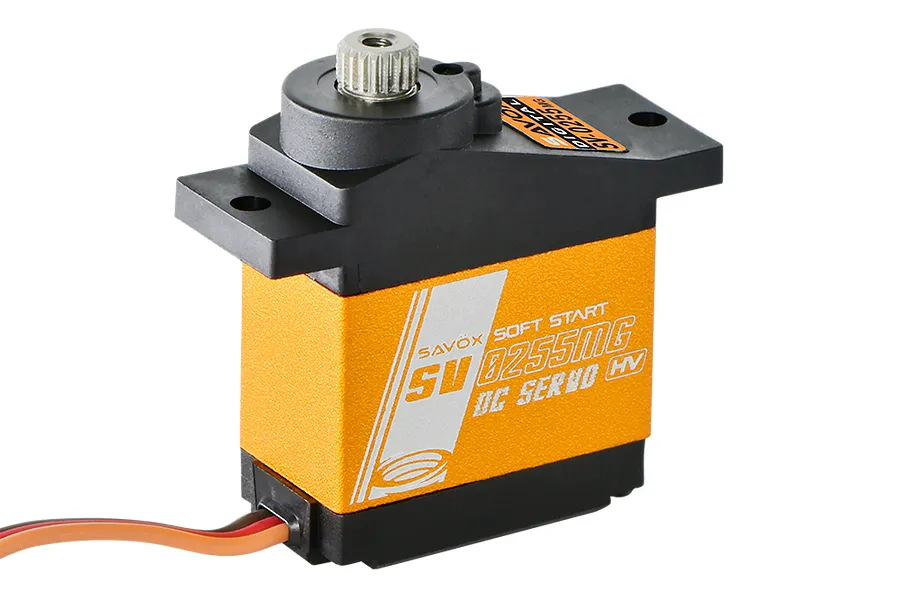

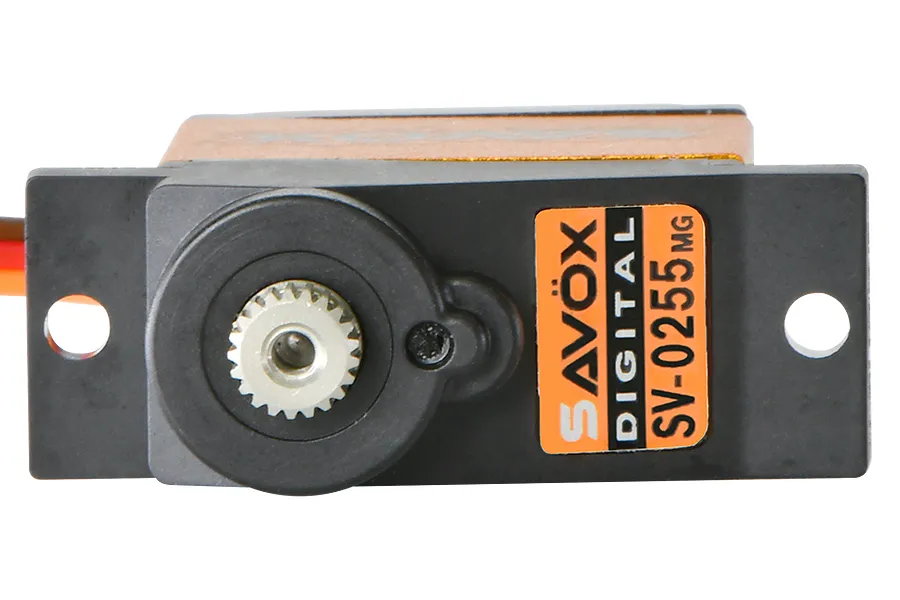

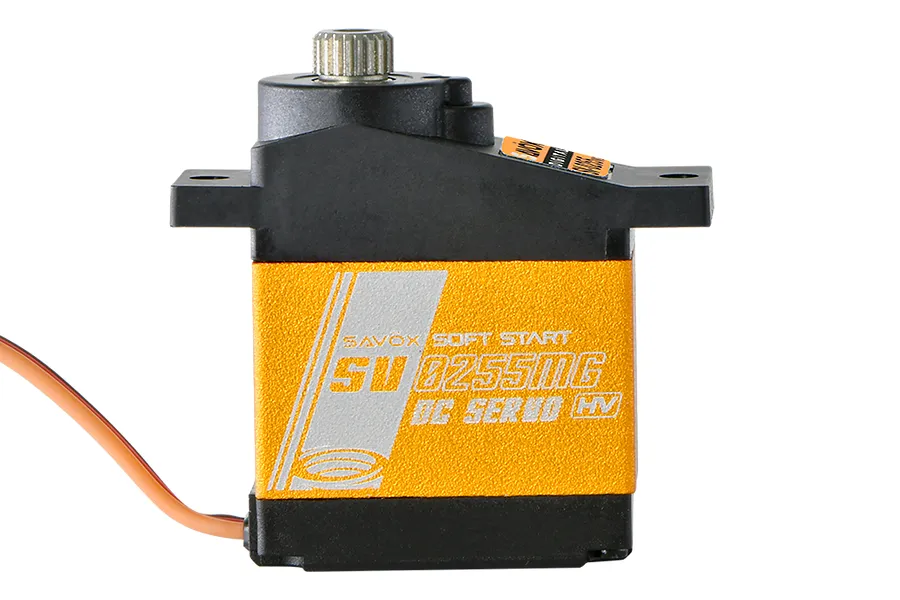

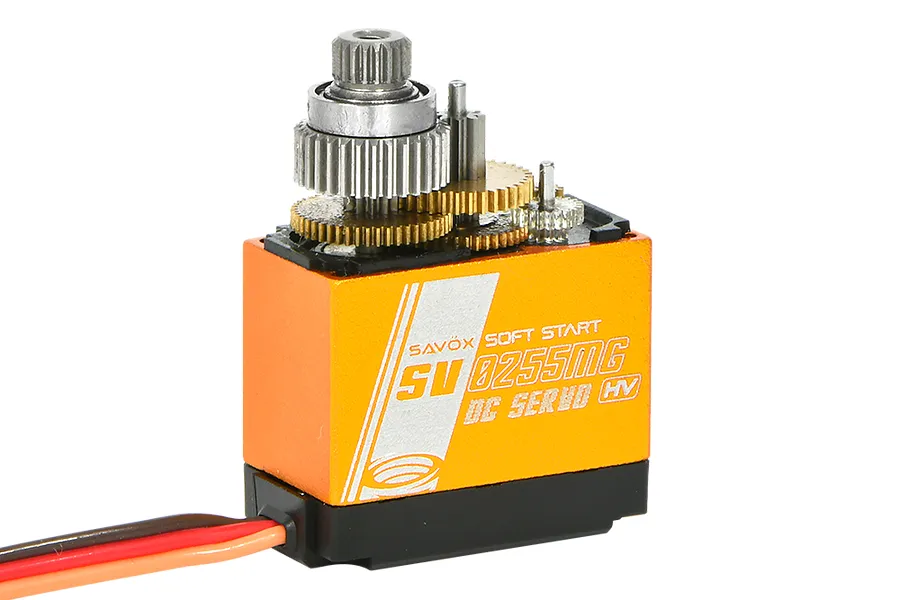

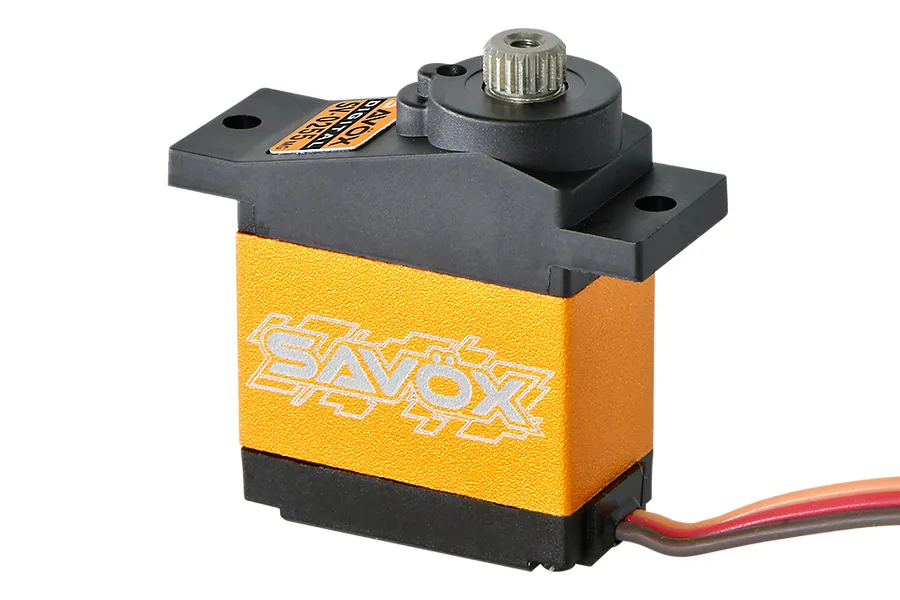

Savox SV-0255MG Micro 4.5kg 7.4V HV Metal Geared Servo

Part no. SV-0255MG

Sold outWrite a review
1 / 5
1 / 5

$48.05

or 4 fortnightly payments of $12.01 with afterpay

Ordered 3 Nov · we're waiting on our supplier

In stock now: similar

Specifications

Servo

Servo
SizeConventionally sized servo namesMicro
Gear MaterialMetal
Servo Spline Count21Tooth
Waterproof CasingNo
Input Voltage Range7.4V, 6V
Case MaterialAluminium
Height (A)32.3mm
Body Length (B)22.8mm
Bottom to Under Mount (C)29.4mm
Top to Under Mount (D)12mm
Length (E)32.4mm
Width (F)12mm
Drive Motor TypeBrushed
Rotational Degrees90°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline3.5
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.16
7.4V Torque kg/cm4.5
7.4V Sec/60 Degrees0.13
Signal TypeDigital
