Hitec

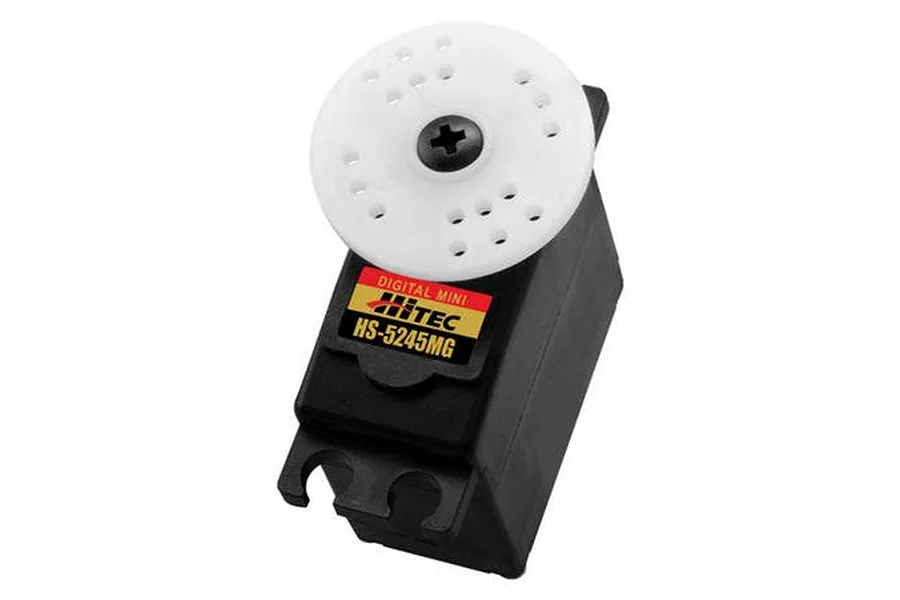

Hitec HS-5245MG Mini 4.4kg Metal Geared Servo

Part no. HRC35245S

1 in stockNo reviews yet
1 / 2
1 / 2

$102.41

or 4 fortnightly payments of $25.60 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Order in 8h 14m, dispatched today

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

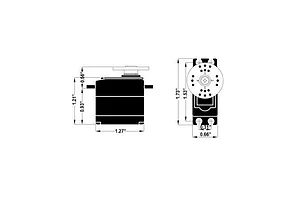

Specifications

Total Height (A)37.5mm
Body Width (B)32.2mm
Below Mount (C)24mm
Above Mount (D)13.5mm
Total Length (E)44mm
Total Width (F)16.7mm

Servo

Servo
SizeConventionally sized servo namesMini
Gear MaterialMetal
Servo Spline Count24Tooth
Waterproof CasingNo
Case MaterialPlastic
Height (A)37.5mm
Body Length (B)32.2mm
Bottom to Under Mount (C)24mm
Top to Under Mount (D)13.5mm
Length (E)44mm
Width (F)16.7mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline4.4
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.15
Signal TypeDigital
