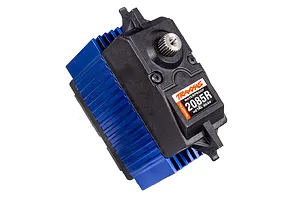

Traxxas Blue Aluminium High-Torque Standard 45kg 7.4V Metal Gear Servo

Videos

Traxxas Blue Aluminium High-Torque Standard 45kg 7.4V Metal Gear Servo

Brand: Traxxas | SKU: 2085R

1 in stock

write a review

$297.71

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Loading compatibility information...

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The High Torque Maxx Servo packs a punch with 45 kg of pure torque. With unyielding full steel gears, able to turn even the monster truck tyres of your X-Maxx, XRT, or Maxx with no issues. Its precision lies in the anodised aluminium heart, equipped with cooling fins and ball bearings for unwavering control. Fortified with a stiffer servo saver spring and steel steering linkage, this beast ensures precise, high-speed manoeuvres with every grip.

Features

Designed to bolt straight into X-Maxx, XRT, and Maxx trucks
Fully waterproof design
Compatible with Traxxas stability management

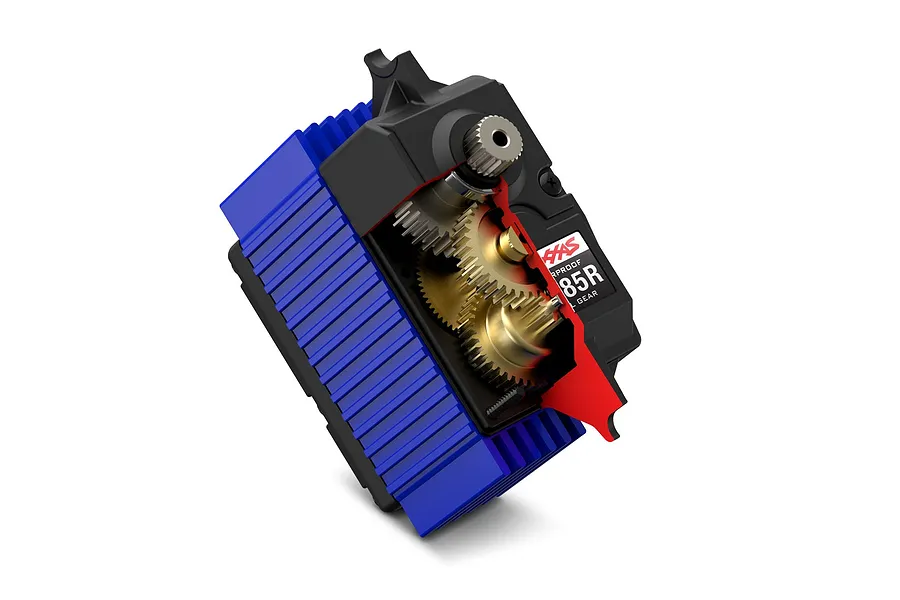

Equipped with full steel gears for maximum durability
Equipped with Ball bearings for minimal friction
Aluminium centre case provides a durable centre and keeps the servo cool

Video

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Servo Dimensions

Total Height (A) = N/A
Body Width (B) = N/A
Below Mount (C) = N/A
Above Mount (D) = N/A
Total Length (E) = N/A
Total Width (F) = N/A

Specifications

Torque(6V): 45 kg-cm (650 oz-in)
Speed: 0.13sec (6V)
Operating Voltage: 6V
Weight: N/A

Bearing Type: Ball Bearing
Motor Type: N/A
Operating Temperature:N/A
Refresh Rate: N/A
Size: N/A

Included items

Description	QTY
Traxxas Black Aluminium High-Torque Standard 45 kg 7.4V Metal Gear Servo	1

Specifications

Servo

Servo Spline Count: Tooth
11V Sec/60 Degrees
Drive Motor Type: Brushed
4.8V Sec/60 Degrees
11V Torque kg/cm
7.4V Sec/60 Degrees
Input Voltage Range: 6.0V, 7.4V
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.13
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 46
Gear Material: Metal
Waterproof Casing: Yes
7.4V Torque kg/cm
Total Height: mm
8.4V Torque kg/cm
Body Length: mm
8.4V Sec/60 Degrees
Bottom to Under Mount: mm
Top to Under Mount: mm
4.8V Torque kg/cm
Total Length: mm
12V Torque kg/cm
Total Width: mm
12V Sec/60 Degrees
Size Conventionally sized servo names: Standard
