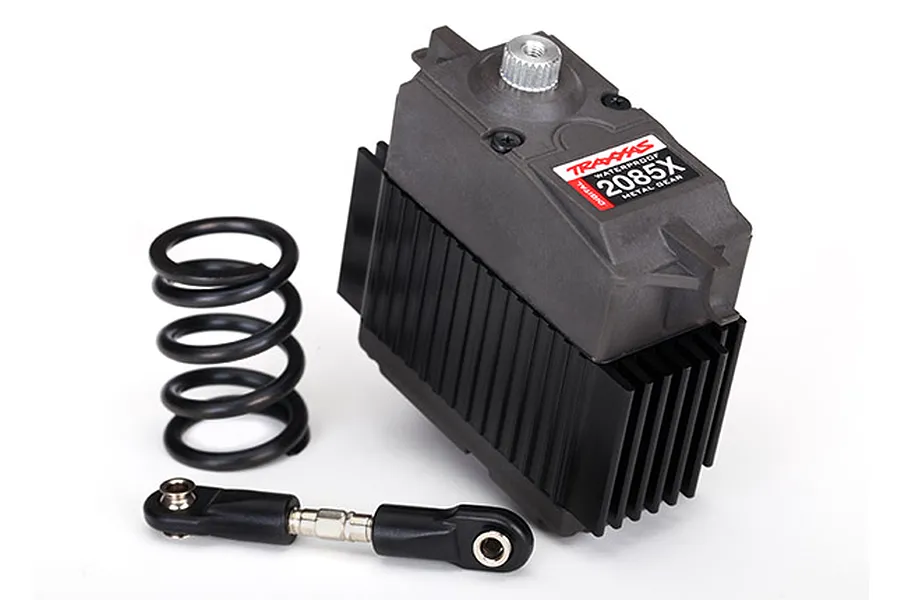

Traxxas 1/5 32.3kg Waterproof Servo
Traxxas 1/5 32.3kg Waterproof Servo
Brand:
Traxxas
|
MPN: 2085X
No longer made. In stock now: similar
Shop replacement & upgrade parts for this model
Shop Parts
Compatible with
10 products.
See Compatibility
Alternative Products
Related Products
Description
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
-
Total Height (A)
- 63mm
-
Body Width (B)
- 60.5mm
-
Below Mount (C)
- 47mm
-
Above Mount (D)
- 16mm
-
Total Length (E)
- 68mm
-
Total Width (F)
- 25.7mm
Servo
-
SizeConventionally sized servo names
- 1/5
-
Waterproof Casing
- Yes
-
Case Material
- Plastic
-
Height (A)
- 63mm
-
Body Length (B)
- 60.5mm
-
Bottom to Under Mount (C)
- 47mm
-
Top to Under Mount (D)
- 16mm
-
Length (E)
- 68mm
-
Width (F)
- 25.7mm
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 32.3
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.17
-
Signal Type
- Digital
Parts
Same as the original part from the manufacturer.
1 review
$19.35
Alternatives
Shop Parts
Shop replacement & upgrade parts for this model.
Reviews
(1)
5 out of 5 stars
8 years ago
Fung
C
The 2085x servo is much much better than the standard the 8S xmaxx comes with(the 2085), it's both faster and much more resistant to overheating than the standard servo.
Where the standard servo overheated 2 out of 4 times I took it out, then died, the 2085x has performed flawlessly.
It also sounds badass due to the metal gears.
