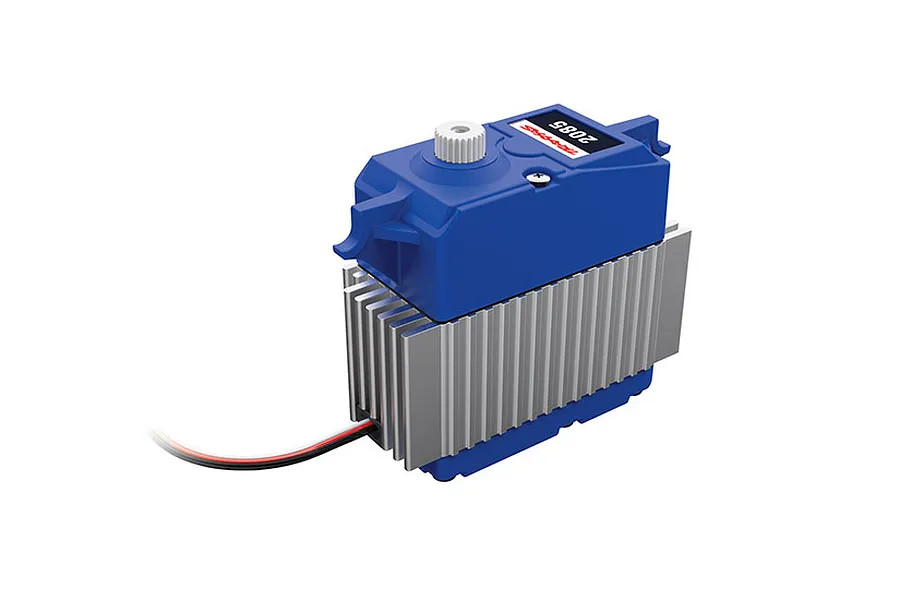

Traxxas 1/5 26.3kg Waterproof Servo

Brand: Traxxas | SKU: 2085

discontinued

write a review

Shop replacement & upgrade parts for this model

Shop Parts

Loading compatibility information...

Alternative Products

Traxxas Blue Aluminium High-Torque Standard 45kg 7.4V Metal Gear Servo

0 reviews

$297.71

Traxxas Maxx Ultra-High-Torque 1/8 46kg 6V Waterproof Metal Geared Servo - Blue

0 reviews

$279.79

Traxxas 1/5 32.3kg Waterproof Servo

1 review

$243.24

pending availability

Servo, digital high-torque, metal gear (ball bearing), waterproof/ servo saver spring/ steering link

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

TRA-2085 Servo Specifications

Total Height (A) = 63mm
Body Width (B) = 60.5mm
Below Mount (C) = 47mm
Above Mount (D) = 16mm
Total Length (E) = 68mm
Total Width (F) = 25.7mm

Servo, digital high-torque (ball bearing), waterproof (X-Maxx®/Maxx® mount)

Specifications

Servo

Total Length: 68mm
Total Width: 25.7mm
Bottom to Under Mount: 47mm
Top to Under Mount: 16mm
Total Height: 63mm
Body Length: 60.5mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.17
Case Material: Plastic
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 26.28
Waterproof Casing: Yes
Size Conventionally sized servo names: 1/5
