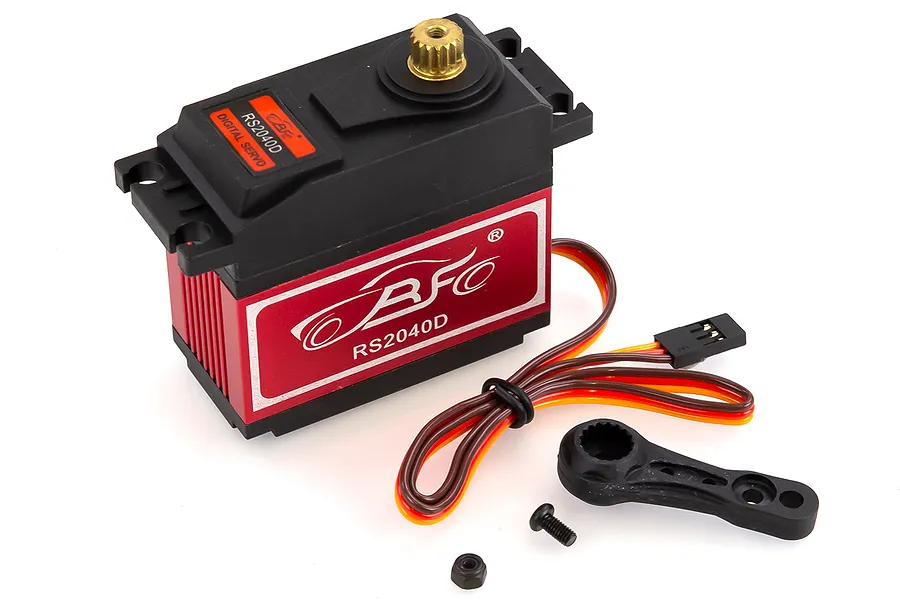

Rovan 1/5 40kg Metal Geared Servo
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
ROV-63016 Servo Specifications
- Total Height (A) = 61mm
- Body Width (B) = 59mm
- Below Mount (C) = 41mm
- Above Mount (D) = 20mm
- Total Length (E) = 75.5mm
- Total Width (F) = 29mm
Specifications
Servo
-
Total Width
- 29mm
-
Top to Under Mount
- 20mm
-
Total Length
- 75.5mm
-
Body Length
- 59mm
-
Bottom to Under Mount
- 41mm
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.18
-
Total Height
- 61mm
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
-
Signal Type
- Digital
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 40
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
SizeConventionally sized servo names
- 1/5
