Hitec

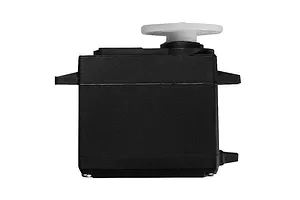

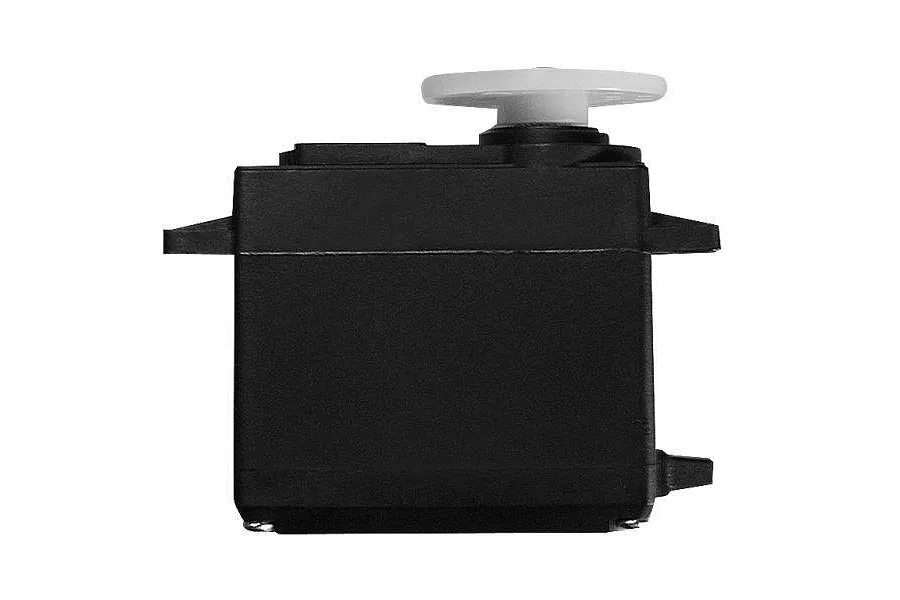

Hitec 1/5 20kg 7.4v Metal Geared Servo

  • 1/5

Part no. HRC35765S

1 in stockNo reviews yet
1 / 4
1 / 4

$153.22

or 4 fortnightly payments of $38.30 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Will it fit?

Check fit: add your vehicle to My GarageFits 4 vehicles

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

HIT-HS-5765MH Servo Specifications
Total Height (A)60.3mm
Body Width (B)59.1mm
Below Mount (C)39mm
Above Mount (D)21.3mm
Total Length (E)75.4mm
Total Width (F)29mm
Weight60g (2.11oz)

Servo

Servo
SizeConventionally sized servo names1/5
Gear MaterialMetal
Waterproof CasingNo
Case MaterialMetal
Height (A)60.3mm
Body Length (B)59.1mm
Bottom to Under Mount (C)39mm
Top to Under Mount (D)21.3mm
Length (E)75.4mm
Width (F)29mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline20
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.16
Signal TypeDigital

Compatibility

Fits 1 Losi model
