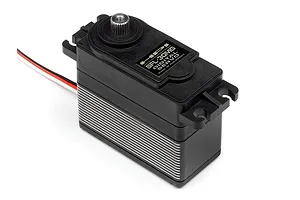

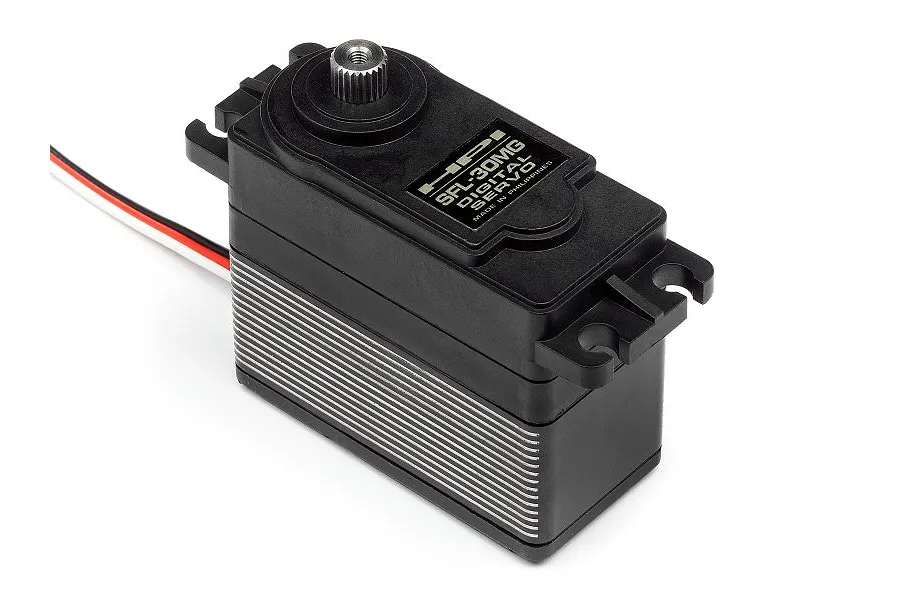

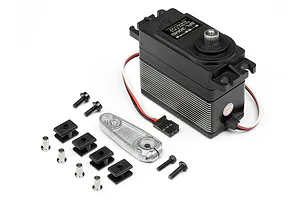

HPI 1/5th SFL-30MG 18kg Metal Geared Servo
HPI 1/5th SFL-30MG 18kg Metal Geared Servo
Brand:
HPI Racing
|
SKU: 102612
$252.34
Pay later with
Want more than 1?
We'll send it today
When ordered within the next
hms
Shop replacement & upgrade parts for this model
Shop Parts
Loading compatibility information...
Description
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
HPI-102612 Servo Specifications- Total Height (A) = 60mm
- Body Width (B) = 59mm
- Below Mount (C) = 39mm
- Above Mount (D) = 18mm
- Total Length (E) = 76mm
- Total Width (F) = 28mm
Specifications
Servo
-
Total Width
- 28mm
-
Top to Under Mount
- 18mm
-
Total Length
- 76mm
-
Body Length
- 59mm
-
Bottom to Under Mount
- 39mm
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
Total Height
- 60mm
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 18
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Drive Motor Type
- Brushed
-
SizeConventionally sized servo names
- 1/5
