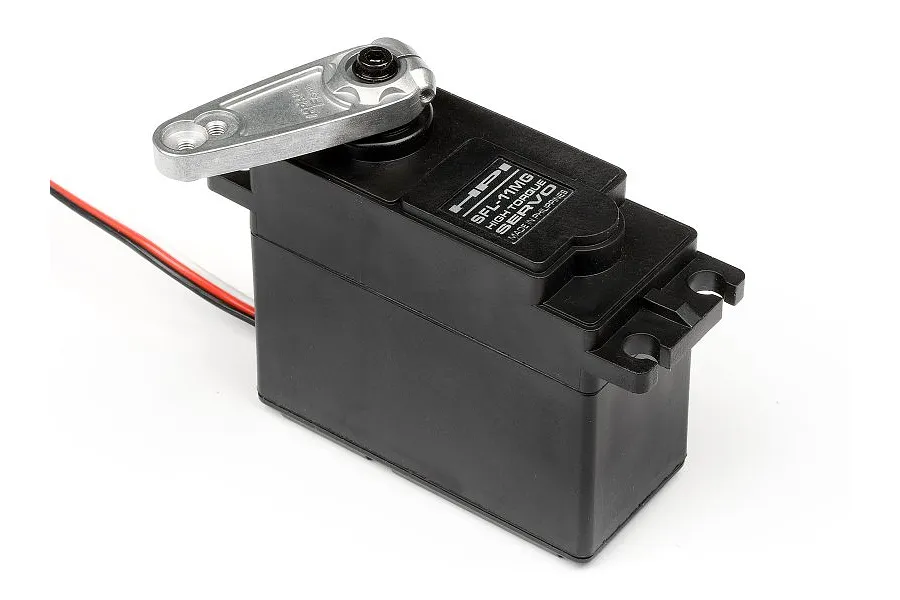

Name: HPI 1/5th SFL-11MG 24.7kg Metal Geared Servo
Brand: HPI Racing
SKU: HPI-102772
Price: 244.49 AUD
Availability: OutOfStock
Rating: 5 (1 reviews)

Overview

Note

Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brownouts where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. In some cases, you may need to install an external BEC.

Specifications

Part	HPI-102772
Total Height (A)	64mm
Body Width (B)	66mm
Below Mount (C)	44mm
Above Mount (D)	20mm
Total Length (E)	83mm
Total Width (F)	30mm

Servo

SizeConventionally sized servo names	1/5
Gear Material	Metal
Waterproof Casing	No
Case Material	Metal
Height (A)	64mm
Body Length (B)	66mm
Bottom to Under Mount (C)	44mm
Top to Under Mount (D)	20mm
Length (E)	83mm
Width (F)	30mm
Drive Motor Type	Brushed
Rotational Degrees	120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline	24.7
