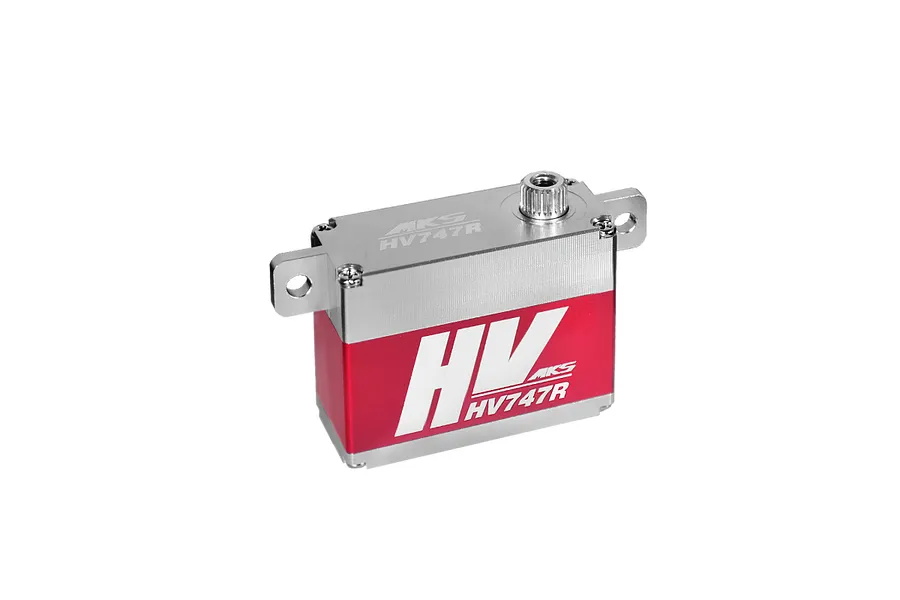

MKS Red/Silver Aluminium HV747R Low Profile 15kg 8.4V Coreless Metal Geared Servo

Part no. S0022011

2 in stockWrite a review

Now $134.24was $178.99 You Save 25%

Sale now on

or 4 fortnightly payments of $33.56 with afterpay

Pay later with afterpay zip PayPal

  • 2 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

Don't sacrifice power for size! The MKS Red/Silver Aluminium HV747R (S0022011) combines extreme torque and blistering speeds with a space-saving, low-profile design. Experience its robust all-metal construction in the most challenging projects.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Massive torque output in a low-profile design
  • Responsive with lightning-fast speeds
  • Robust all-aluminium construction for demanding use
  • High performance coreless motor paired with robust metal gears
  • High voltage operation (6.0V - 8.2V)
  • Genuine MKS Product

In the box

  • 1x MKS Red/Silver Aluminium S0022011 15kg 8.4V Low Profile Coreless Metal Geared Servo

Specifications

Torque (6.0V)11.8 kg-cm / 163.9 oz-in
Torque (7.4V)13.8 kg-cm / 191.6 oz-in
Torque (8.2V)15 kg-cm / 208.3 oz-in
Speed0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)
Weight40.07 g (1.41 oz)
Operating Voltage6.0V ~ 8.2V DC
Bearing TypeN/A
Motor TypeCoreless Motor
Operating TemperatureN/A
Refresh RateN/A
Total Height (A)32.75 mm
Body Width (B)35.5 mm
Below Mount (C)20.6 mm
Above Mount (D)12.15 mm
Total Length (E)48.7 mm
Total Width (F)15 mm

Servo

Servo
SizeConventionally sized servo namesLow Profile
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialAluminium
Height (A)32.75mm
Body Length (B)35.5mm
Bottom to Under Mount (C)20.6mm
Top to Under Mount (D)12.15mm
Length (E)48.7mm
Width (F)15mm
Drive Motor TypeCoreless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline11.8
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.17
7.4V Torque kg/cm13.8
7.4V Sec/60 Degrees0.14
8.4V Torque kg/cm15
8.4V Sec/60 Degrees0.13
Signal TypeDigital
