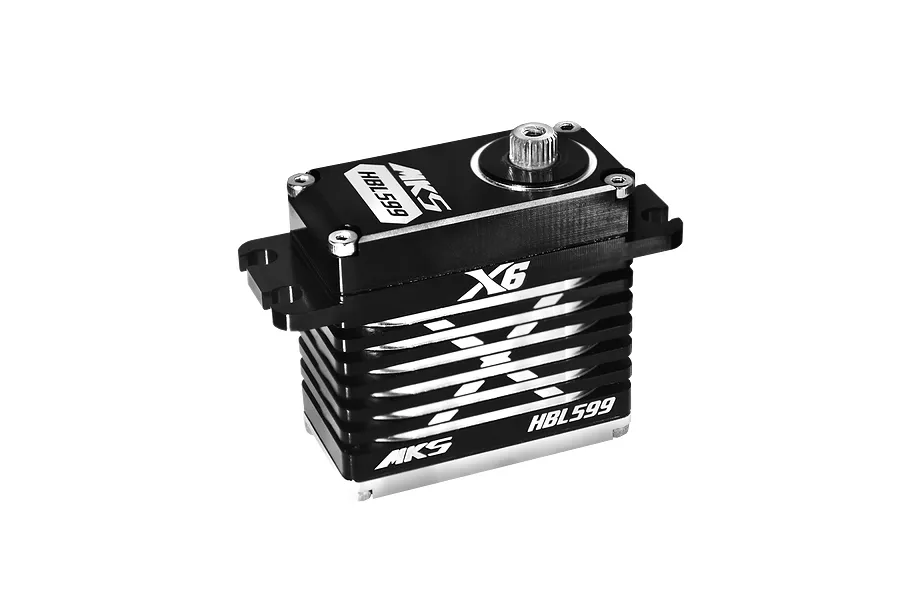

MKS X6 HBL599 Standard 42kg 8.2V Metal Geared Servo - Black
MKS X6 HBL599 Standard 42kg 8.2V Metal Geared Servo - Black
Brand:
MKS
|
SKU: S0026002
$196.13
Add to Wishlist
Description
No description
Specifications

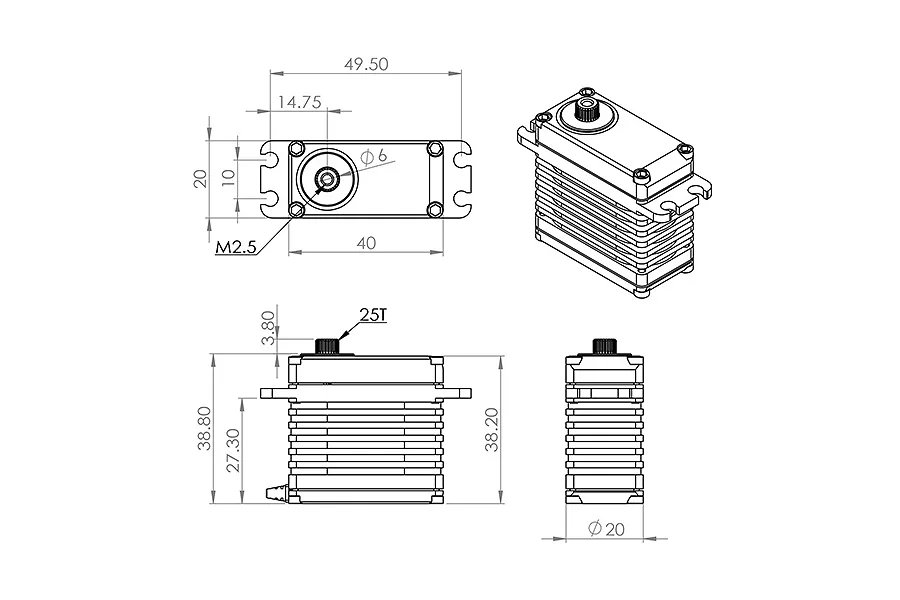

Servo
-
Height (A)
- 38.8mm
-
Body Length (B)
- 40mm
-
Bottom to Under Mount (C)
- 27.3mm
-
Top to Under Mount (D)
- 3.8mm
-
Length (E)
- 49.5mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V, 8.2V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 30
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.11
-
7.4V Torque kg/cm
- 38
-
7.4V Sec/60 Degrees
- 0.09
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
