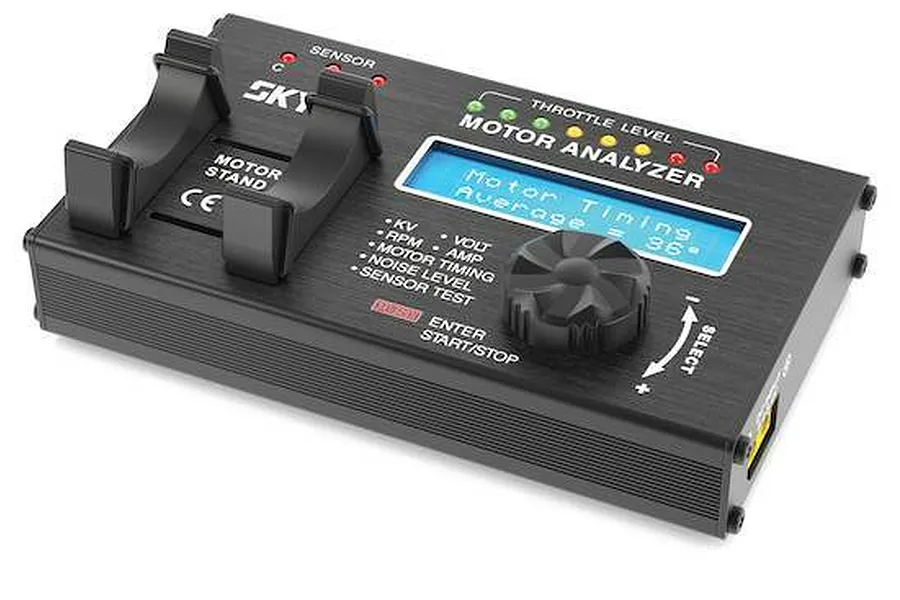

SKYRC Brushless Motor Analyzer

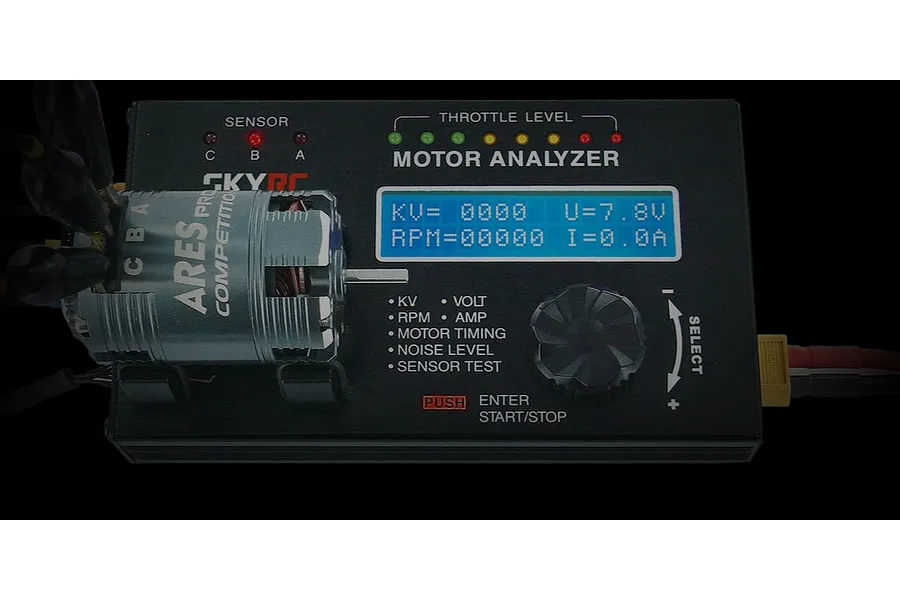

SKYRC motor analyzer is a precision electronic device that is specially designed for measuring the KV value, RPM, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.

KV Measurement.

Voltage Measurement.

RPM Measurement.

Amperage Measurement.

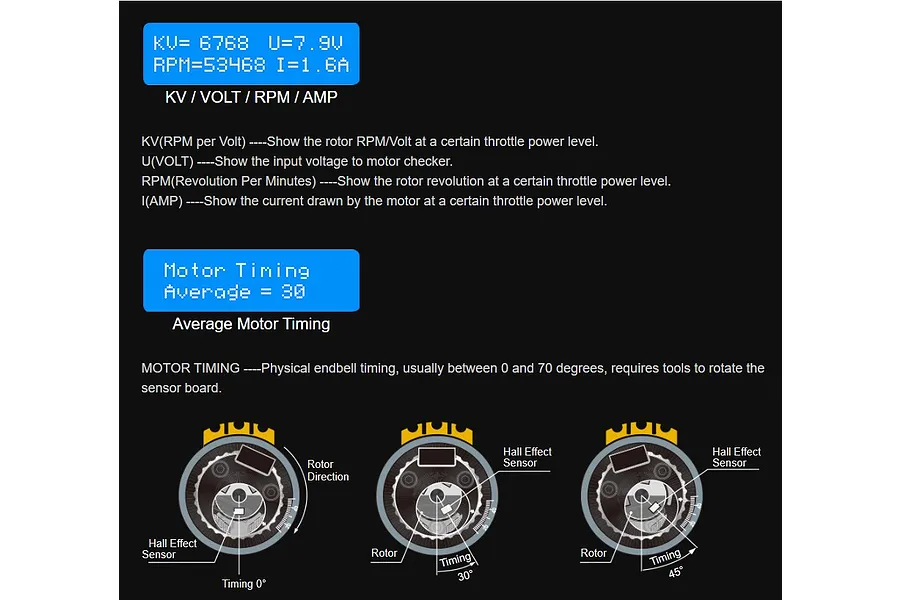

Motor Timing Checking.

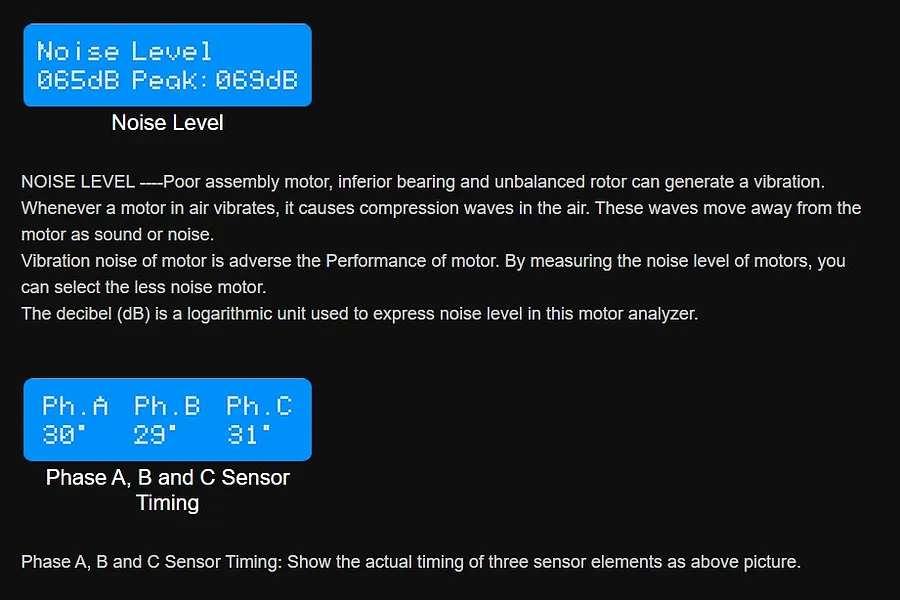

Noise Level.

Hall Effect Sensor Test

• Net Weight: 282gram (Without Cabel).
• Input Voltage: 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
• LCD Display Screen: Blue Backlight Background, White Text, 16 Characters X 2 Lines
• KV Value Accuracy: +/- 3%
• Motor Timing Accuracy: +/- 4%
• Motor Timing Range: 0-70°
• Noise Level Measurement Range: 60dB - 120dB
• Suppored Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)

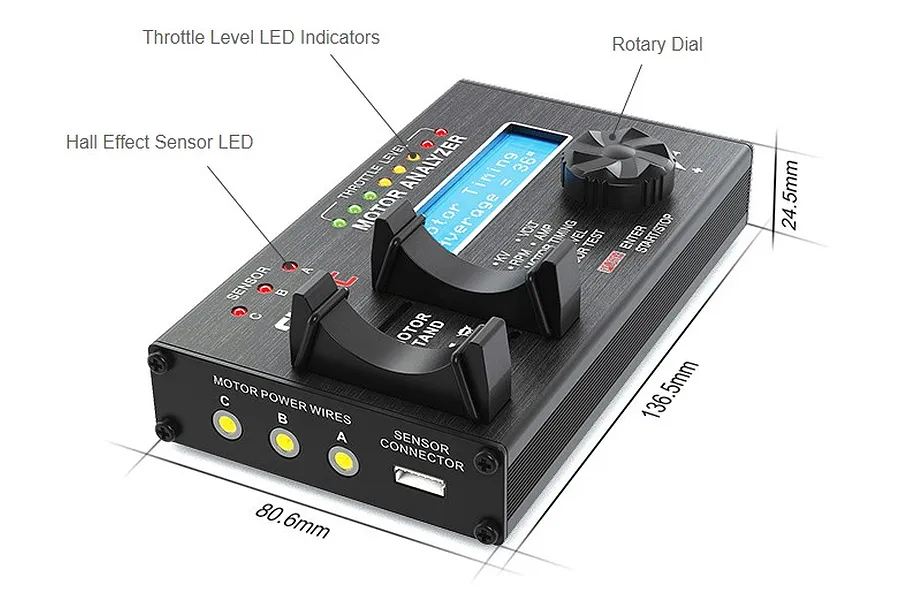

• Size: L=80.6xW=136.5xH=24.5mm

• 7.4V 2S 1P LiPo Battery.
• Brushless Motor.
