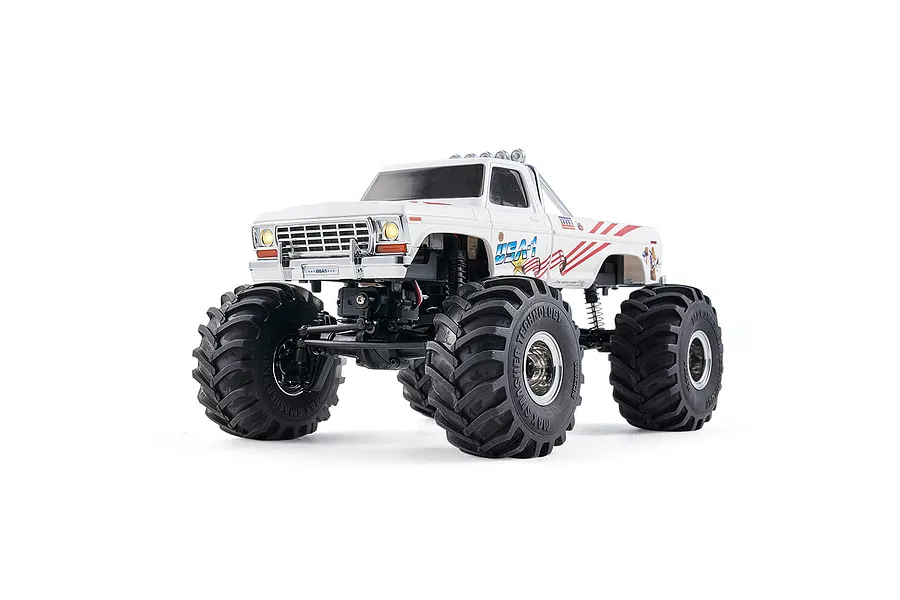

The FMS 1/24 Bigfoot Smasher adopts the FCX24 chassis, with the body shell of a first-generation American pickup truck with large-hollow tyres, for improved shock-absorption. Straight axle parts without differentials are also provided and when installed, the drivetrain is modified to improve low-speed crawling performance. It is also possible to retain the front-axle differential while using the straight-axle on the rear of the vehicle. Allowing a mix of high-speed performance and low-speed crawling.

Two-Speed Transmission Leaves Rivals In The Dust

The high-torque, low-speed output is designed for extreme climbing; Max speed of 8km/h allows you to get straight to the action

68mm Monster Truck Tyres

The bigger the tyres, the better the handling in all conditions. The large tyres provide unparalleled crawling ability. With sufficient power, two-wheel driving, jumping and even somersaults can be easily performed

Portal Axle

The portal axle is a major feature of the FCX24. With huge tyres, the ground clearance of the chassis is further increased, and the vehicle's handling is further enhanced

Front & Rear Axle Planetary Gear Differentials

The front and rear axles are equipped with planetary gear differentials by default, which is conducive to high-speed off-road driving, posture simulation and outstanding cornering performance

Metal Geared Steering Servo

Durable waterproof metal gear steering servo allows you to control the steering with precision

24 Ball Bearings Pre-Installed

FCX24 is pre-installed with 24 ball bearings, providing higher performance, longer lifespan and reduced power loss resulting in longer run times

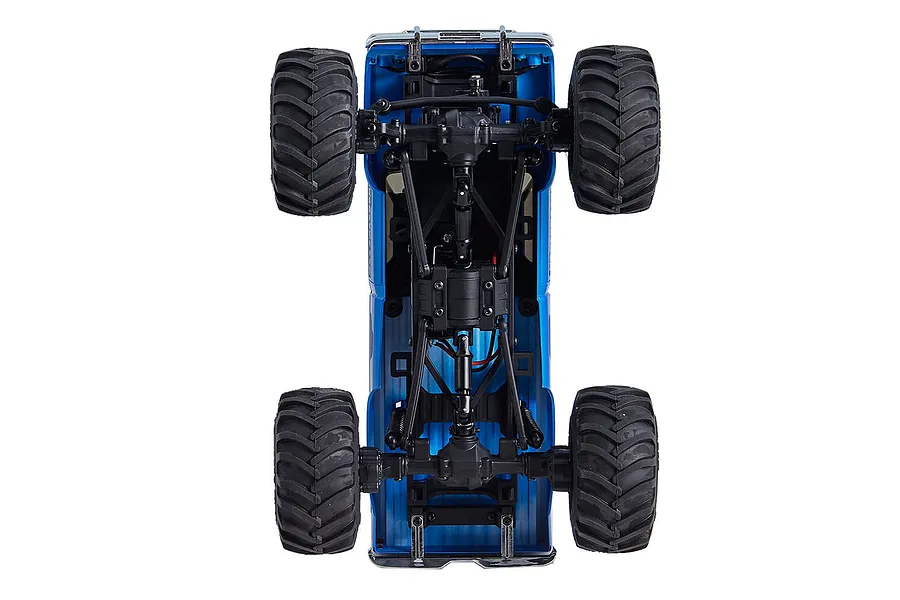

Four-Link Suspension

The front and rear of the FCX24 is equipped with a compact 4-Link suspension system, improving the stability and articulation required for extreme rock crawling

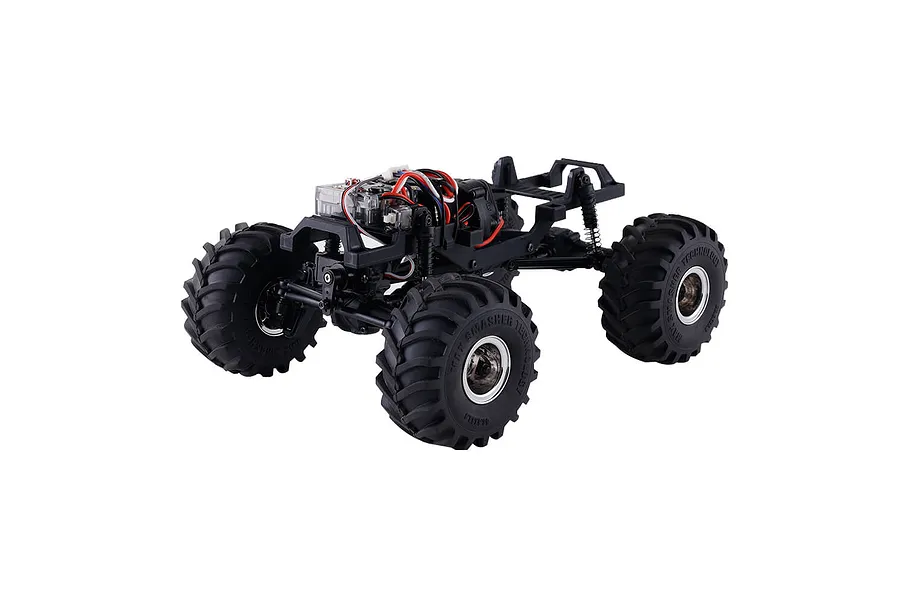

Integrated Nylon Frame

The FCX24's frame is made of high-strength nylon rather than metal and plastic, allowing for a lower centre of gravity, lighter weight and greater strength than traditional models

Rapid Separation Car Body

The FCX24's hard plastic body can be separated from the frame with just the squeeze of a couple of clips, making it easy to maintain, make technical adjustments, install performance upgrades and clean

Remote Control Lighting System

Intelligent lighting control module allows the headlights to switch between high and low beam modes, making it possible to light up the trail day or night

130 Brushed Motor

Driven by the sheer power of the 130 motor, the Monster Truck can raise its head and tilt its tail

Original Personalised Stickers

Style your own Monster Truck with our personalised sticker options

Features

• Metal Universal CVD Driveshafts

• Two speed transmission (controlled by the third channel)

• Front and rear axle planetary gear differentials

• Ball bearings full set

• Remote control lighting system

• Portal axle

• Metal geared steering servo

• Four-link suspension

• High strength integrated nylon frame

• Rapid separation car body

• Painted body

• Original personalised stickers

• Plated scaled details

• 2.4GHz radio

Specifications

• Length: 227mm (8.93in)

• Width: 156mm (6.14in)

• Height: 127mm (5.0in)

• Wheelbase: 139mm (5.47in)

• Ground Clearance: 44mm (1.73in)

• Tyre F/R: ?68x34mm (?2.67x1.33in)

• Weight: 442g (15.5oz) w/o Battery

• Reduction Ratio: 24.75 (High), 99 (Low)

• Motor: 130 Brushed Motor

• Battery: 7.4v 380mAh 2S LiPo

• Remote Control Distance: 30m

• Run-Time: 20mins Approx.

Included items

Description	QTY
1/24 Smasher RTR Monster Truck	1
2.4G Transmitter	1
3-in-1 Receiver	1
130 Brushed Motor	1
Metal Geared Steering Servo	1
Plastic Digital Servo	1
7.4V 380mAh Battery	1
USB Battery Charger	1
Hex Wrench Socket	1
Product Manual	1

Required Items

• 4 x AAA Batteries
