Futaba 10J 2.4Ghz 10ch Radio w/ R3008SB Receiver - Mode 2

Brand: Futaba | SKU: FUT10JR3008SBM2
2 in stock

$508.30

Description

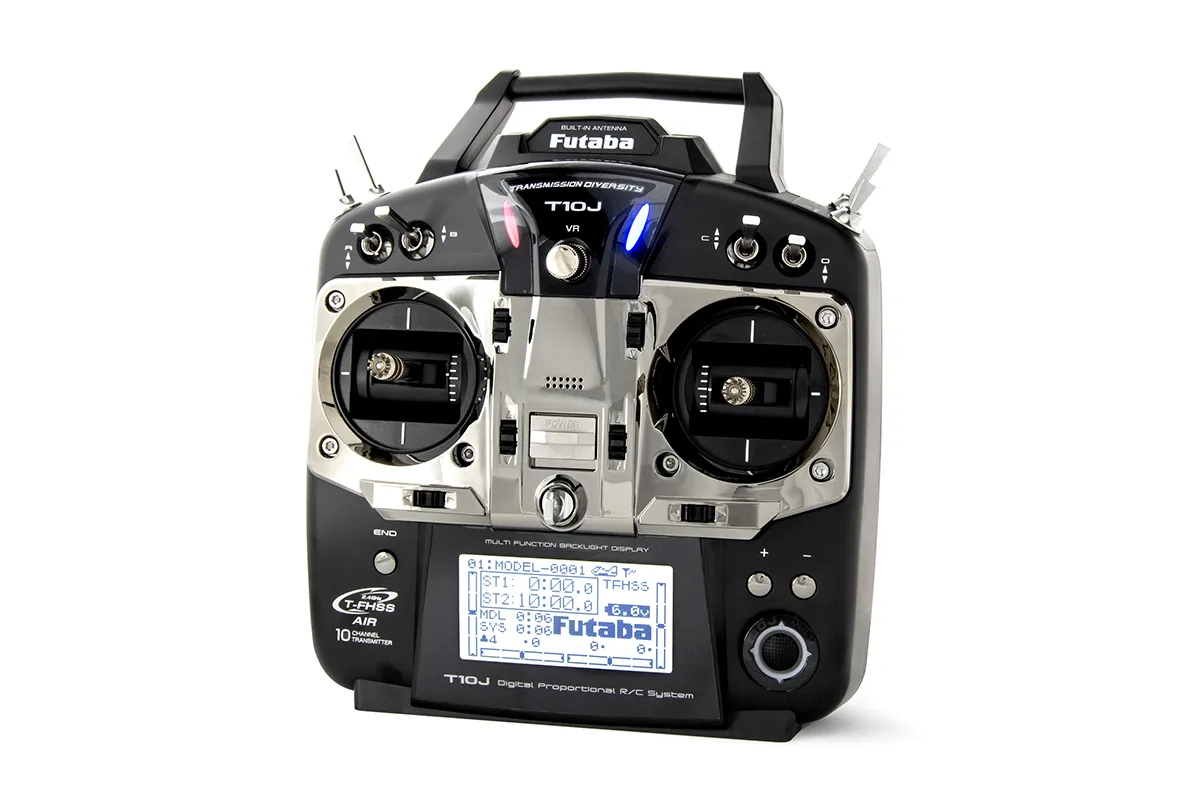

10J Transmitter – 10-Channel Digital Proportional RC System


Features

T-FHSS AIR 2.4 GHZ MULTI-FUNCTION 10-CHANNEL TRANSMITTER:
The Futaba 2.4 GHz T-FHSS Air system is employed.

TELEMETRY SYSTEM:
A T-FHSS Air bidirectional communication system is used. The voltage of the battery mounted in the fuselage can be displayed at the transmitter during flight. Altitude, speed, temperature, and other fuselage data can be displayed at the transmitter by installing various optional telemetry sensors in the fuselage.

SPEECH FUNCTION:
Telemetry data can be listened to by plugging commercial earphones into transmitter.

BUILT-IN DIVERSITY ANTENNA:
Diversity antenna built into the transmitter provides a simple appearance and improves handling ease.

S.BUS/S.BUS2 SYSTEM:
S.Bus/S.Bus2 Servo channel and various functions can be set by connecting the servo to the transmitter.

POWER-SAVING TYPE TRANSMITTER:
Four AA alkaline batteries can be used. The optional HT5F1800B (NiMH 6.0 V, 1800 mAh) or FT2F2100BV2 (lithium-ferrite 6.6 V, 2100 mA) battery can also be used.

VIBRATION:
A function that alerts the operator of various alarms by vibrating the transmitter can be selected.

UNIQUE MODEL MEMORY SYSTEM:
The transmitter body contains a 30 model memory.

MIXING TYPE SELECTION:
Fixed wing, helicopter, and glider mixing type can be selected to match the fuselage. In addition, 8 swash plate types can also be selected for helicopters. Multi-copter selection is also possible.

DIGITAL TRIM:
Rapid trimming during flight is possible. The sound changes at the center of trim. The step size can be arbitrarily changed. The trim position is displayed on the LCD.

LEVER HEAD LENGTH ADJUSTMENT AND THE NEW LEVER HEAD SHAPE:
The lever head length can be adjusted. A new lever head shape that reduces slip during operation has been adopted.

SWITCH/VR POSITION CHANGE AND AUX CHANNEL FUNCTION CHANGE:
Mixing and other switches and knobs can be selected. Since the function of the AUX channels (5 ch ~ 10 ch) can also be changed, original mixing, in addition to existing mixing, can be created by using the programmable mixing function.

MODEL DATA TRANSFER FUNCTION:
Model data can be wirelessly transferred between 10J or 8J transmitters.

COMPATIBLE RECEIVERS:
T-FHSS Air (Default): R3001SB, R3004SB, R3006SB, R3008SB
S-FHSS (Change is possible): R2001SB, R2008SB, R2006GF, R2106GF


Specifications

Transmitter

TRANSMITTER FREQUENCY:
2.4 GHz band

SYSTEM:
T-FHSS Air, S-FHSS, switchable

POWER SUPPLY:
6.0 V Dry Battery

FREQUENCY BAND:
2.4 GHz

RF POWER OUTPUT:
100mW EIRP

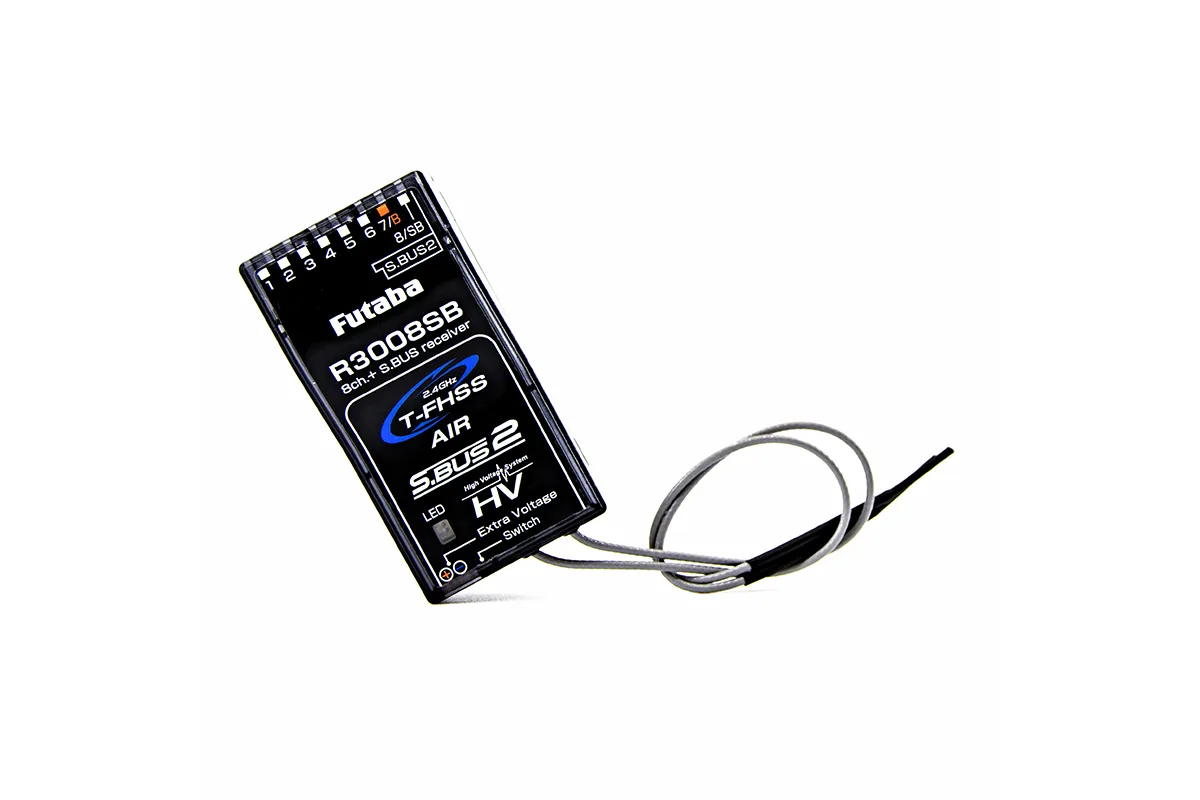

Receiver

  • T-FHSS Air system is S.Bus compatible
  • EXT Battery Terminal
  • Battery Fail Safe Function

SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in

WEIGHT:
10.1 g

RATED VOLTAGE:
DC 4.8~7.4V

OPERATING VOLTAGE:
DC 4.0~8.4V


Included items
  • T10J Transmitter
    • Air Version includes ratcheting throttle
    •  Helicopter Version includes smooth throttle
  • R3008SB Receiver
  • Switch Harness
  • Neck Strap
Specifications
Transmitter
Channels: 10Ch
Operating Frequency: 2.4Ghz
Layout: Stick
Mode: 2
Telemetry Capable: Yes
Programmable Failsafe: Yes
