Hobbywing

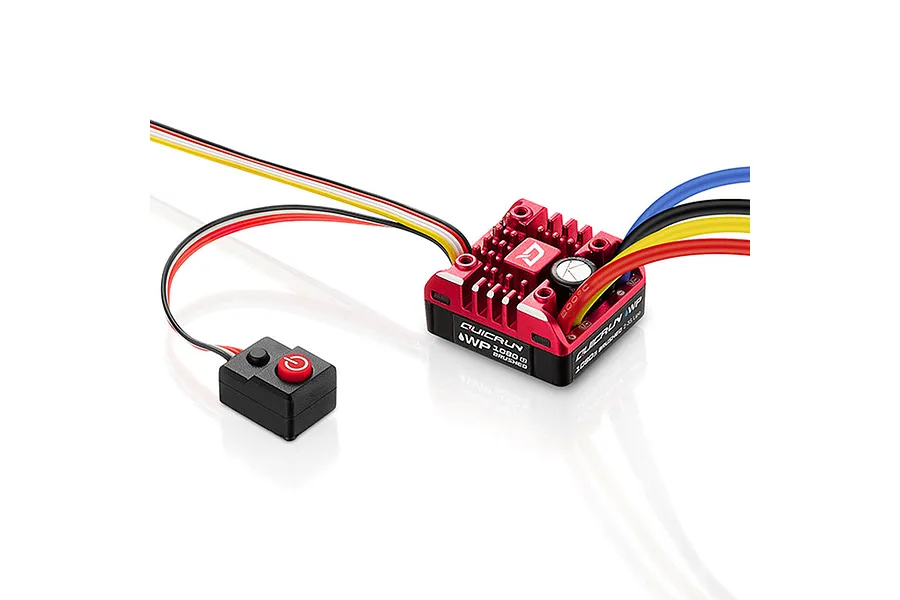

Hobbywing Quicrun G2 WP-1080 Waterproof Brushed ESC

  • Brushed

Part no. 30120202

Sold outDelayed, no new date yetNo reviews yet

$96.80

or 4 fortnightly payments of $24.20 with afterpay or PayPal, or zip

IP67 waterproof brushed ESC for 1/10 rock crawlers with real-time Car Mode, adjustable BEC (6V/7.4V/8.4V), and 15 programmable parameters.

  • Real-time "Car Mode" motor direction switching via AUX channel
  • IP67 waterproof rating
  • BEC adjustable to 6V, 7.4V, or 8.4V at up to 6A peak
  • 15 adjustable parameters with 90+ values for full customisation
  • 80A continuous / 400A peak current handling
Select Male Connector
$96.80

Overview

With its G2 version, the Hobbywing Quicrun WP-1080 is the first controller with a real "Car Mode". This means that the direction of the motor can be switched in real time using the AUX channel on the transmitter, ensuring a unique driving experience. The handbrake force can also be adjusted in real time via another AUX channel, which would otherwise require external programming on other controllers.

Compared to the previous model, the Quicrun WP-1080 G2 offers significant upgrades including an expanded BEC — not only 6V and 7.4V, but now also 8.4V at 6A. A total of 15 adjustable parameters with over 90 values ensures the controller can be fully adapted to your needs.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Specially designed for 1/10 rock crawlers
  • BEC: 4A continuous and up to 6A peak load, adjustable to 6V, 7.4V or 8.4V
  • Waterproof according to the IP67 standard
  • 15 menu items for personal controller settings
  • Perfectly adjustable drag brake
  • Separate programming port
  • Small, light and yet robust
  • XT60 connector installed

Specifications

TypeBrushed
Current continuous/short80A / 400A
Cell count2-3S LiPo / 5-9 cells NiMH
BEC Switch Mode6V/7.4V @ 4A, 6A peak
Battery connectorXT60
Dimensions37.2 x 31.9 x 18.4 mm
Weight70.2g
WaterproofYes (IP67)

ESC (Electronic Speed Controller)

For Motor TypeBrushed
Max Voltage13V
Waterproof DesignYes
Continuous Amps40A
Motor ConnectorsBare Wires
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.2V, 8.4V
Dual MotorNo
