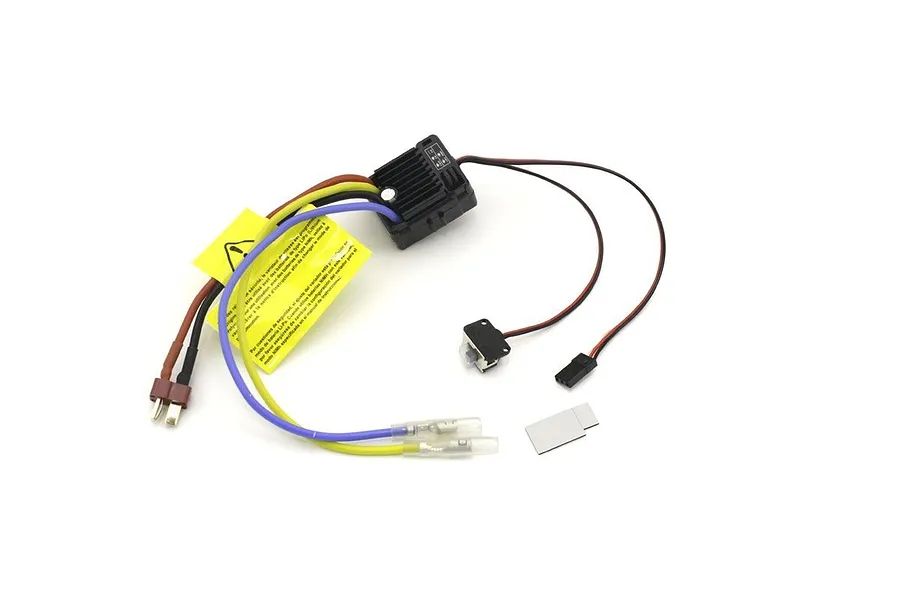

Kyosho KSH KA060-91W 60A Brushed ESC

  • Brushed

Part no. 82245

Sold outNo reviews yet

$103.19

or 4 fortnightly payments of $25.80 with afterpay or PayPal, or zip

Add it to My Garage

Waterproof 60A brushed ESC for 1/10 scale RC vehicles with multiple protections and programmable parameters.

  • Waterproof construction suitable for off-road and wet conditions
  • 60A continuous current for 1/10 scale brushed motors
  • Multiple protections: low-voltage cut-off, thermal, and throttle signal loss
  • Programmable parameters via built-in pins
  • 2-3S LiPo / 5-9 Cells NiMH compatible
Select Male Connector

In stock now: similar

Alternative products

Overview

The Kyosho KSH KA060-91W 60A Brushed ESC is a waterproof speed controller designed for 1/10 scale RC vehicles. Its compact size, reliable performance, and waterproof construction make it perfect for off-road adventures or any conditions where moisture might be a concern.

Note

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Waterproof design
  • High-efficiency water cooling system
  • Multiple protections (low-voltage cut-off, thermal protection, throttle signal loss protection)
  • Perfect for crawlers and entry level buggies, trucks and more
  • Easy to change parameters with built-in pins
  • Genuine Kyosho product

In the box

  • 1x Kyosho KSH KA060-91W 60A Brushed ESC

Specifications

Length36mm (1.42 in)
Width29.8mm (1.17 in)
Height23.6mm (0.93 in)
Weight51g (1.80 oz)
Continuous/Peak Current60A/N/A
WaterproofYes
Motor LimitBrushed Motors
BEC6V @ 3A
Voltage Limit2-3S LiPo / 5-9 Cells NiMH
ProgrammableYes
Scale1/10th
SensoredNo

ESC (Electronic Speed Controller)

For Motor TypeBrushed
Max Voltage11.1V
Waterproof DesignYes
Burst Amps360A
Continuous Amps60A
Motor ConnectorsBasic Bullet
Battery ConnectorDeans
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodAir
BEC Voltage6V
Dual MotorNo
