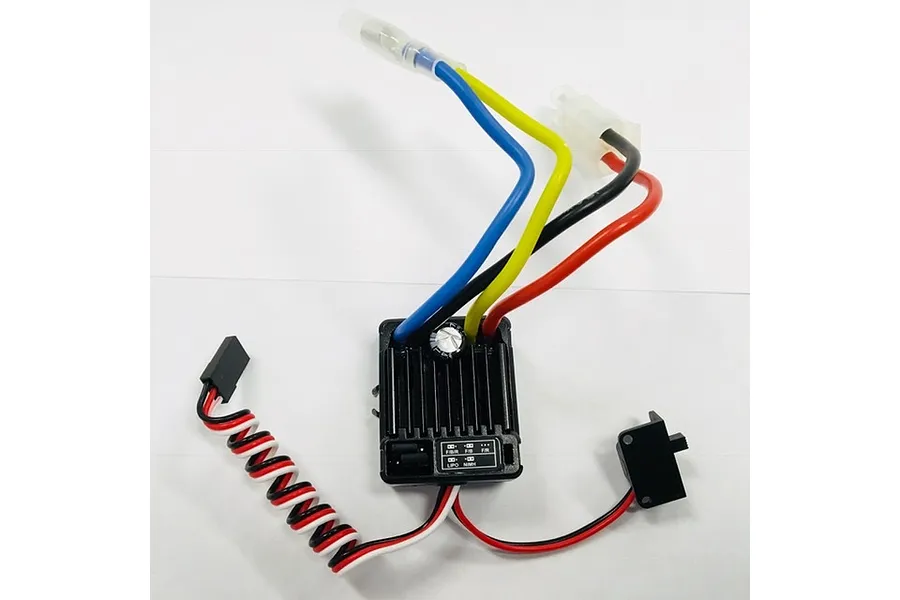

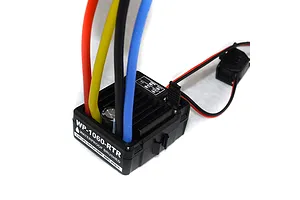

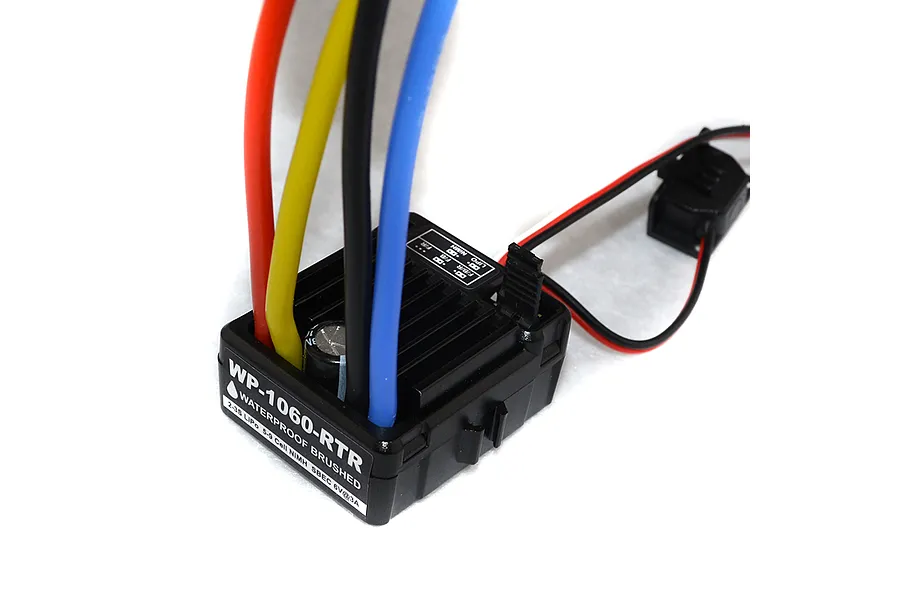

Hobbywing Quicrun 1060 60A Waterproof Brushed ESC
Frequently Bought Together
Alternative Products
Related Products
Description
The Hobbywing QuicRun WP 1060 is an entry-level waterproof brushed ESC designed for 1/10 scale RC cars. Its waterproof and dust-proof construction allows all-weather operation, and its simple jumper-cap configuration method makes it accessible for beginner and intermediate RC enthusiasts.
The ESC is compatible with 540/550 brushed motors across a range of 1/10 scale vehicle types including touring cars, buggies, short-course trucks, monster trucks, crawlers, and tanks.
Features
- Waterproof and dust-proof design for all-weather use
- Automatic throttle range calibration
- Three running modes: Forward/Brake, Forward/Reverse/Brake, and Forward/Reverse
- Switch-mode BEC for stable servo power
- Multiple protections: low-voltage cut-off, over-heat protection, and throttle signal loss protection
- Built-in capacitor module
- Compact, lightweight form factor
- Parameter configuration via jumper caps (no external programming card required)
Included Items
- QuicRun WP 1060 ESC unit with pre-soldered input and output wires
Note
Reverse battery polarity connection will cause irreparable damage. This model does not support firmware upgrades or advanced programming interfaces. If motor rotation direction is incorrect, swap the two motor output wires.
Specifications
-
Product number
- 30120200
-
Continuous current
- 60A forward / 30A reverse
-
Peak current
- 360A forward / 180A reverse
-
Battery input
- 2–3S LiPo or 6–9 cells NiMH
-
BEC output
- 6V / 3A (switch mode)
-
Compatible motors
- 540/550 brushed — minimum 12T (2S), minimum 18T (3S)
-
Motor connectors
- 4.0mm bullet connectors (female)
-
Battery connector
- Large Tamiya connector
-
Input wires
- 16AWG red and black, 100mm
-
Output wires
- 16AWG blue and yellow, 100mm
-
Dimensions
- 36.5 × 32.0 × 18.0mm
-
Weight
- 39g
-
Scale
- 1/10
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushed
-
Max Voltage
- 11.1V
-
Waterproof Design
- Yes
-
Continuous Amps
- 60A
-
Motor Connectors
- Basic Bullet
-
Battery Connector
- Tamiya
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Air
-
BEC Voltage
- 6V
-
Dual Motor
- No
