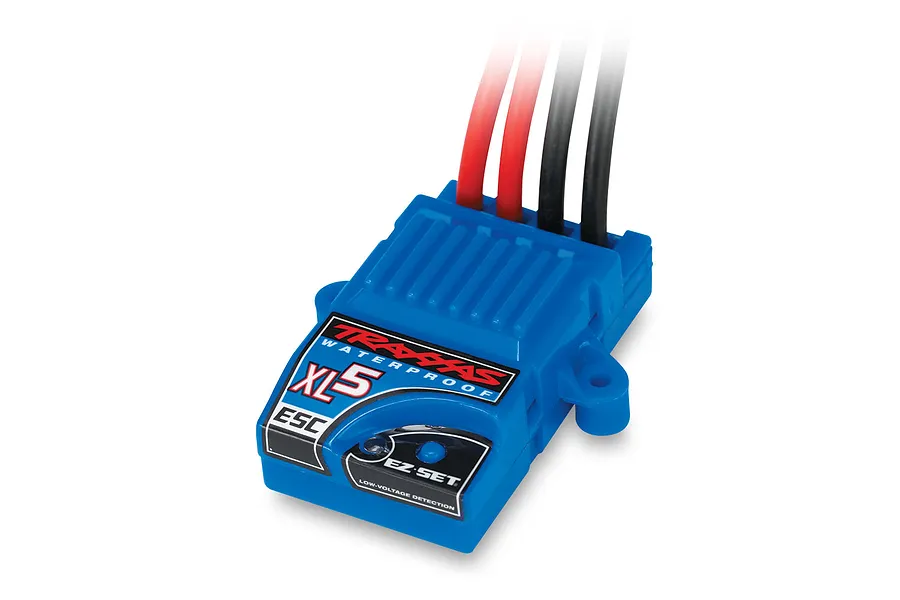

Traxxas XL-5 Waterproof 15A Brushed ESC
Brand: Traxxas
|
SKU: 3018R
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
The Traxxas XL-5 Waterproof 15A Brushed ESC handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units.
Features
- Waterproof design for all-weather driving
- Three throttle profiles (Sport, Race, Training)
- Low voltage detection for LiPo battery protection
- Thermal Shutdown Protection for safety
- 4-7 cell NiMH and 2S LiPo compatibility
- High frequency operation for ultra-low resistance
- Built-in BEC (Battery Eliminator Circuit)
- Genuine Traxxas product
Specifications
- Length: 55.4mm (2.18 in)
- Width: 31.2mm (1.23 in)
- Height: 19.05mm (0.75 in)
- Weight: 57g (2.0 oz)
- Continuous/Peak Current: 15A/100A
- Waterproof: Yes
- Motor Limit: 15-turns (540 size) / 12-turns (550 size)
- BEC: 6.0V @ 1A
- Voltage Limit: 4-7 cells NiMH; 2S LiPo
- Programmable: Yes (EZ Set Button Setup)
- Scale: 1/10
- Sensored: No
Included items
| Description | QTY |
|---|---|
| Traxxas XL-5 Waterproof 15A Brushed ESC | 1 |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| Burst Amps: | 100 |
| For Motor Type: | Brushed |
| Max Voltage: | 11.1 |
| Continuous Amps: | 15 |
| Motor Connectors: | Basic Bullet |
| Battery Connector: | Traxxas iD |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 6 |
| Dual Motor: | No |
