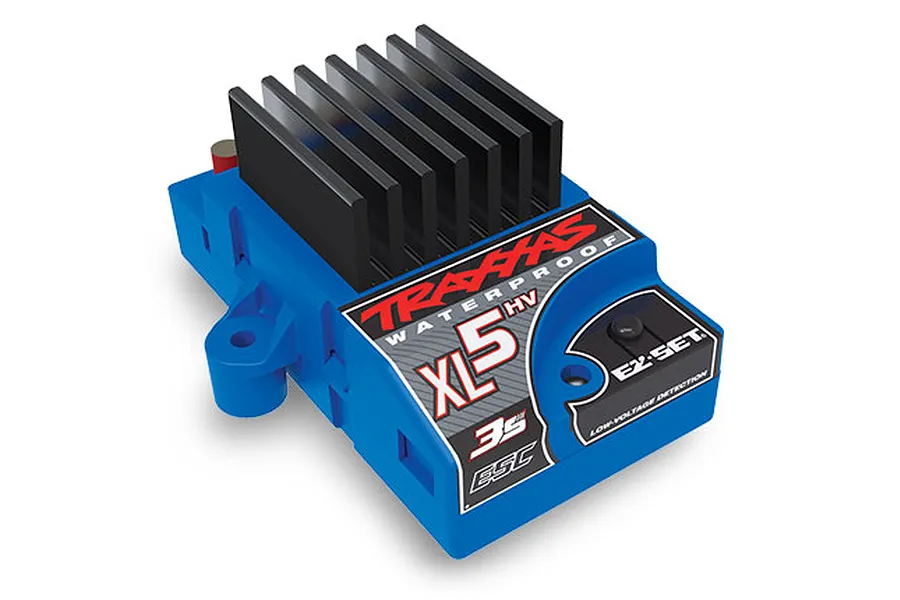

Traxxas XL-5HV 3S Waterproof 100A Brushed ESC

Traxxas XL-5HV 3S Waterproof 100A Brushed ESC

Traxxas XL-5HV 3S Waterproof 100A Brushed ESC

Brand: Traxxas | MPN: 3025
sold out
5.0
1 reviews
$151.36
or 4 fortnightly payments of $37.84 with Afterpay

Traxxas XL-5 HV waterproof brushed ESC for 1/10 RC trucks. Handles 3S LiPo (11.1V) with 100A peak current and EZ-Set programming.

  • 3S LiPo capable (up to 11.1V)
  • Fully waterproof for all-weather use
  • 18A continuous / 100A peak current
  • Two-stage LiPo low voltage protection
  • EZ-Set one-button programming
Traxxas
Traxxas
Also known as TRX
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

The Traxxas XL-5 HV 3S Waterproof 100A Brushed ESC is a high-voltage speed controller designed for demanding off-road adventures. With its 3S LiPo capability and robust construction, the XL-5 HV delivers ample power and rugged reliability for your RC truck.

Features
  • Handles high-voltage 3S LiPo power (11.1V)
  • Waterproof design for all-weather conditions
  • Large, efficient heat sink for cool running
  • Traxxas EZ-Set® one-button setup for simple programming
  • Two-stage low voltage protection (LVD) for LiPo batteries
  • Genuine Traxxas product
Included Items
  • 1x Traxxas XL-5HV 3S Waterproof 100A Brushed ESC
Note

Notice: Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications
Length
55.4 mm (2.18 in)
Width
31.2 mm (1.23 in)
Height
26.4 mm (1.11 in)
Weight
74 g (2.6 oz)
Continuous/Peak Current
18A/100A
Waterproof
Yes
Motor Limit
12-turns (550 size) with 2S LiPo; 21-turns (550 size) with 3S LiPo
BEC
6.0V @ 1A
Voltage Limit
6–7 cells NiMH (7.2–8.4V), 2–3S LiPo (7.4–11.1V)
Programmable
Yes (EZ-Set)
Scale
1/10
Sensored
No

ESC (Electronic Speed Controller)
For Motor Type
Brushed
Max Voltage
11.1V
Waterproof Design
Yes
Burst Amps
100A
Continuous Amps
18A
Motor Connectors
Basic Bullet
Battery Connector
Traxxas iD
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Air
BEC Voltage
6V
Dual Motor
No
