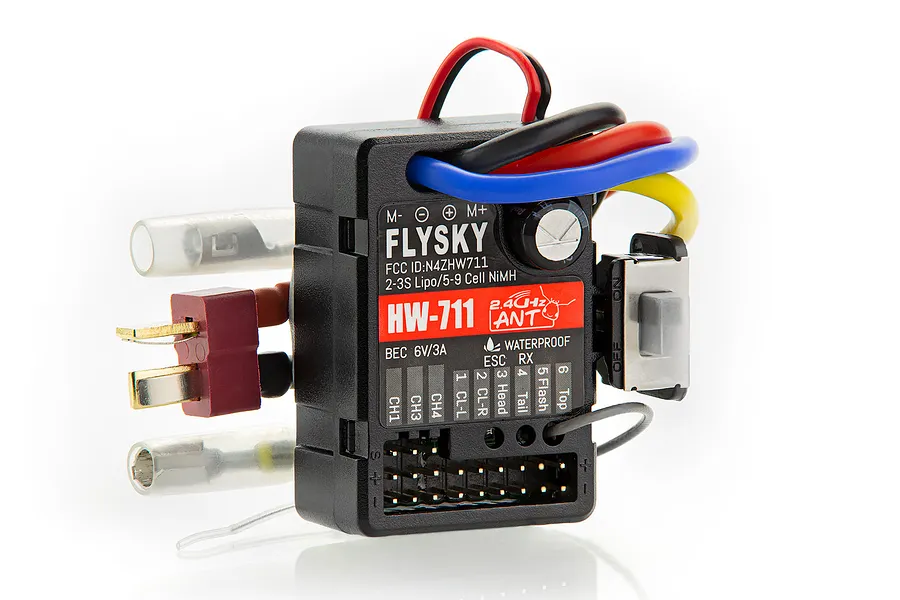

HSP RC4 1040 Waterproof Brushed ESC w/ Receiver & LED Light Controller (3 in 1)

  • Brushed

Part no. HW-711

Sold out5.0
1 review

$53.86

or 4 fortnightly payments of $13.46 with afterpay

HSP RC4 1040 waterproof 3-in-1 unit combining a brushed ESC, 2.4GHz receiver, and LED light controller for 1/10 scale RC vehicles.

  • 3-in-1 unit: brushed ESC, 2.4GHz receiver, and LED light controller
  • Waterproof for all-weather use
  • 40A continuous / 200A peak current
  • Compatible with 2-3S LiPo or 5-9 cells NiMH
  • Designed specifically for HSP RC4 1/10 scale vehicles
Select Male Connector

In stock now: similar

Overview

The HSP RC4 1040 Waterproof Brushed ESC with Receiver and LED Light Controller (3 in 1) is a versatile, compact and convenient solution for your RC vehicles. Designed for the HSP RC4, this integrated unit combines a brushed ESC, receiver, and LED light controller for streamlined installation and simplified wiring. Enjoy the waterproof protection and reliable performance for any of your RC adventures.

Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Waterproof design for all-weather conditions
  • Integrated 2.4GHz receiver for simplified setup
  • Built-in LED light controller for added realism
  • 40A continuous current handling for brushed motors
  • Compatible with 2-3S LiPo or 5-9 NiMH batteries
  • 6V @3A BEC output for reliable servo operation
  • Suitable for 1/10 scale RC cars and trucks
  • Genuine FlySky product for HSP

In the box

  • 1x HSP RC4 1040 Waterproof Brushed ESC w/ Receiver & LED Light Controller (3 in 1)

Specifications

Length44mm (1.73 in)
Width30mm (1.18 in)
Height16.7mm (0.66 in)
Weight39g (1.38 oz)
Continuous/Peak Current40A/200A
WaterproofYes
Motor LimitBrushed Motors
BEC6V @ 3A
Voltage Limit2-3S LiPo / 5-9 Cells NiMH
ProgrammableNo
Scale1/10th
SensoredNo

Receiver

Channels6Ch
Suited Vehicle TypeSurface
TelemetryNo
Operating Frequency2.4Ghz
FailsafeWhen connection is lost with the remote the fail safe will stop the vehicle.No

ESC (Electronic Speed Controller)

For Motor TypeBrushed
Max Voltage11.1V
Waterproof DesignYes
Burst Amps200A
Continuous Amps40A
Motor ConnectorsBasic Bullet
Battery ConnectorDeans
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableNo
Cooling MethodAir
BEC Voltage6V
Dual MotorNo
