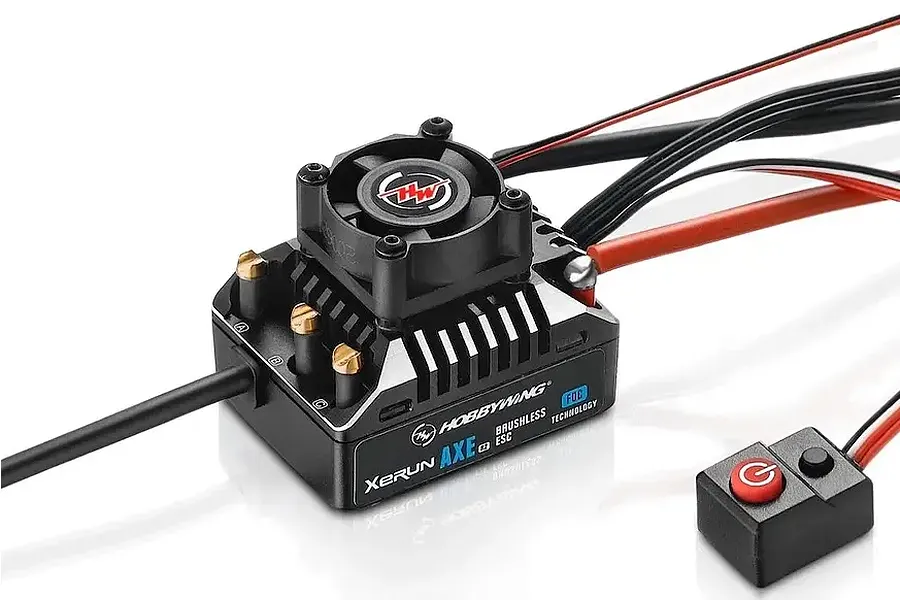

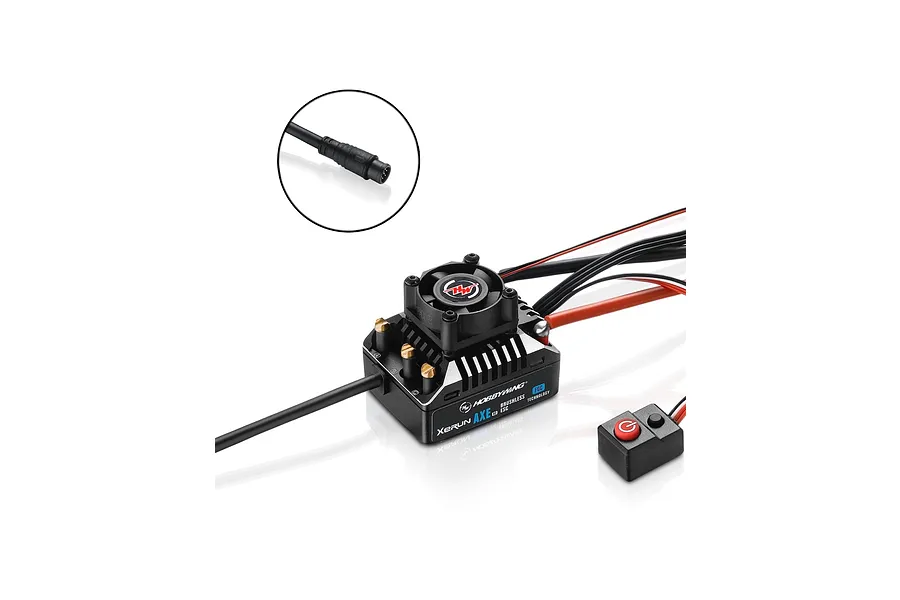

Name: Hobbywing XeRun AXE R2 FOC Sensored Brushless ESC
Brand: Hobbywing
SKU: HW-30112102
Price: 273.19 AUD
Availability: Discontinued

Overview

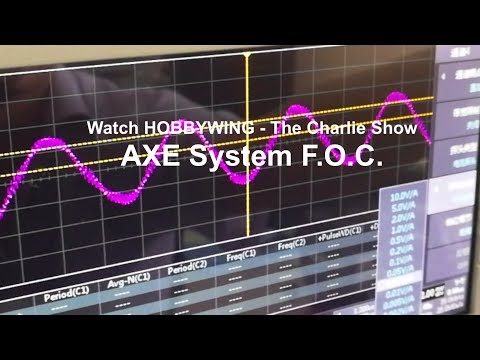

FOC (Field-Oriented Control) delivers super linearity, high torque, and extreme silence. New sensor technology has changed the feel, performance, and overall tuneability of the new AXE ESC and Motor. This unique style of sensor allows highly accurate control and sensing of the motor while maintaining extreme performance and reliability. The motor and ESC can match the RPM of the motor to your throttle position under all driving conditions, greatly improving hill driving with the ability to drive down hills under complete control. FOC technology also makes the whole system extremely silent — the motor does not create PWM noise when running.

Note

Notice: Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within safe operating limits.

Features

World's First FOC brushless system for Rock Crawler — Field-Oriented Control for Super Linearity, High Torque, and Extreme Silence
Chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs pure and precise signals indicating the rotor position
Polarity Protection — no more reverse-wiring damage
Waterproof and dust-proof design to IP67 standards — usable in all weather and track conditions
Intelligent torque output and speed closed-loop control for easy control and consistent motor RPM under all loads
Adjustable drag brake and drag brake rate control with maximum drag brake up to 200% — provides parking capacity on slopes with no jerky stops
Built-in Bluetooth connectivity — read ESC data or update ESC firmware via smartphone (HW LINK app)

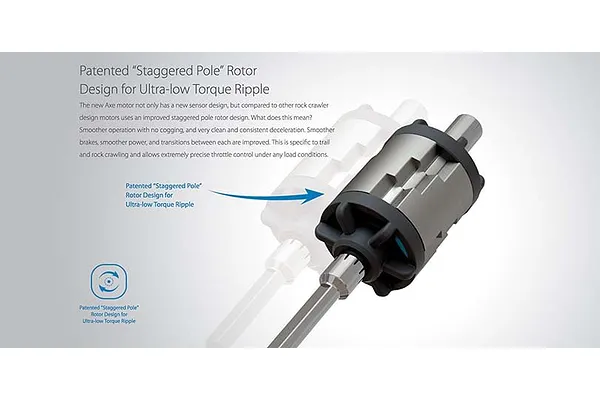

Motor with 4 poles and 12 magnets featuring Hobbywing's 'staggered pole' patent — zero cogging effect and torque ripple, smooth operation at low speeds
New sensor harness with plug-and-screw design and silicone O-ring for firm, waterproof connection between motor and ESC
Advanced electronic switch with waterproof, dust-proof, and shock-resistant design
Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent

Highlights

Hobbywing XeRun AXE R2 ESC – product detail

FOC (Field-Oriented Control) technology allows highly accurate control and sensing of the motor while maintaining extreme performance and reliability.

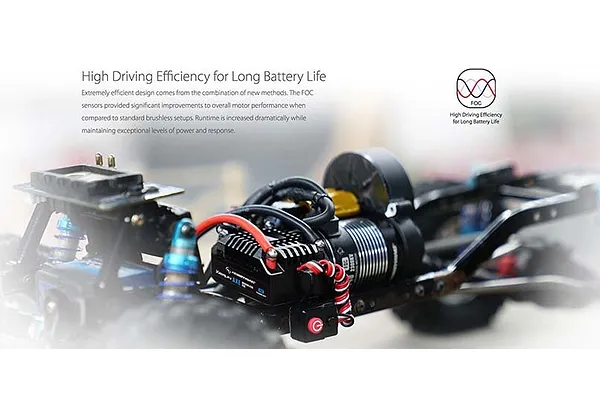

Hobbywing XeRun AXE R2 ESC – feature illustration

The innovative built-in Bluetooth connectivity allows users to read ESC data or update ESC firmware via a smartphone using the HW LINK app.

IP67 Waterproof Design

The waterproof and dust-proof design to IP67 standards allows the AXE brushless power system to be used in all weather and track conditions.

Hobbywing XeRun AXE R2 ESC – wiring and connector detail

Input connectors are XT60 with black and red 14AWG 200mm wires; the new sensor harness uses a plug-and-screw design with a silicone O-ring for a waterproof connection.

Hobbywing XeRun AXE R2 ESC – size/scale reference

The ESC measures 47.4 x 36.2 x 26.5 mm and weighs 108 g including the input line, suitable for 1/10th scale rock crawlers.

Specifications

Product Name	XERUN AXE R2 Brushless ESC
Product Number	30112102
Scale	1/10th
Type	Brushless, Sensored
Waterproof	YES (IP67)
Continuous / Peak Current	80A / 480A
Input Voltage	2–3S LiPo / 6–9 Cell NiMH
BEC Output	Switch Mode 6V / 7.4V @ 6A
Input Wires & Connectors	Black 14AWG 200mm, Red 14AWG 200mm
Input Connector	XT60
Programming Port	Built-in Bluetooth
Firmware Upgrade	Supported
SET Button on ESC	Not Supported
LED Program Box	Not Supported
LCD Program Box	Not Supported
WiFi Module	Not Supported
OTA Programmer	Not Supported
Size	47.4 x 36.2 x 26.5mm
Weight	108g (including input line)
Compatible Motor	XERUN AXE R2 motor only
Vehicles	1/10th Rock Crawler

ESC (Electronic Speed Controller)

Max Voltage	11.1V
Waterproof Design	Yes
Battery Connector	XT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Cooling Method	Fan
BEC Voltage	7.4V
Dual Motor	No
