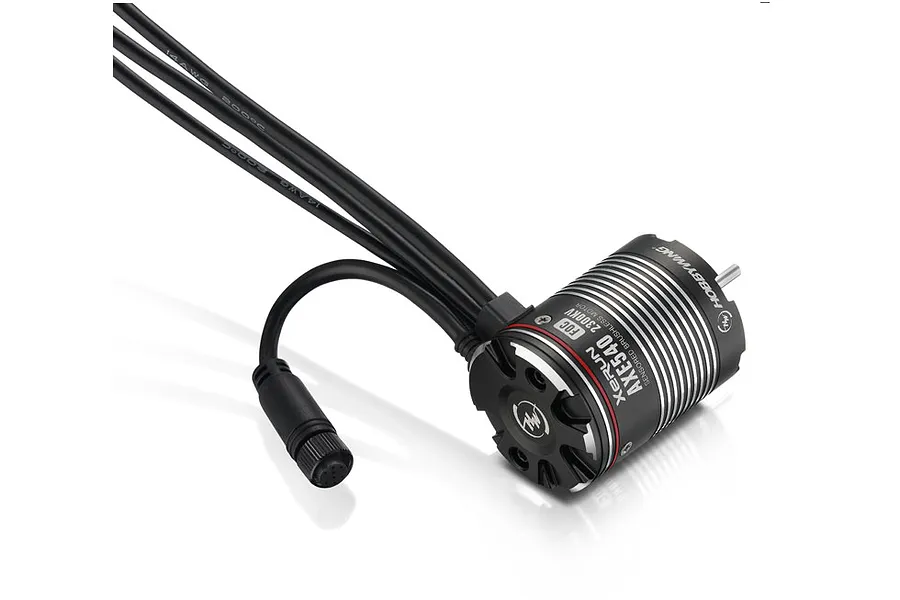

Hobbywing XeRun AXE540 1800Kv-FOC Sensored Brushless Crawler Motor
Videos
Hobbywing XeRun AXE540 1800Kv-FOC Sensored Brushless Crawler Motor
Hobbywing has been extremely busy to bring us a new generation of 1/10 Brushless Crawler motors. Introducing the XeRun AXE with FOC technology — simply add the Hobbywing AXE-FOC Sensored 60A ESC and you'll have the ultimate power plant for your 1/10 RC crawler.
The FOC (Field Oriented Control) motor allows your RC Crawler to maintain low RPMs regardless of the load, making it the ideal technology for RC crawlers as it enables smooth power at low RPMs while being under high load applications such as rock climbing and hill climbs. It is also extremely silent.
- Max Input Voltage: 3S 11.1V LiPo
- Weight: 175g (6.17oz)
- Motor Diameter: 36mm
- Motor Length: 48.8mm
- Shaft Diameter: 3.175mm (1/8")
- Connector: Coming Soon
- Motor Types: FOC Sensored (Field-oriented Control)
- Kv Rating: 1800kv
The Hobbywing Xerun AXE series is a closed system: due to its advanced technology, the Hobbywing Xerun AXE ESC works exclusively with the Xerun AXE brushless motor. This motor is compatible with the HW AXE V1.1 ESC (30112101) only, and not the R2 ESC (30112102).
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 1800KV
-
LengthLength of the motor can in mm
- 48.8mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
$399.38
