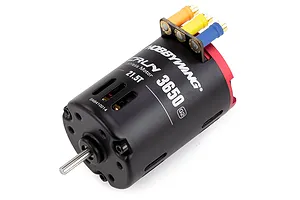

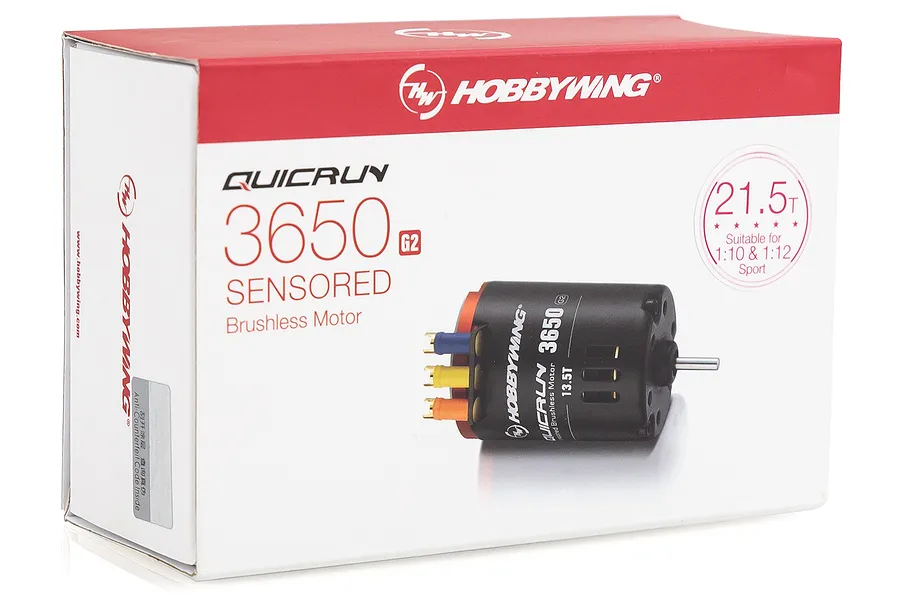

Hobbywing Quicrun 3650 G2 21.5T 1800Kv Sensored Brushless Motor
Hobbywing Quicrun 3650 G2 21.5T 1800Kv Sensored Brushless Motor
Hobbywing Quicrun 3650 G2 21.5T 1800Kv sensored brushless motor for 1/10 scale RC cars. Plug-and-play with re-buildable design.
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions. The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (excluding bearings).
Customized 3.5mm low impedance bullet connectors soldered to the motor wires guarantee plug-and-play and stable connections between the ESC and motor.
When pairing the QuicRun 3650 G2 motor with the Hobbywing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.
- Linear & Smooth Control
- Great Heat-dissipation
- Plug-and-Play
- Re-buildable Design
- Compatible with QuicRun-10BL60-Sensored ESC
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Pole Count: 2
- KV Rating: 1800
- LiPo Cells: 2-3S
- No-load Current: 1.3A
- O.D.: 36mm (1.147in)
- Length: 52.8mm (2.079in)
- Shaft Diameter: 3.17mm (0.125in)
- Weight: 187g
- Timing: Fixed
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 1800KV
-
LengthLength of the motor can in mm
- 52.8mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
-
TurnsTurns affect speed and torque: low = fast, high = strong
- 21.5
