Losi LMT Solid Axle RC Monster Truck Electric 4WD 1/10 Scale Roller

Losi LMT Solid Axle RC Monster Truck Electric 4WD 1/10 Scale Roller

Brand: Losi | SKU: LOS04022
discontinued
This product has been replaced by the product below.
Shop replacement & upgrade parts for this model
Shop Parts
Description

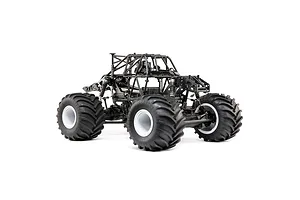

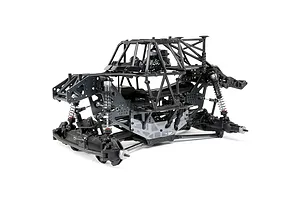

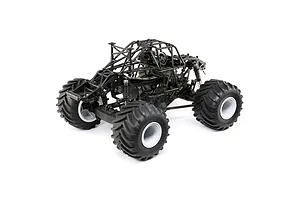

LMT 4WD Solid Axle Monster Truck Roller

Completely designed from the ground up, the Losi® LMT 4WD Solid Axle Monster Truck Roller is the first of its kind on the market combining all-out performance with incredible scale detail.

Starting with the chassis, a twin vertical plate is designed to provide all the performance adjustments needed to tune the truck for any situation. Whether you are a scale driver, a basher or a racer, the chassis is designed to accommodate multiple shock setups keeping you tracking straight, no matter the terrain. New multi-piece axle housings surround the 1/8th scale drivetrain. Additionally, the easy access centre transmission comes stock with a centre differential and allows for quick changes with the optional spool for that wheel standing action. For the authentic Monster truck experience, the axles also allow for optional 4-wheel steering and a new adjustable servo saver to keep the wheels pointed in the right direction. A composite flip top cage adds scale realism and protection, as well as functionality so you can easily access your battery and electronics. Choose your preferred peripherals such as a transmitter, battery, charger, motor and more for a complete custom setup. The LMT Monster Truck Roller has just thrown down the gauntlet on solid axle monster trucks.

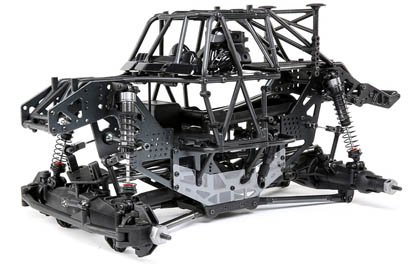

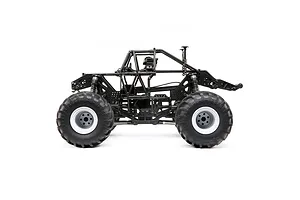

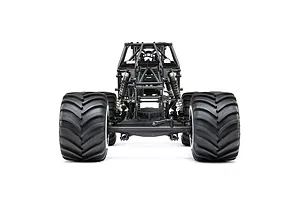

Losi LMT 4WD Solid Axle Monster Truck Roller
Solid Axle Monster Truck Roller

Feel like you are behind the wheel of a real Monster Truck. Losi performance combined with scale realism to produce the ultimate Solid Axle RC Monster Truck. This is a REAL Monster!

Losi LMT 4WD Solid Axle Monster Truck Roller

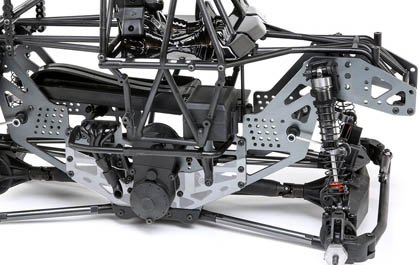

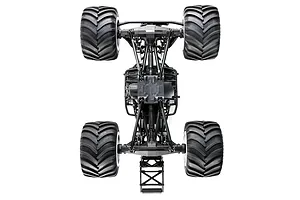

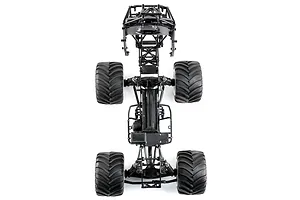

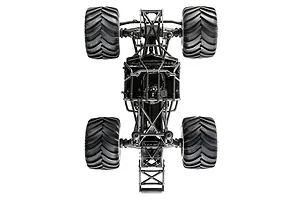

Twin Vertical Plate Chassis

Twin Vertical Plate Aluminium Chassis not only provides extreme strength and durability, it also allows for multiple suspension configurations so you can dial your truck into any situation.

Losi LMT 4WD Solid Axle Monster Truck Roller

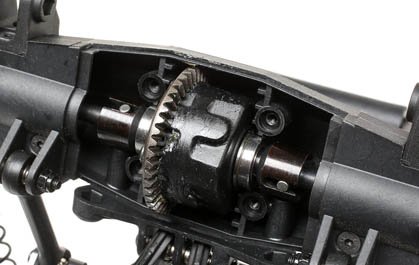

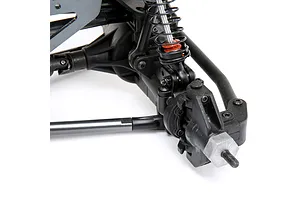

1/8 Scale Monster Truck Differentials

Fluid filled differentials allow multiple tuning options for optimal performance on any surface. The center differential allows you to tune the power bleed from front to rear for optimal performance in any condition.

Losi LMT 4WD Solid Axle Monster Truck Roller

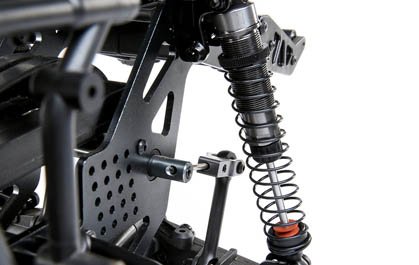

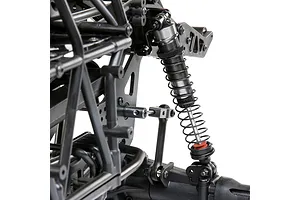

Long Travel Coil Over Shocks

Long Travel Coil Over shocks with rubber bump stops to provide superior dampening.

Losi LMT 4WD Solid Axle Monster Truck Roller

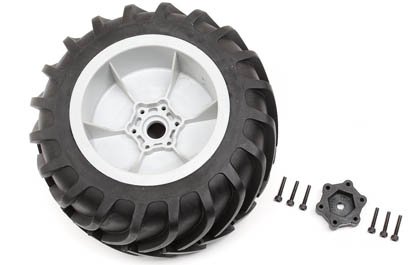

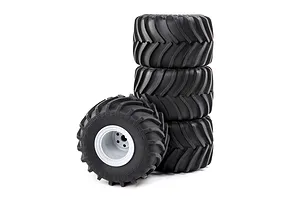

Short Course Style Monster Truck Wheel with Replaceable Center Hub

Short course style wheels with 17mm wheel hex reduce the rotating mass of the tyre while providing additional clearance for all of the steering components. There is an optional 12mm center hub so you can run these tyres on multiple trucks.

Losi LMT 4WD Solid Axle Monster Truck Roller

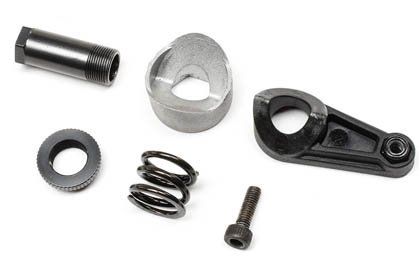

Adjustable Servo Saver

An adjustable servo mounted servo saver allows you to adjust the tension on the servo saver for maximum steering and protection to the servo.


Features
  • Solid Axle Monster Truck Roller
  • Twin Vertical Plate Chassis

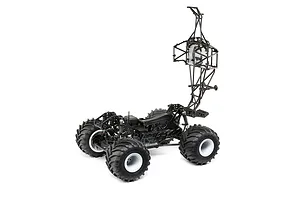

  • Composite Flip Top Cage
  • Multi Piece Scale Axle Housing
  • Long Travel Coil Over Shocks
  • Center Differential with Cush Drive
  • 1/8th Scale Diffs
  • Short Course Style Wheel with replaceable center hub
  • Scale Monster Truck Tyre
  • Adjustable Servo Saver
  • Scale Details
  • Driver Insert
  • Preset motor plate produces easy, precise gear mesh
  • Elastomer battery mounting for a versatile battery hold down system
Specifications
  • Approximate Assembly Time: 1 - 3 hours
  • Ball Bearings: Full set
  • Chassis: 6061-T6 Aluminium Twin Vertical Plates
  • Differential: Bevel gear, sealed
  • Drivetrain: 4WD
  • Drive Type: Forward/Brake/Reverse
  • Final Drive Ratio: 18.76:1
  • Power Type: Electric
  • Gear Pitch: MOD 1.0
  • Internal Gear Ratio: 10.16:1
  • Motor Type: Brushless
  • Product Height: 11.8" (300 mm)
  • Product Length: 22" (559 mm)
  • Product Width: 15.4" (391 mm)
  • Scale: 1/8 Roller
  • Shock Type: Aluminium body oil-filled coil-over
  • Suspension: Solid Axle 4-link
  • Tyre Compound: Firm
  • Tyre Tread: BKT Monster truck
  • Tyre Type: All-terrain
  • Vehicle Type: Monster Truck
  • Wheelbase: 13.5" (342.9mm)
  • Wheel Hex Size: 17mm
  • Wheel Width: 4" (101.6mm)
Included items
Description QTY
LMT 4WD Solid Axle Monster Truck Roller 1
BKT Monster Truck Tyres 4
Rims 4
Instruction Manual 1
Required Items
  • 130A or more ESC
  • Brushless Motor
  • 5-Channel Radio Transmitter and Receiver
  • Body Shell
  • Assorted tools (see manual for details)
  • 2-3S LiPo Battery with IC5/EC5 Connector
  • LiPo Compatible Charger
Specifications
Factory Specs
Pinion Gear
14T
Wheel Hex Size
17mm, 12mm
Front Differential Oil
100000
Rear Differential Oil
100000
Rear Shock Oil
25w
Battery Connector
Max LiPo Power
3S (11.1v)
Front Shock Oil
Centre Differential Oil
100000
RC Car
Skill Level
Expert
Completion
Roller
Drivetrain
4WD
Max LiPo Power
3S (11.1v)
On/Off Road
Off Road
Chassis Type
Monster Truck
Power Source
Electric Brushless
Scale
1/10
