Losi

Losi LMT Grave Digger Edition RC Monster Truck Electric Brushless 4WD 1/8 Scale RTR - Green

  • 1/10
  • 4WD
  • RTR
  • Brushless

Part no. LOS04021T1

DiscontinuedWrite a review
1 / 16
1 / 16

Videos

Select Option: Grave Digger Edition RC Monster Truck Electric Brushless 4WD 1/8 Scale RTR - Green

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

The Losi® LMT 4WD Solid Axle Monster Truck is completely designed from the ground up, and is the first of its kind on the market combining all-out performance with incredible scale detail. The twin vertical plate chassis is designed to provide all of the performance adjustments needed to tune the truck for any situation — whether you are a scale driver, a basher or a racer, the chassis accommodates multiple shock setups keeping you tracking straight on any terrain.

New multi-piece axle housings surround the 1/8th scale drivetrain, and the easy access centre transmission comes stock with a centre differential that allows for quick changes with the optional spool for wheel-standing action. The axles also allow for optional 4-wheel steering and an adjustable servo saver. The Spektrum™ Firma™ Smart 130 Amp ESC and 3150kv 4-pole Brushless motor deliver blazing speeds, while drivers stay in control with a DX3™ transmitter and a Spektrum SR315 DSMR® 3-Channel Sport Receiver. An officially licensed Grave Digger body completes the authentic Monster Jam experience.

Features

  • Solid Axle Monster Truck
  • Monster Jam Licensed MT
  • Twin Vertical Plate Chassis
  • Brushless Power System
  • Composite Flip Top Cage
  • Smart Technology Included
  • Multi-Piece Scale Axle Housing
  • Long Travel Coil-Over Shocks
  • Centre Differential with Cush-Drive
  • 1/8th Scale Diffs
  • Short Course Style Wheel with Replaceable Centre Hub
  • Scale Monster Truck Tyre
  • Adjustable Servo Saver
  • Scale Details
  • Driver Insert
  • Preset motor plate produces easy, precise gear mesh
  • Elastomer battery mounting for a versatile battery hold-down system

In the box

  • 1x LMT 4WD Solid Axle Monster Truck RTR
  • 1x Product Manual

You'll need

  • LiPo Compatible Charger
  • 2-3S LiPo Battery w/ IC5/EC5 Connector
  • 4x AA Batteries

Highlights

LMT chassis call-out diagram

LMT chassis call-out diagram

Twin Vertical Plate Aluminium Chassis, Spektrum Firma 3150kv Motor, Smart 130A ESC, multi-piece scale axle housing, long travel coil-over shocks, centre differential, and elastomer battery mounting.

Colour and body variant call-out

Colour and body variant call-out

Officially Licensed Monster Jam Body — Grave Digger and Son-Uva Digger bodies are officially licensed by Monster Jam and Feld Motorsports.

Solid Axle Monster Truck

Solid Axle Monster Truck

Losi performance combined with scale realism to produce the ultimate Solid Axle RC Monster Truck.

Scale Detail Performance Build

Scale Detail Performance Build

Completely designed from the ground up, the Losi LMT 4WD Solid Axle Monster Truck combines all-out performance with incredible scale detail.

Flip Top Battery Cage

Flip Top Battery Cage

A composite flip top cage adds scale realism and protection, as well as functionality so you can easily access your battery and electronics.

Exhaust Headers and LED Headlights

Exhaust Headers and LED Headlights

Scale details like exhaust headers and LED headlights help to complete the scale look.

Elastomer Battery Mount

Elastomer Battery Mount

The LMT comes equipped with Losi's Elastomer Battery Mounting system for a versatile battery hold-down system.

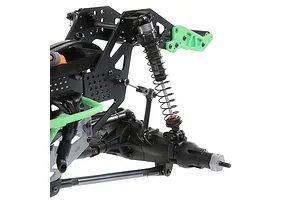

Long Travel Coil-Over Shocks

Long Travel Coil-Over Shocks

Long Travel Coil-Over shocks with rubber bump stops provide superior dampening and have a very scale look.

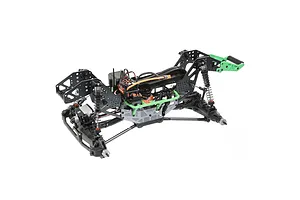

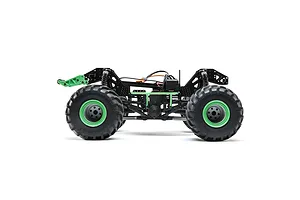

Twin Vertical Plate Chassis

Twin Vertical Plate Chassis

Twin Vertical Plate Aluminium Chassis provides extreme strength and allows for multiple suspension configurations.

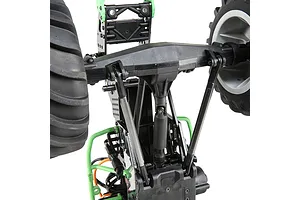

Multi-Piece Axle Design

Multi-Piece Axle Design

Multi-Piece Axle design provides the scale look and provides easy access for gear changes and maintenance.

Fluid-Filled Centre Differential

Fluid-Filled Centre Differential

The fluid-filled centre differential allows for performance tuning with the added protection of the torque dampening Cush Drive.

Short Course Steering Wheels

Short Course Steering Wheels

Short Course style wheels reduce the tyre's rotating mass while providing additional clearance for all of the steering components.

Scale Monster Truck Tyres

Scale Monster Truck Tyres

Scale Monster Truck Tyres are modelled after the real-life Monster truck tyres.

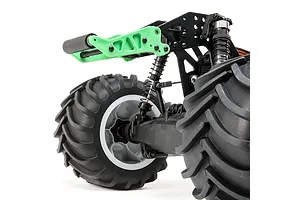

2-Position Wheelie Bar

2-Position Wheelie Bar

The 2 Position Wheelie Bar utilizes a large roller supported by ball bearings on each side for smooth wheelie action.

Centre Driver Scale Detail

Centre Driver Scale Detail

Scale detail to finish off the true monster truck look, with the driver sitting in the centre of the truck.

Preset Motor Plate Mesh

Preset Motor Plate Mesh

No more trying to find the perfect gear mesh — the LMT comes with a preset motor plate that will ensure the perfect mesh every time.

Fluid-Filled Differential Tuning

Fluid-Filled Differential Tuning

Fluid-filled differentials allow multiple tuning options for optimal performance on any surface.

Adjustable Servo Saver

Adjustable Servo Saver

An adjustable servo mounted servo saver allows you to adjust the servo saver's tension for maximum steering and protection.

Spektrum DX3 Radio System

Spektrum DX3 Radio System

The Spektrum DX3 radio system offers advanced features like AVC technology, a 3-position throttle limiting switch and travel adjust.

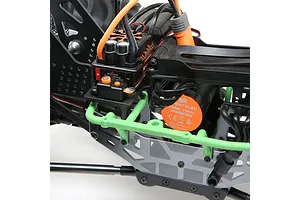

Waterproof Programmable ESC

Waterproof Programmable ESC

The ESC is waterproof, completely programmable and comes pre-wired with a high-current IC5 connector.

Firma Smart Brushless System

Firma Smart Brushless System

Spektrum Firma Smart brushless power system will run on 2-3s LiPo power, providing wheel standing horsepower and capable of speeds over 35mph.

Smart Battery Voltage Indicator

Smart Battery Voltage Indicator

The Smart Battery voltage indicator lets drivers easily find out the charge of their Smart battery with a glance.

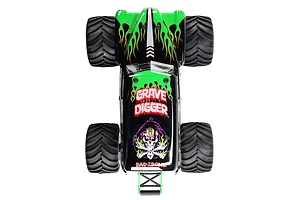

Licensed Monster Jam Bodies

Licensed Monster Jam Bodies

Grave Digger and Son Uva Digger bodies are officially licensed by Monster Jam and Feld Motorsports.

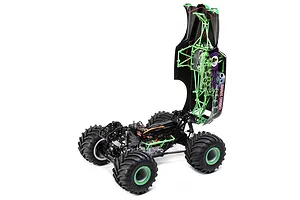

Flip Top Cage Access

Flip Top Cage Access

The composite flip top cage provides scale detail as well as easy access to the batteries and electronics.

Scale Detail With LED Lights

Scale Detail With LED Lights

The LMT Monster Truck combines all-out performance with incredible scale detail including headers, driver insert, and LED lights.

Specifications

Approximate Assembly TimeLess than 1 hour
Ball BearingsFull Set
BatterySold Separately
BodyTrimmed and painted Grave Digger
ChargerSold Separately
Chassis6061-T6 Aluminium Twin Vertical Plates with Removable Shock Towers
Completion LevelReady-To-Run
DifferentialBevel gear, sealed
Drivetrain4WD
Drive TypeForward/Brake/Reverse
Final Drive Ratio18.76:1
Power TypeElectric
Gear Pitch1.0 MOD
Ground Clearance50.8mm (2.0")
Internal Gear Ratio10.16:1
Motor Size3660
Motor TypeBrushless - Sensorless
Pinion14T
Product Height300mm (11.8")
Product Length559mm (22")
Product Weight4.94kg (10.9lbs) w/o battery
Product Width391mm (15.4")
RadioIncluded
Scale1/10
ServosIncluded
Shock TypeAluminium body, oil-filled, coil-over
Speed ControlIncluded
SuspensionSolid Axle 4-link
Tyre CompoundFirm
Tyre TreadBKT Monster truck
Tyre TypeAll-terrain
Vehicle TypeMonster Truck
Wheelbase342.9mm (13.5")
Wheel Hex Size17mm
Wheel Width101.6mm (4.0")

RC Car

Scale1/8
Max LiPo Power3S (11.1v)
CompletionReady to Run
Skill LevelIntermediate
Power SourceElectric Brushless
Chassis TypeMonster Truck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorIC5, EC5
