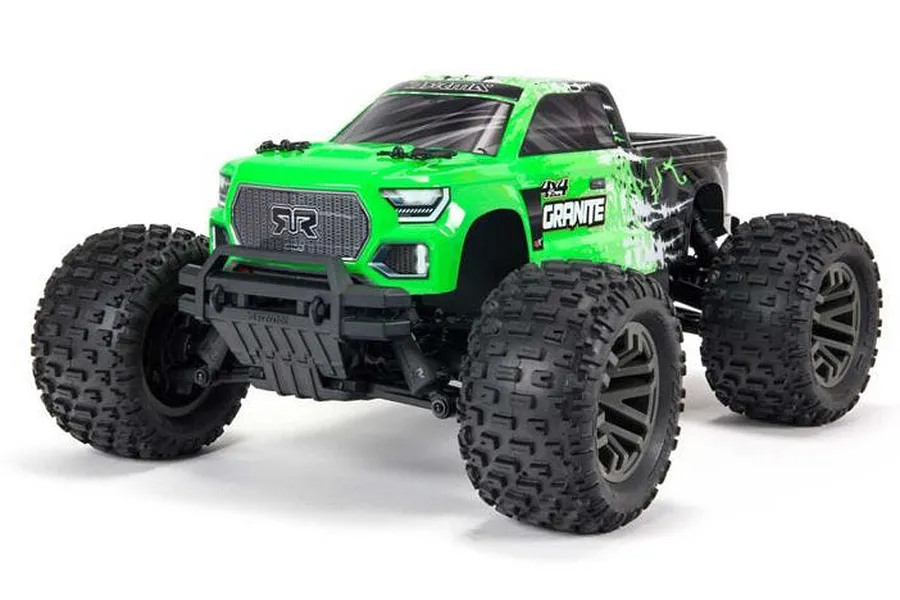

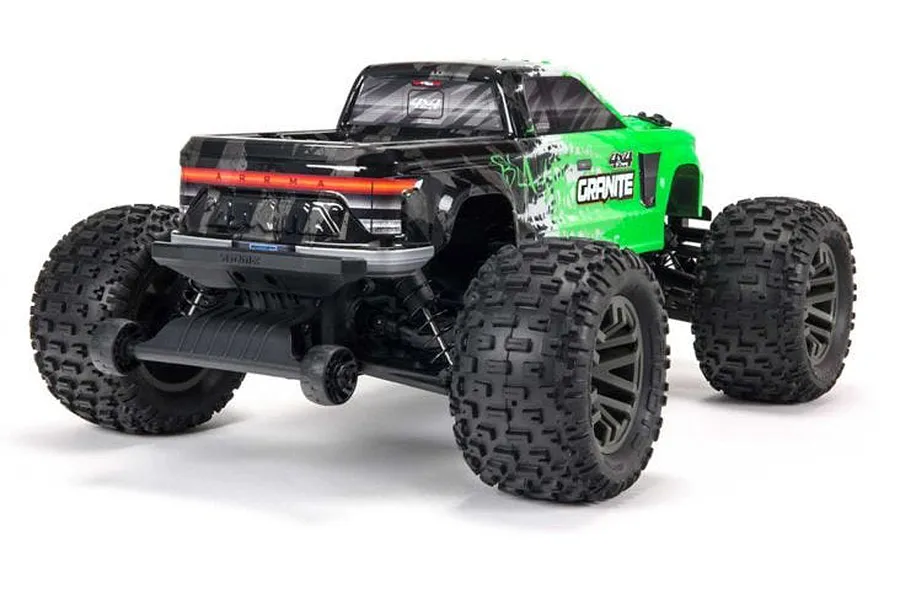

ARRMA GRANITE 4x4 V3 3S BLX RC Monster Truck Electric Brushless 4WD 1/10 Scale RTR - Green

  • 1/10
  • 4WD
  • RTR
  • Brushless

Part no. ARA4302V3BT1

Discontinued4.0
2 reviews
1 / 16
1 / 16

Videos

Select Option: 4x4 V3 3S BLX RC Monster Truck Electric Brushless 4WD 1/10 Scale RTR - Green

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

The ready-to-run ARRMA® GRANITE™ 4X4 3S BLX Monster Truck delivers jaw-dropping power and 50+ MPH brushless performance — and now includes a Spektrum™ SLT3™ radio, Firma™ brushless motor, tougher chassis, stronger steering servo and other upgrades.

Note

See manual for waterproof standards

Features

  • Extremely durable — DESIGNED FAST, DESIGNED TOUGH!
  • Spektrum™ 3-Channel SLT3™ 2.4GHz radio and SLR300 Waterproof* Receiver
  • Fast response SLT™ protocol
  • Foam wheel with improved grip and trigger feel, improved wheel and trigger force
  • 2-way thumb switch third channel; 50% and 75% Throttle mode (for beginners)
  • Tactic® SLT™ receiver compatible
  • Spektrum™ SPMS651 Metal-Geared Digital Servo — 101 oz-in (7.27 kg-cm) @ 6V; 15% more torque than the previous ADS-7M servo
  • Waterproof* — refer to instruction manual for details

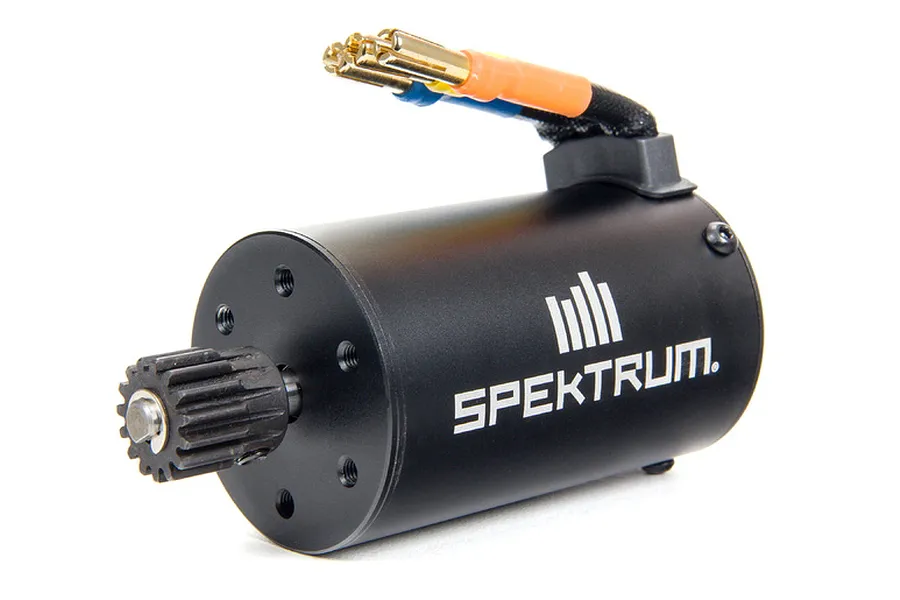

  • Spektrum™ Firma™ 3660 3200Kv brushless motor with Safe D pinion, ARRMA® heatsink and cooling fan

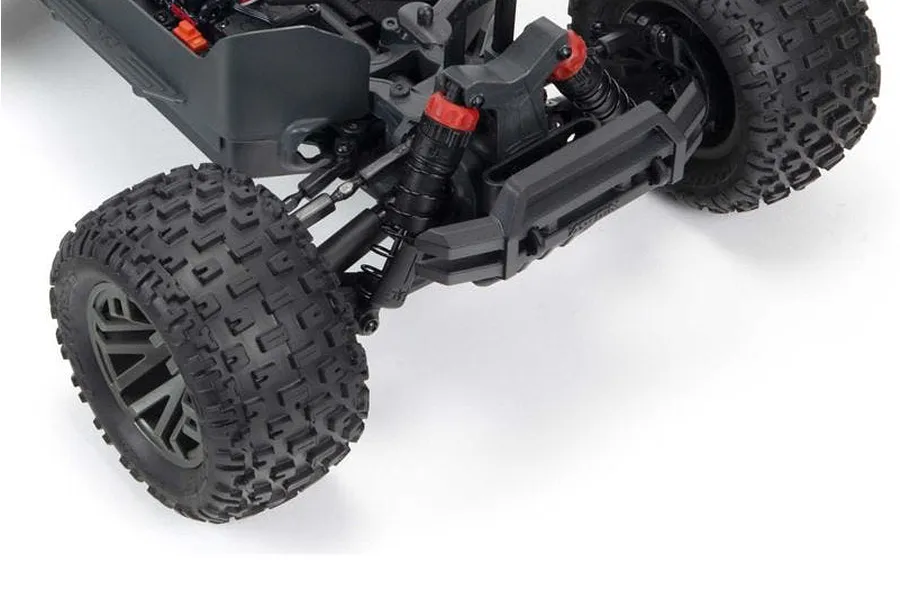

  • Stronger chassis and retained hinge pin plates
  • Steering with more clearance for stones
  • Castellated slipper pad and sliding gear mesh
  • Plastic locknut for slipper
  • 23T Spline servo saver
  • 37T 1.35Mod diffs with silicone O-rings
  • Power Module with sliding gear mesh and improved dirt management
  • Rubber shielded bearings throughout
  • Oil-filled shocks with silicone O-rings
  • Front and rear bumpers
  • Tough gunmetal colored multi-spoke wheels
  • Vented multi-terrain dBoots® Fortress™ MT tires

In the box

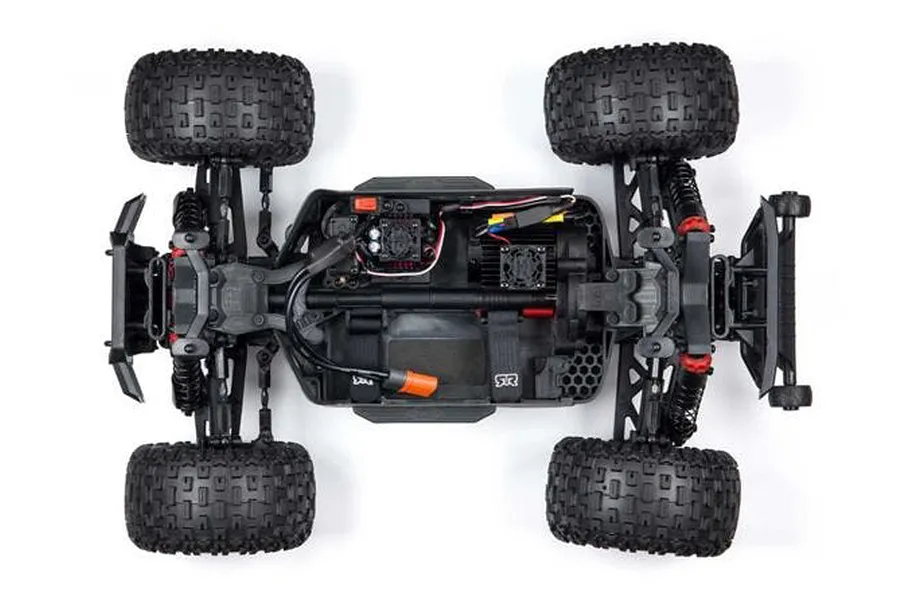

  • 1x ARRMA® GRANITE™ 4X4 3S BLX 1/10 Scale 4WD Electric Monster Truck RTR

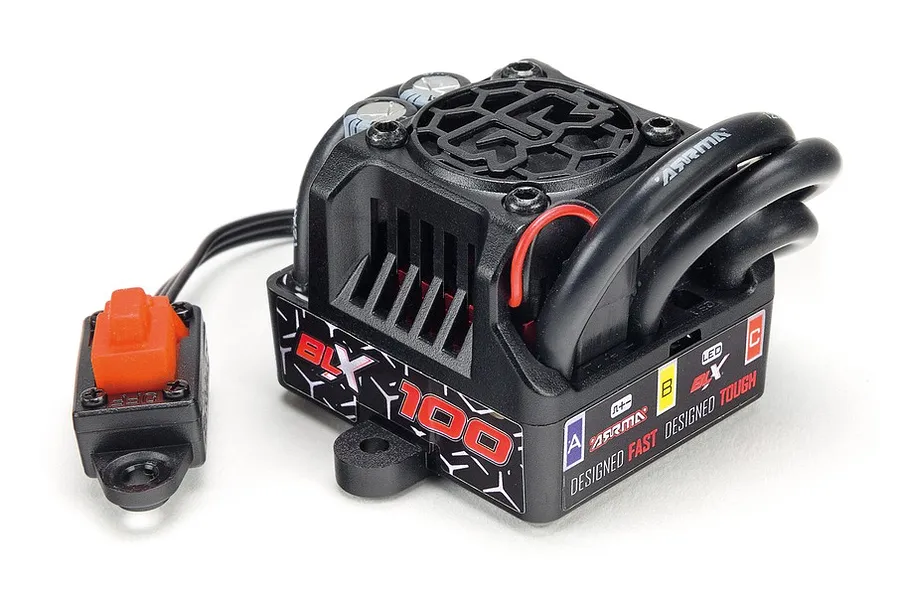

  • 1x BLX100 2S/3S Waterproof ESC
  • 1x Spektrum™ Firma™ 3660 3200Kv Brushless Motor
  • 1x Spektrum™ 2.4GHz SLT3™ 3-Channel Transmitter
  • 1x Spektrum™ SLR300 Receiver
  • 1x Spektrum™ SPMS651 Waterproof* Metal-Geared Digital Servo
  • 1x 23T Spline servo saver
  • 1x 1/10 GRANITE 4WD V3 3S BLX Manual

You'll need

  • 7.2–11.1V Battery
  • Charger
  • 4 AA Batteries

Highlights

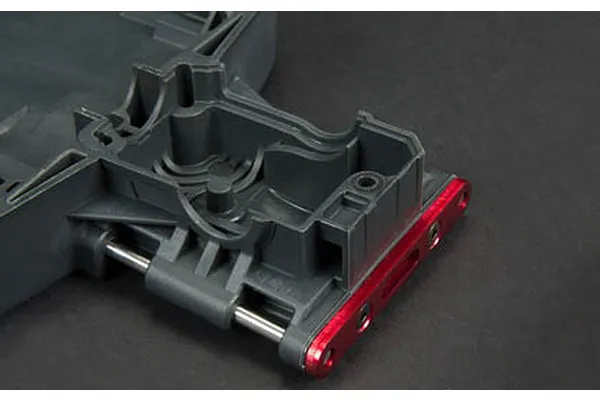

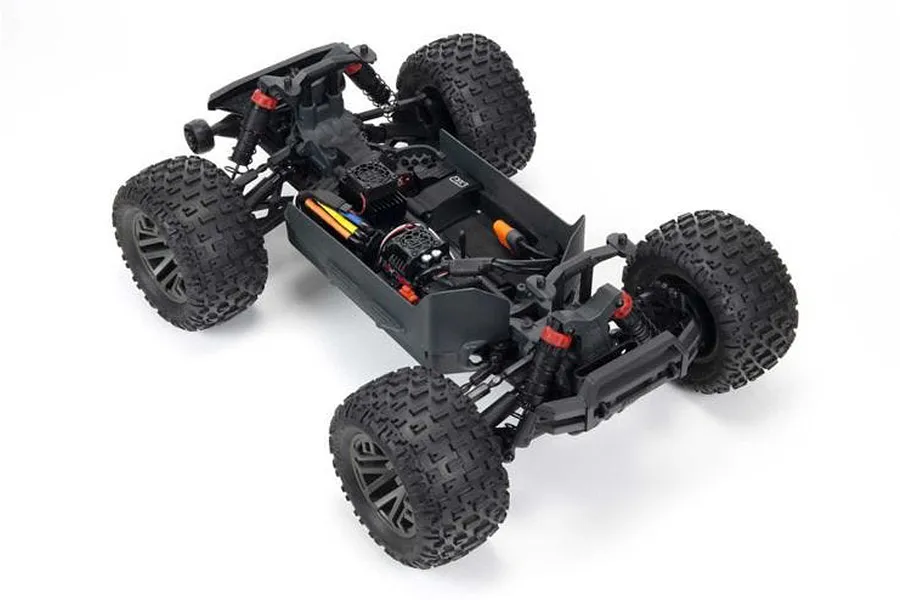

Strengthened Chassis

Strengthened Chassis

Stronger chassis with strengthened hinge pin plates

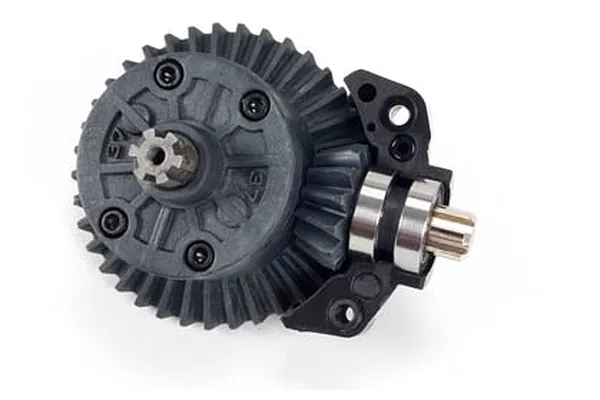

Tougher brushless ready transmission

Tougher brushless ready transmission

ARRMA 4S-Tough Gears with Metal Input Spline for Unstoppable Action!

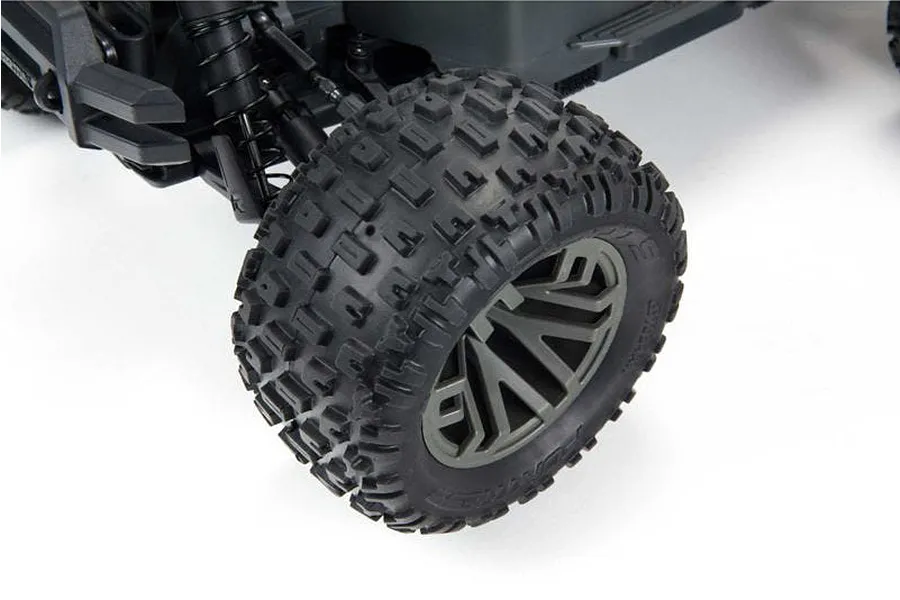

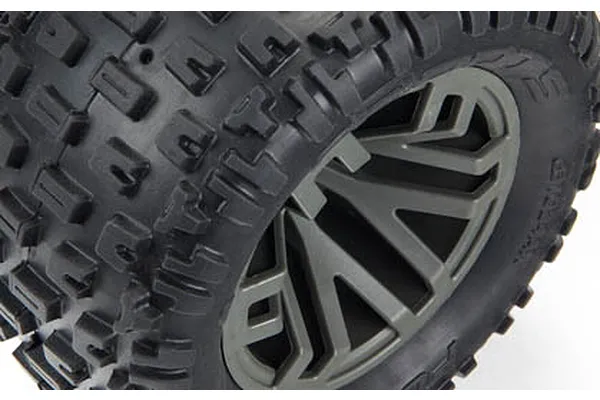

dBoots® Fortress™ MT tyres

dBoots® Fortress™ MT tyres

The GRANITE™ 4X4 3S BLX delivers exceptional grip on various surfaces, thanks to its four dBoots® Fortress™ MT tyres mounted on stylish gunmetal multi-spoke wheels.

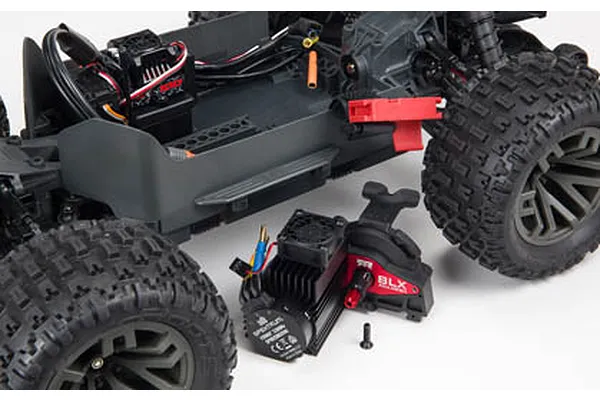

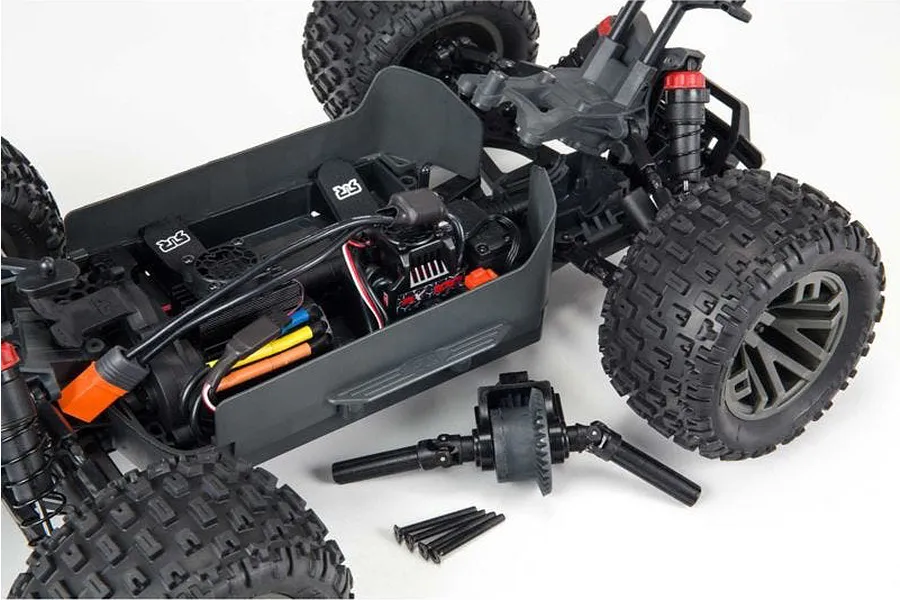

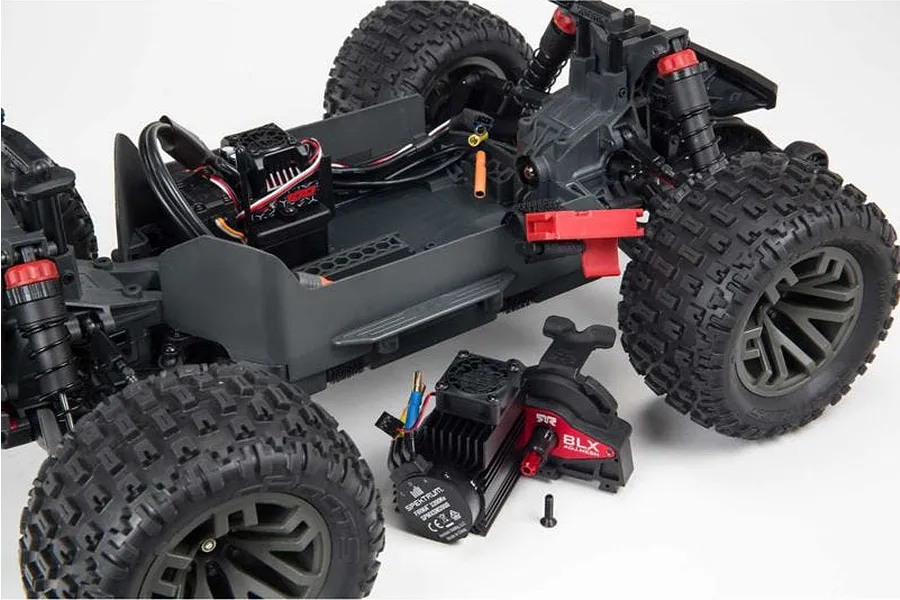

Easy-access power module

Easy-access power module

The Easy-access power module simplifies maintenance by detaching as a complete unit with just one screw. This convenient module includes the motor, motor plate, slipper clutch assembly, and gear cover for quick and hassle-free servicing.

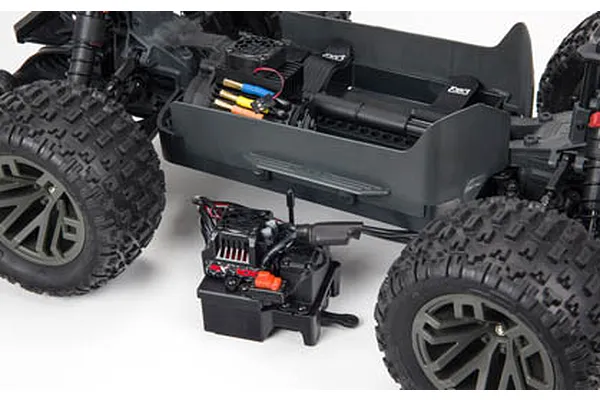

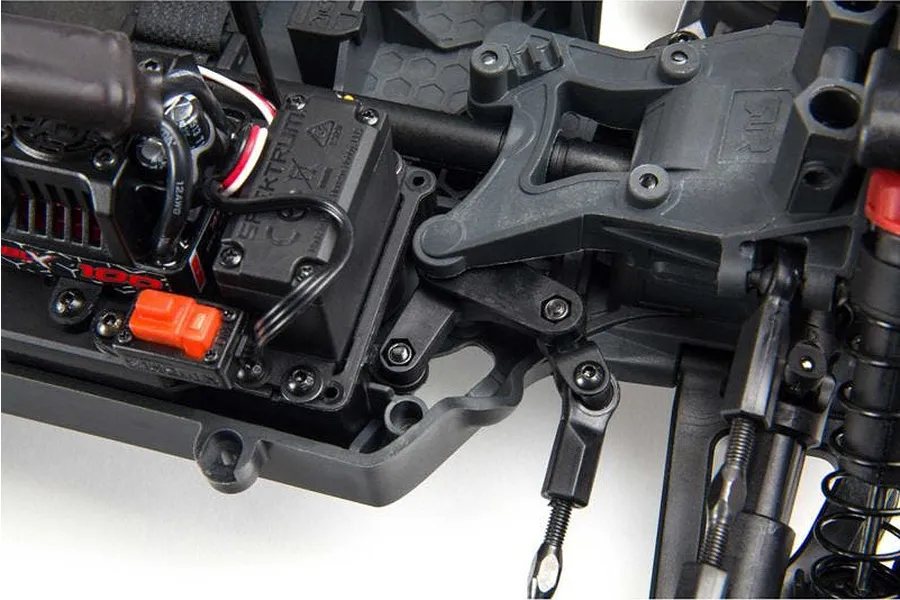

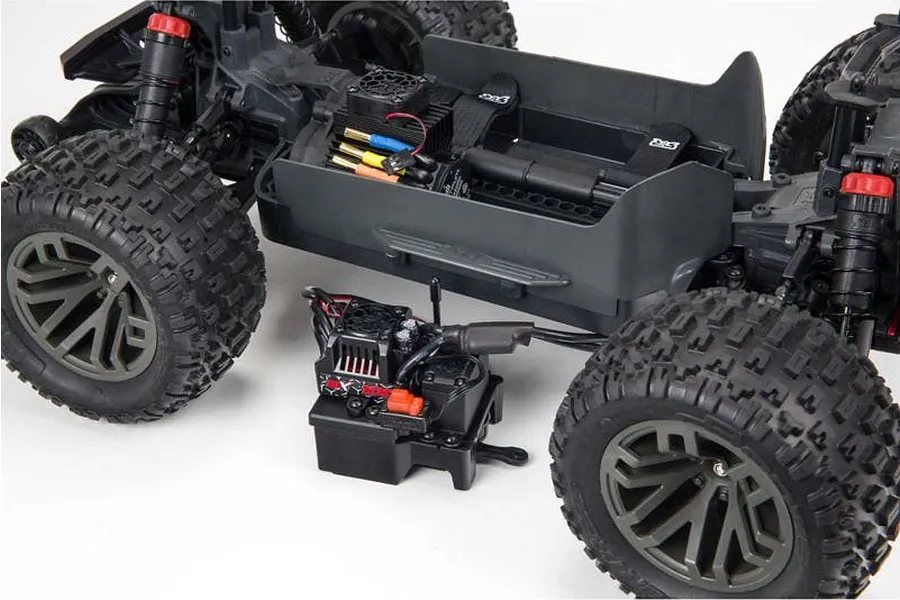

Easy-access Electronics Module

Easy-access Electronics Module

The Easy-access electronics module, featuring a two-piece moulded design securely screwed to the chassis, streamlines maintenance and enhances protection for critical components. It houses a sealed, waterproof receiver box to shield your receiver from the elements, a servo mount for easy access and adjustments, and an ESC tray conveniently positioned for quick maintenance and switch access.

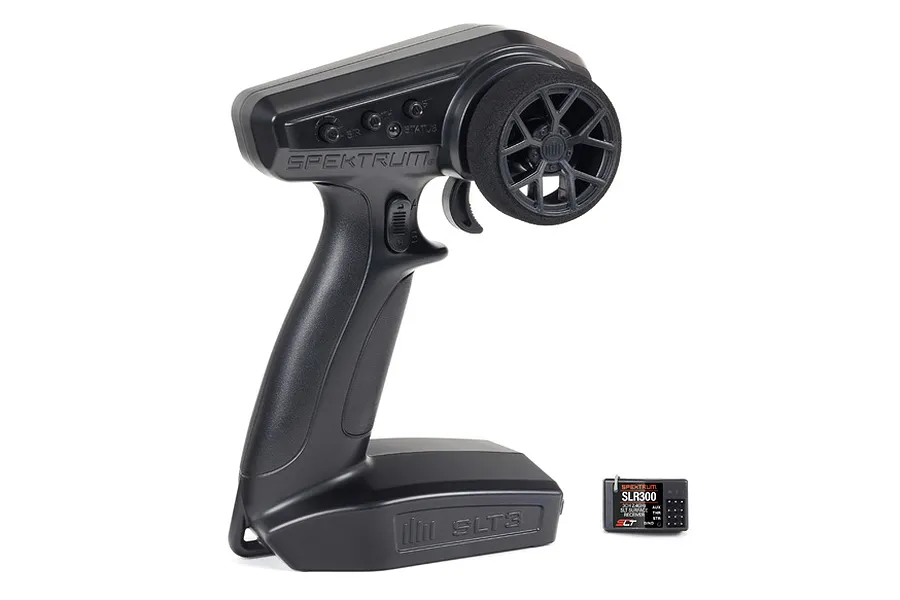

Spektrum™ 3-Channel SLT3™ 2.4GHz Radio and SLR300 Waterproof* Receiver

Spektrum™ 3-Channel SLT3™ 2.4GHz Radio and SLR300 Waterproof* Receiver

The Spektrum™ 3-Channel SLT3™ 2.4GHz radio system, paired with the SLR300 Waterproof* Receiver, offers a reliable and user-friendly experience for RC enthusiasts of all skill levels. The fast-responding SLT™ protocol ensures precise control, while the ergonomic foam wheel and adjustable trigger provide a comfortable and customisable feel. The 2-way thumb switch adds versatility, and the throttle modes make it perfect for beginners. Plus, it's compatible with Tactic® SLT™ receivers for expanded options.

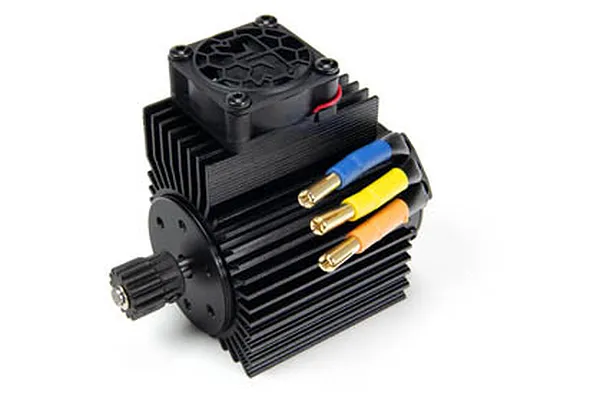

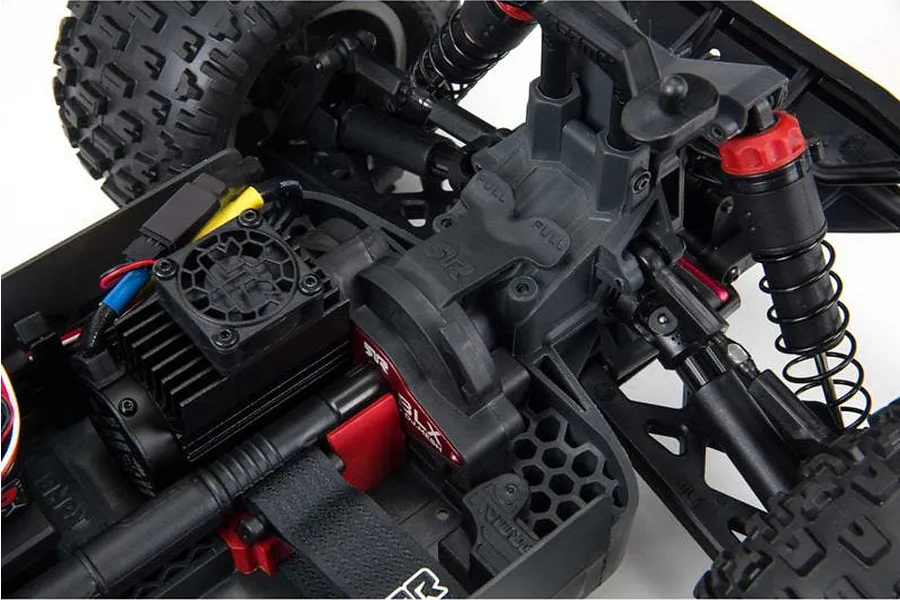

Spektrum™ Firma™ 3660 3200Kv Brushless Motor with Safe D Pinion and ARRMA® Heatsink and Cooling Fan

Spektrum™ Firma™ 3660 3200Kv Brushless Motor with Safe D Pinion and ARRMA® Heatsink and Cooling Fan

The Spektrum™ Firma™ 3660 3200Kv brushless motor, paired with the Safe D pinion, ARRMA® heatsink, and cooling fan, delivers an adrenaline-pumping combination of torque, acceleration, and speed. Push your vehicle to the limits without worry, as the integrated heatsink ensures optimal cooling even during the most extreme driving conditions.

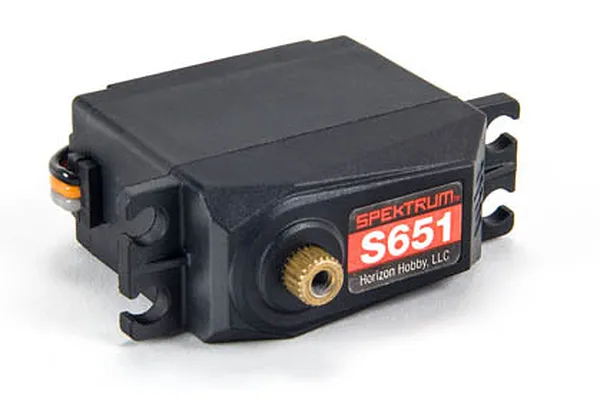

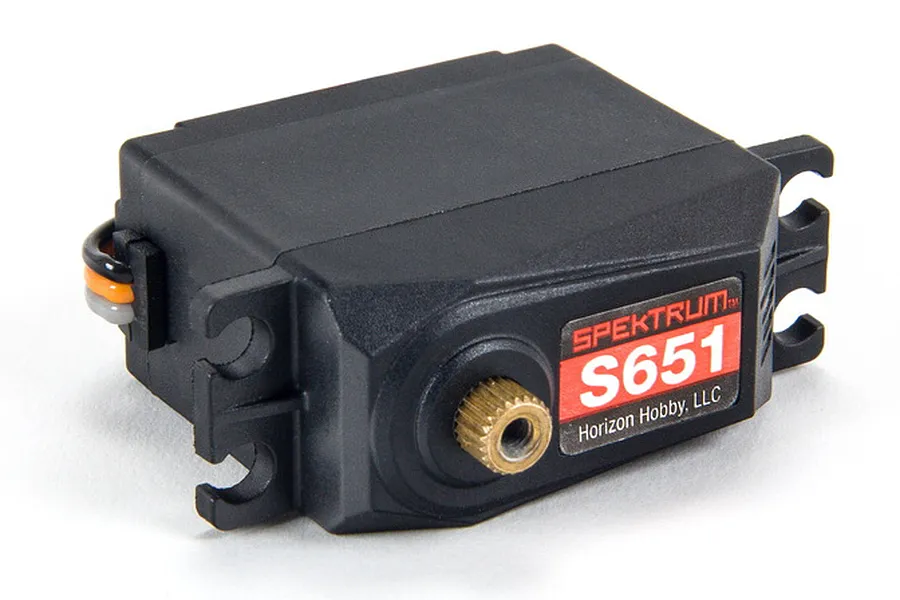

Spektrum™ SPMS651 Metal-Geared Digital Servo

Spektrum™ SPMS651 Metal-Geared Digital Servo

The Spektrum™ SPMS651 Metal-Geared Digital Servo offers a significant upgrade in steering performance, delivering 7.27 kg-cm (101 oz-in) of torque at 6V. That's a 15% increase over the previous ADS-7M servo, providing more precise and responsive control. Plus, its waterproof* construction ensures worry-free operation in any conditions (*See the instruction manual for specific waterproof details).

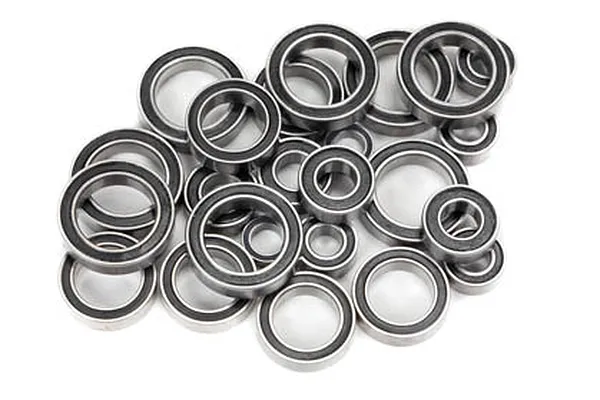

Rubber shielded bearings

Rubber shielded bearings

Rubber shielded bearings enhance your kit's performance by reducing friction and keeping debris out, resulting in smoother operation and longer component life.

Specifications

Length476mm (18.74")
Width342mm (13.46")
Height207mm (8.15")
Weight2.83kg (6.4 lbs) (without battery)
Wheelbase287mm (11.3")
Ground Clearance47mm (1.85")
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionReady to Run
Skill LevelIntermediate, Experienced
Power SourceElectric Brushless
Chassis TypeMonster Truck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorIC5, EC5
Rear Shock Oil500cSt
Front Differential Oil10000cSt
Rear Differential Oil10000cSt
Pinion Gear15T 32dp/0.8Mod
Spur Gear57T 32dp/0.8Mod
Wheel Hex Size14mm

Parts

Top parts for this ARRMA GRANITE 4x4 V3 3S BLX RC Monster Truck Electric Brushless 4WD 1/10 Scale RTR - Green

Shop all parts

Manuals

Reviews (2)

4.0

Based on 2 reviews

  • 5 stars0
  • 4 stars2
  • 3 stars0
  • 2 stars0
  • 1 star0
  • Dylan C

    20 Jan 2025

    Great first RC car, only thing wrong with it is the plastic spur and diff. They have both gone smooth, other than that nothing else wrong with it and is very fast and tough. :)

  • Joel

    23 Feb 2023

    amazing good for a first car
