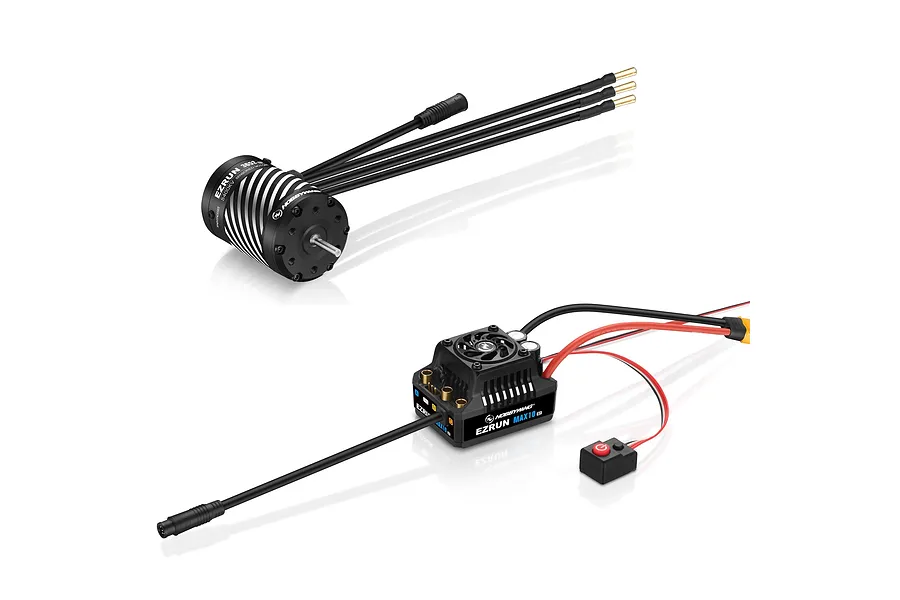

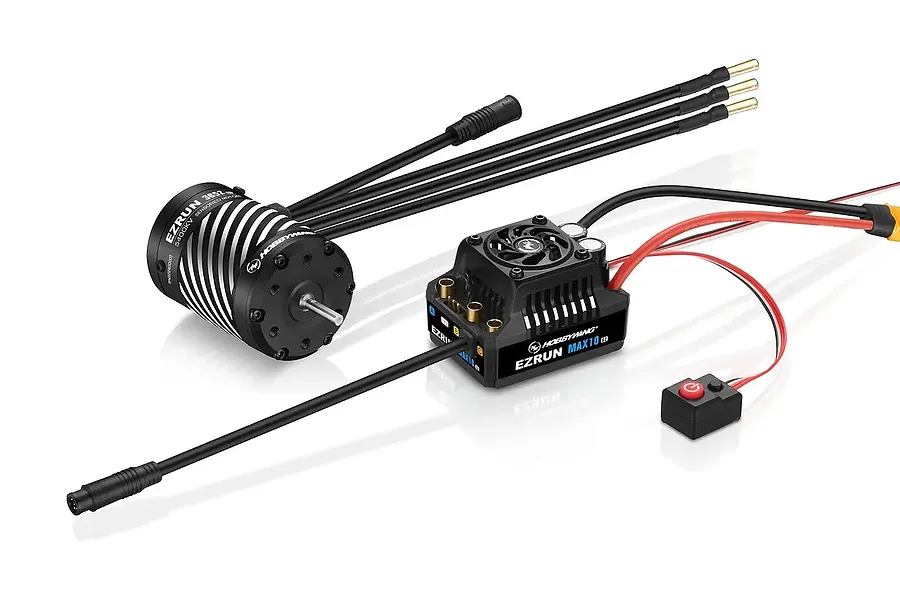

Hobbywing Max10 G2 80A ESC & 3665SD 4100Kv Brushless Motor Combo
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Features
- The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
- Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
- The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
- Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
- Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
- After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
- The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Specifications
- Ezrun Series:3652 SD G3
- KV: 4100
- P/n: 30402605
- LiPo: 2-3S
- R. (?): 0.00696?
- No-load Current: 5.0A
- Timing (deg.): 0
- Motor Diameter & Length: ?=37 / L=53
- Shaft Diameter & Length: ?=3.17 / L=15
- Pole: 4
- Weight (g): 227.9g
Specifications
Motor
-
KVRPM (Revolutions Per Minute) per Volt
- KV
-
Turns
-
LengthLength of the motor can
- mm
-
DiameterDiameter of the motor can
- mm
-
Type
-
Shaft Diameter (mm)
ESC (Electronic Speed Controller)
-
Motor Connectors
-
Battery Connector
-
BEC Voltage
- V
-
Waterproof Design
-
Cooling Method
-
Programmable
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
-
Max Voltage
- V
-
Continuous Amps
- A
-
Dual Motor
-
For Motor Type
Reviews
(3)
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
2 out of 5 stars
7 months ago
Zavier
C
every time i use this motor combo it over heats within 2 min of driving and even after gearing down and not using full throttle on 3s it fails to give me a fun time without overheating after 2 min
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
5 out of 5 stars
10 months ago
Haki
T
No review text provided.
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
5 out of 5 stars
1 year ago
Hamish
A
I got this motor and it works amazing! Wouldn’t buy from anywhere else. Hobbies direct: best prices fastest delivery and easiest website to navigate. The best store in aus by far
