Traxxas 1/5 32.3kg Waterproof Servo

Brand: Traxxas | SKU: 2085X

discontinued

5.0

1 reviews

Shop replacement & upgrade parts for this model

Shop Parts

Loading compatibility information...

Alternative Products

Traxxas Blue Aluminium High-Torque Standard 45kg 7.4V Metal Gear Servo

0 reviews

$297.71

Traxxas Maxx Ultra-High-Torque 1/8 46kg 6V Waterproof Metal Geared Servo - Blue

0 reviews

$279.79

Traxxas 1/5 26.3kg Waterproof Servo

0 reviews

$164.44

View

discontinued

pending availability

Servo, digital high-torque, metal gear (ball bearing), waterproof/ servo saver spring/ steering link

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

TRA-2085 Servo Specifications

Total Height (A) = 63mm
Body Width (B) = 60.5mm
Below Mount (C) = 47mm
Above Mount (D) = 16mm
Total Length (E) = 68mm
Total Width (F) = 25.7mm

Specifications

Servo

Total Length: 68mm
Total Width: 25.7mm
Bottom to Under Mount: 47mm
Top to Under Mount: 16mm
Total Height: 63mm
Body Length: 60.5mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.17
Case Material: Plastic
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 32.3
Waterproof Casing: Yes
Size Conventionally sized servo names: 1/5

Parts

Standard

Same as the original part from the manufacturer.

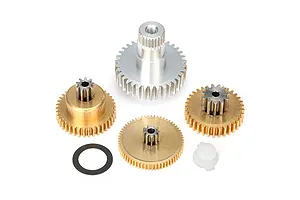

Traxxas 2085 & 2085X Servo Metal Gear Set

1 review

$81.05

Alternatives

Upgrade

An optional part from the manufacturer.

Traxxas 2085 Servo Case w/ Gaskets

0 reviews

$57.82

Aftermarket

A part made by a different manufacturer.

GPM Stainless Steel Tie Rod w/ Spring

1 review

$12.69

Alternatives

Shop Parts

Shop replacement & upgrade parts for this model.

Reviews (1)

Apr 23, 2018

7 years ago

Fung C

Verified Buyer

The 2085x servo is much much better than the standard the 8S xmaxx comes with(the 2085), it's both faster and much more resistant to overheating than the standard servo. Where the standard servo overheated 2 out of 4 times I took it out, then died, the 2085x has performed flawlessly. It also sounds badass due to the metal gears.

Compatibility

Fits 11 Traxxas Models
