Tamiya FF03 Honda Civic R3 J.A.S. Motorsport RC Touring Car Electric FWD 1/10 Scale Kit

Tamiya FF03 Honda Civic R3 J.A.S. Motorsport RC Touring Car Electric FWD 1/10 Scale Kit

Tamiya FF03 Honda Civic R3 J.A.S. Motorsport RC Touring Car Electric FWD 1/10 Scale Kit

Brand: Tamiya | SKU: 58476
discontinued
Description
Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

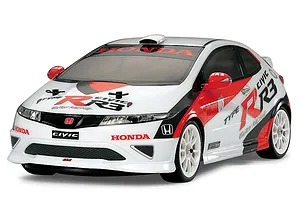

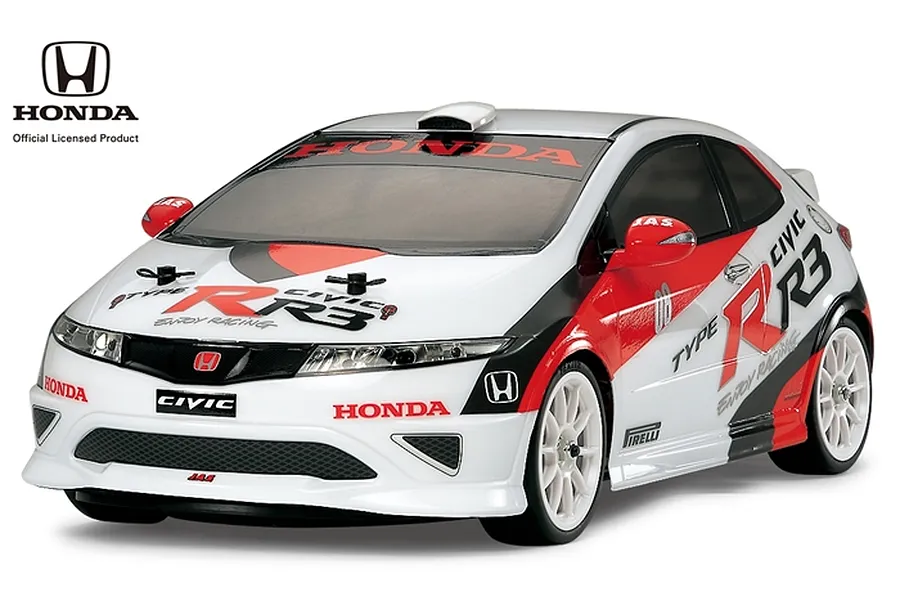

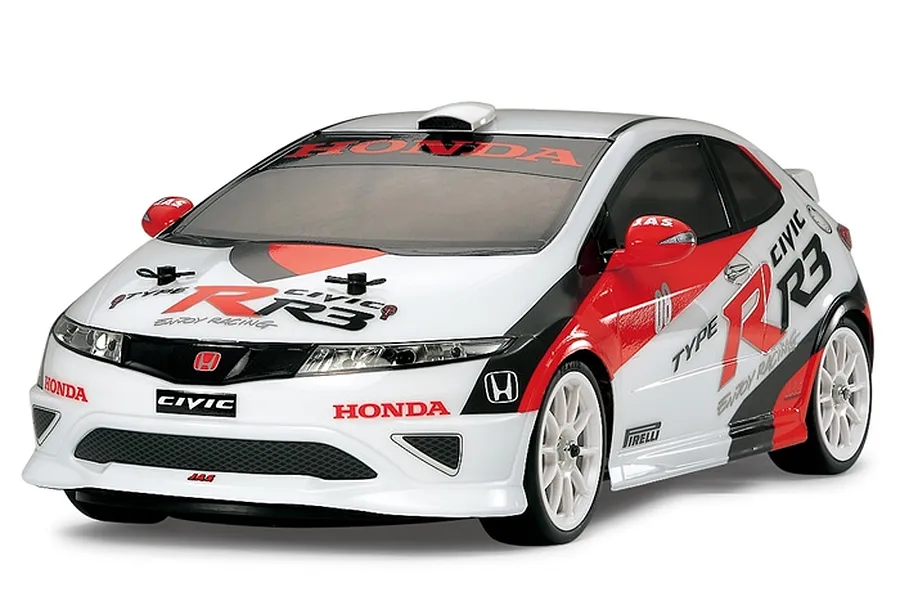

This is a 1/10 R/C assembly model kit of the Honda Civic Type-R R3, developed by Italian official Honda racing partner J.A.S. Motorsport. The form of the 3-door hatchback, which features an air-intake on the roof, has been realistically reproduced. Parts including the roof's air-intake, side mirrors, and rear spoiler are reproduced with separate parts to provide the model with a sharper presence. The kit includes a sticker sheet to faithfully reproduce the red and dark grey livery and the Type-R logos. The Honda Civic Type-R R3 is built on the front-wheel-drive FF-03 chassis.

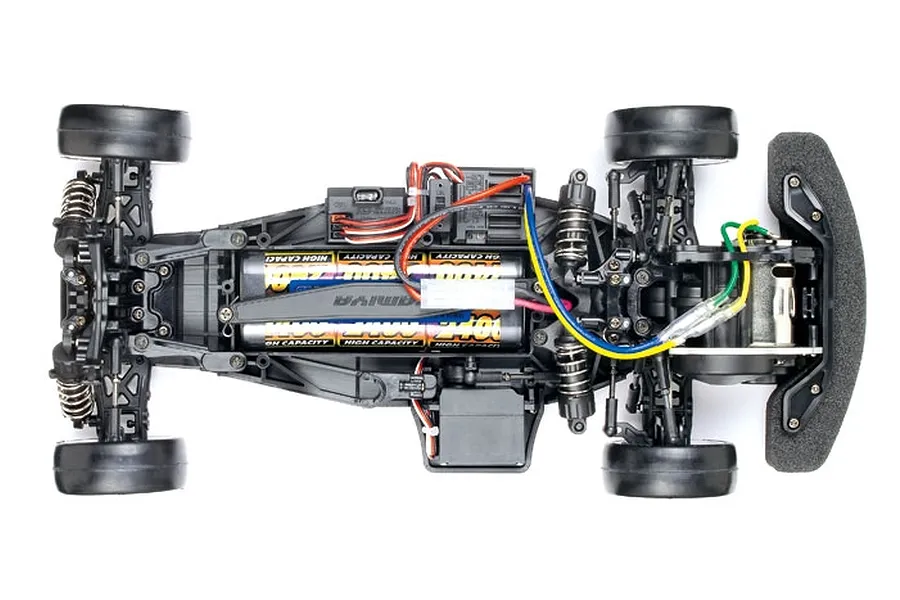

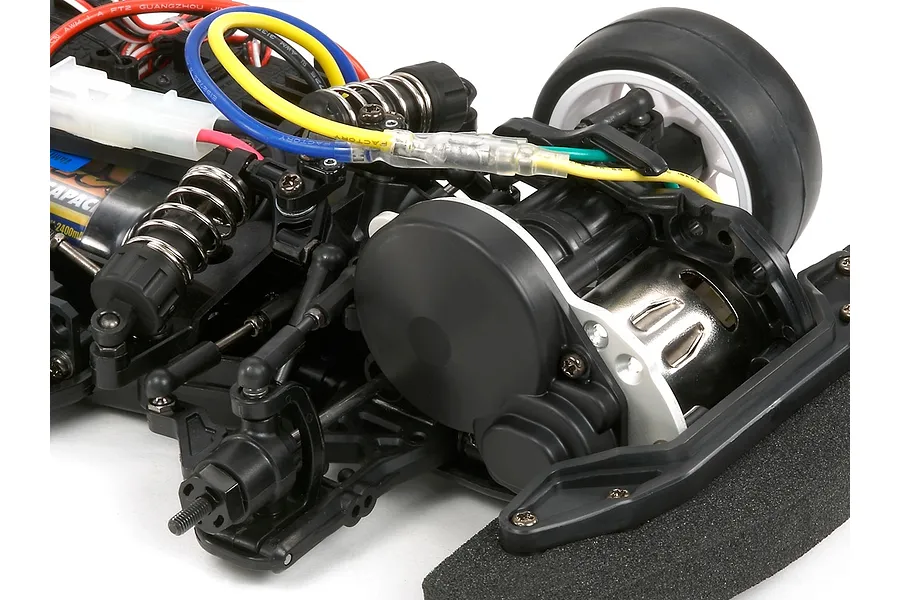

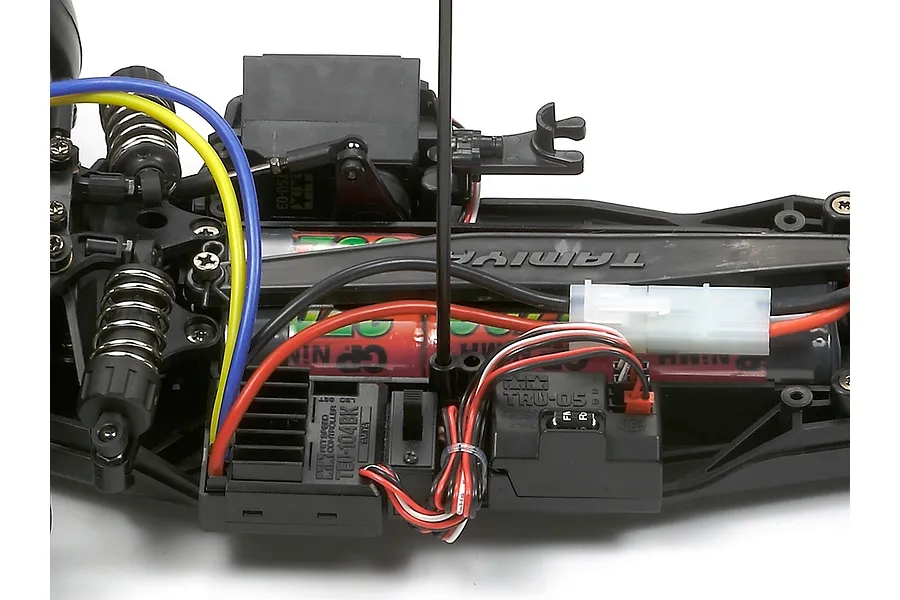

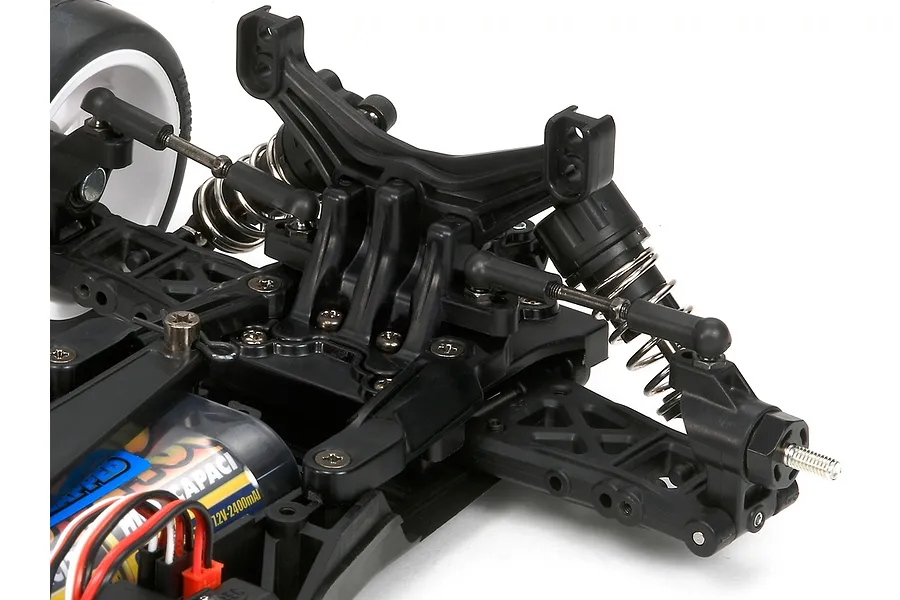

The FF-03 chassis features a longitudinal battery layout for a slim chassis design, with R/C units loaded on either side for optimum balance. The front-mounted, compact gearbox is equipped with a ball differential and provides ample traction. 4-wheel double wishbone suspension features CVA oil dampers. An Inboard Front Suspension set-up with short reversible suspension arms enables well-balanced settings. The rocker bridge is equipped with stabiliser holders. Three wheelbases (257mm, 245mm, 233mm) are possible by changing the rear section assembly.

Features
  • Front-end IFS set-up enables fine suspension settings; compact gearbox with ball differential
  • Longitudinal battery layout enables slim chassis design; R/C units loaded on each side for optimum balance
  • Three wheelbases (257mm, 245mm, 233mm) possible by changing rear section assembly
Specifications
  • Length: 423mm
  • Width: 188mm
  • Height: 140mm
  • Wheelbase: 257mm (257, 245, 233mm adjustable)
  • Tread (F/R): 157mm
  • Bathtub Type Frame Chassis
  • Front Motor Front Wheel Drive (FF)
  • Ball Differential Gear
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • CVA Shock Unit Super Mini
  • Tire Width/Diameter (F/R): 24mm / 64mm
  • Gear Ratio: 6.80:1
  • Type 540 Motor Included
Required Items
  • Radio
  • ESC
  • Steering Servo
  • Battery
  • Charger
  • Paint
  • Tools
Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Specifications
RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Car
On/Off Road
On Road
Drivetrain
2WD
Factory Specs
