Tamiya TC-01 Formula E Gen2 RC Formula E Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. 58681

Discontinued5.0
1 review
1 / 6
1 / 6

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

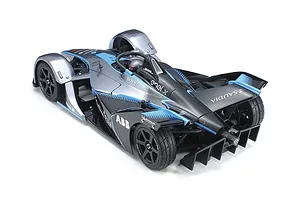

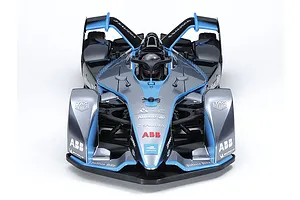

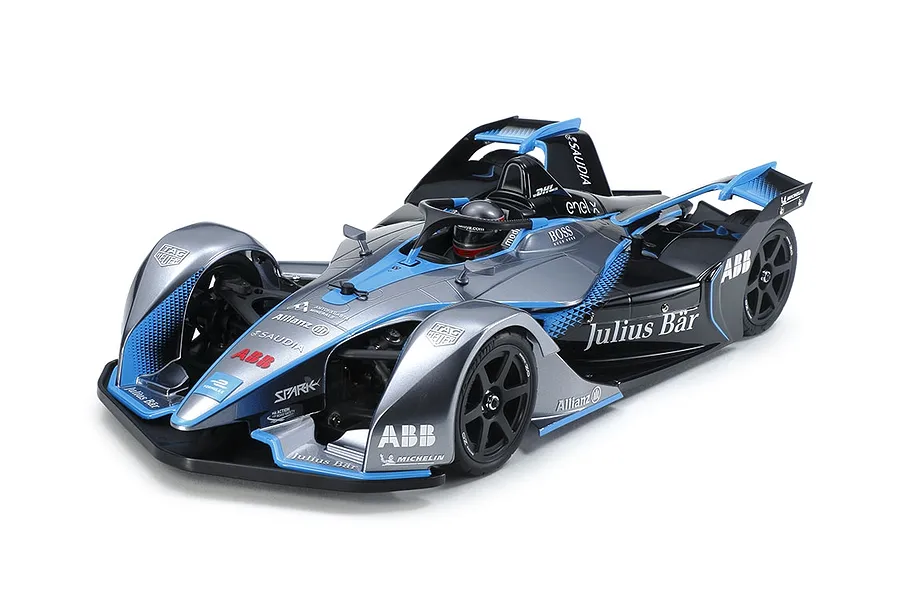

This is an R/C model assembly kit depicting the GEN2 car used from 2018 in the Formula E championship, the pinnacle of electric car racing. The sleek, high-tech body with arch-covered wheels is recreated in polycarbonate. Halo, mirrors and rear diffuser/bumper are separately moulded components. Markings are included to recreate the Championship Livery car. The model is based upon the shaft-driven 4WD of the TC-01 chassis.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

  • TC-01: Seriously Low-Profile

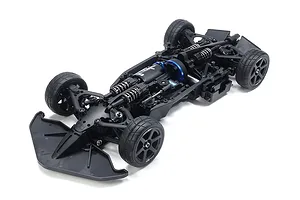

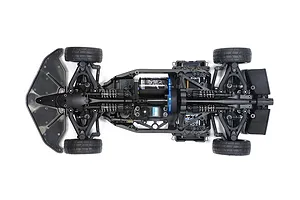

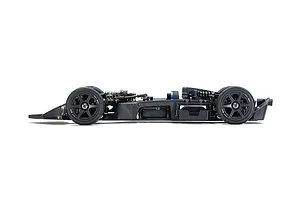

  • This durable composite monocoque-frame chassis provides shaft driven 4WD from a central motor via front and rear propeller shafts, with oil filled gear differentials. 4-wheel independent double wishbone suspension employs long arms, plus inboard setups front and rear with oil shock-dampers actuated by push rods and rocker arms to allow the use of low-profile bodies. Adjust spacer width to easily alter camber, skid and toe angle settings. Both suspension arms and uprights are identical left, right, front and rear, for more efficient maintenance and pit work.

You'll need

  • Radio
  • ESC
  • Low Profile Steering Servo
  • Type 540 Motor
  • Battery
  • Paint
  • Tools

Specifications

Specification1/10 scale RC assembly kit
Length430mm, Width: 188mm, Height: 99mm
Wheelbase257mm
Tire Width/Diameter24/64mm (Front & Rear)
SpecificationComposite Monocoque-Frame Chassis
SpecificationShaft-Driven 4WD
SpecificationFront & Rear Oil-Filled Gear Differentials
Specification3-Piece Steering Tie-Rod
SpecificationFront & Rear Inboard 4-Wheel Independent Double Wishbone Suspension
SpecificationCVA Oil Dampers (Front & Rear)
Gear Ratio = 6.561 (with kit 24T pinion)
SpecificationUse of different spacers allows alteration of camber, caster and toe angles
SpecificationChange bumpers and body mounts to switch between formula and touring car layouts
SpecificationShaft-driven 4WD layout uses TB-05 design oil-filled gear differentials
SpecificationPolycarbonate body
SpecificationHalo and mirror components moulded in white ABS
SpecificationCompatible with standard touring car measurement bodies (Wheelbase: 257mm)
SpecificationStickers included to recreate the championship car livery
SpecificationCompatible with IFMAR standard “square-shape” dimension battery packs

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

Reviews (1)

5.0

Based on 1 review

  • 5 stars1
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0

  • Robert B

    Verified buyer

    11 Oct 2021

    This is a great Kit , the body build is the most difficult so take your time and don't rush.Looks great and well worth the price.
