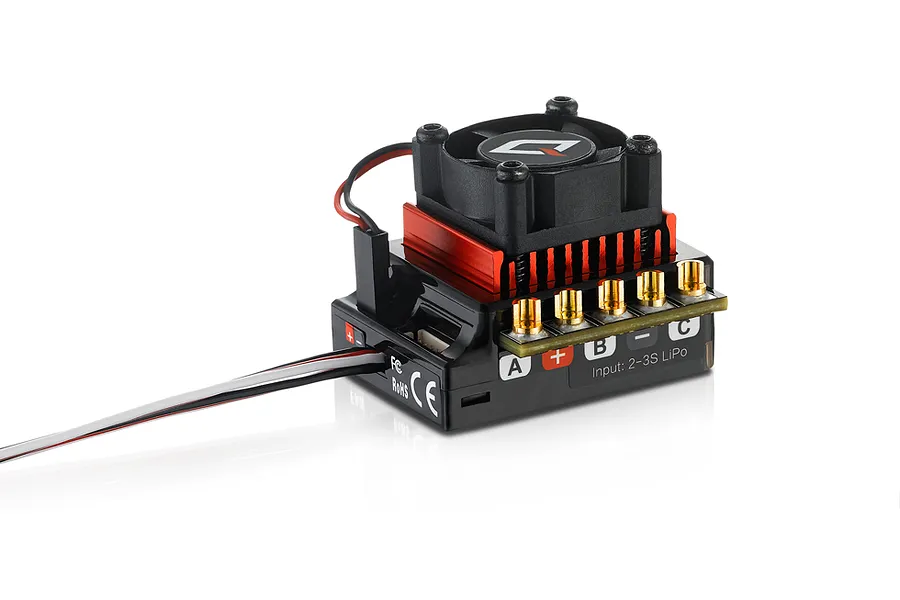

Hobbywing QUICRUN 10BL60 Sensored 60A Brushless ESC

Hobbywing QUICRUN 10BL60 Sensored 60A Brushless ESC

Hobbywing QUICRUN 10BL60 Sensored 60A Brushless ESC

Brand: Hobbywing | MPN: 30108000
discontinued
5.0
1 reviews
Description

The QuicRun 10BL60 sensored ESC is specially designed for new beginners and intermediate modelers. This speed controller is designed for practice and daily training of 1/10th, 1/12th scale touring cars, buggies, F1 and draft cars as well as 1/10th scale rock crawlers.

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN 10BL60, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.

With the compact design, it's applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it's compatible with different motors and brings racers two different control feel.

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Features
  • High Reliability & Durability
  • Efficient Cooling System
  • Easy Operation
  • Compact Design & SD/SL Dual Mode Supported
  • Single-button Programming & Factory Reset
Note

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications
Scale
1/10th
Brushed/Brushless
Brushless
Sensored/Sensorless
Sensored
Waterproof
No
Cont./Peak Current
60A/380A
Input
2-3S LiPo/6-9 Cells NiMH
BEC Output
Switch Mode: 6V/2A
Input Wires
Red-12AWG-200mm x1 / Black-12AWG-200mm x1
Output Wires
Blue-12AWG-200mm x1 / Yellow-12AWG-200mm x1 / Orange-12AWG-200mm x1
Input Connectors
No
Output Connectors
No
Fan Size
25.0x25.0x10.0mm
Fan Voltage Range
5-8.4V
Size
59.5x48.0x42.0mm
Weight
59g

ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
No
Continuous Amps
60A
Motor Connectors
N/A
Battery Connector
N/A
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V
Dual Motor
No
