Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit

Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit image 36689

Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit image 36690

Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit image 36691

Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit image 36692

Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit

Brand: Tamiya | SKU: 58625

sold out

write a review

$206.53

Tamiya Motul Autech NISMO GT-R RC Kit: Versatile TT-02 4WD Chassis for Balanced Performance

Perfect for all skill levels
4WD Shaft-Driven for superior control
Compatible with a wide range of upgrade parts
Highly customisable
Adjustable chassis length

Add to Wishlist

Save Time & Add These Now

Complete your setup with these required items.

Traxxas Power Cell 1.5v AA Batteries 4Pcs

$11.10

Transmitter Batteries

Tornado 7.2v 5000Mah NiMH Battery

$53.85

Battery

Power HD Standard 1812MG 18kg Metal Geared Waterproof Servo

$33.64

Steering Servo

FlySky FS-GT2F 2.4Ghz 2ch Radio w/ FS-A3 Receiver

$51.92

Transmitter & Receiver

Traxxas Curved Hobby Scissors

$26.82

Body Shell Scissors

Yeah Racing 185x75mm LiPo Safe/Protection Bag

$19.95

LiPo Safe Charging Bag

SkyRC T200 Dual Port AC/DC Smart Charger

$175.14

Charger

Traxxas Body Reamer

$76.09

Body Shell Reamers

Shop replacement & upgrade parts for this model

Shop Parts

Description

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

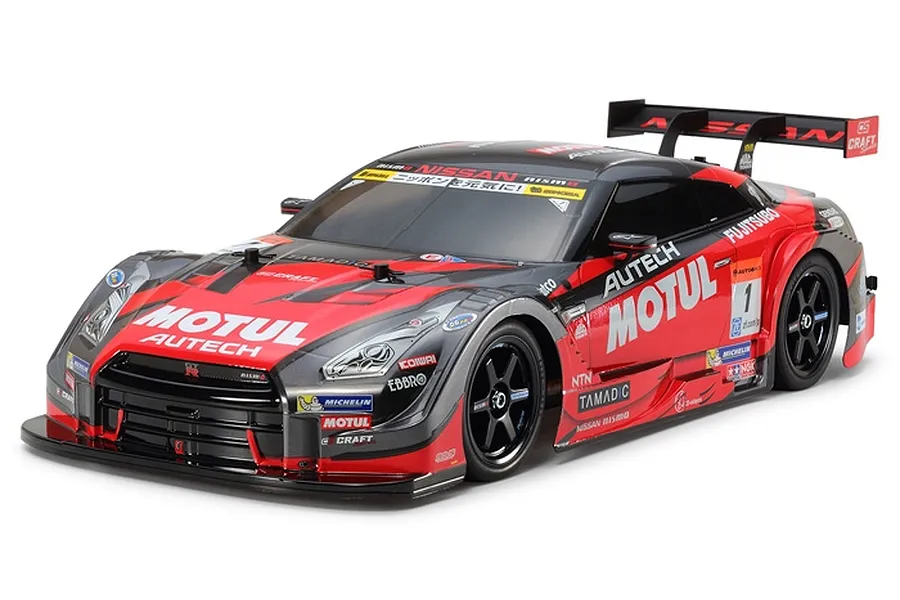

Build and drive a champion with this 1/10 scale radio control assembly kit recreating the Motul Autech NISMO GT-R, winner of the 2014 Super GT Series GT500 class. The kit features a highly detailed, clear polycarbonate body shell capturing the aggressive lines of the actual race car.

Underneath sits the versatile and user-friendly TT-02 chassis. This shaft-driven 4WD platform uses a balanced longitudinal layout (battery left, motor right) for excellent stability. Assembly is simplified with identical left/right suspension arms and uprights, plus easy-to-maintain gearboxes. The TT-02 is highly adaptable, offering adjustments for wheelbase, ground clearance, and track width, along with ten possible gear ratios.

Features include a tough bathtub frame, 4-bevel differentials, a smooth 3-piece steering linkage, 4-wheel double wishbone suspension with friction dampers, and stylish brake disc-shaped wheel hubs. Black 6-spoke wheels with slick tyres and a standard 540 brushed motor are included to get you started. Enjoy the build process and then hit the track with this iconic GT racer.

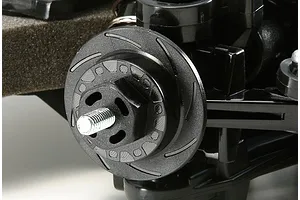

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

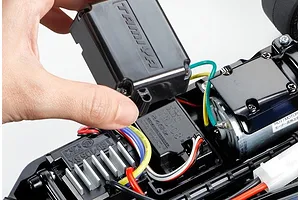

Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.

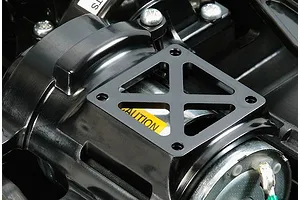

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

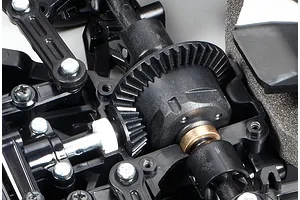

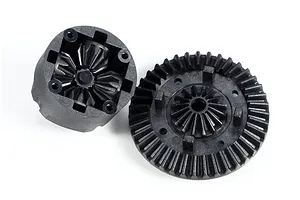

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

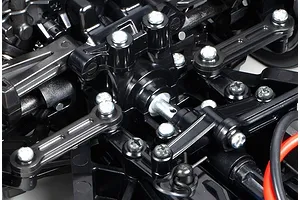

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Features

Highly Detailed 1/10 Motul Autech GT-R clear polycarbonate body shell
Super Tough Bathtub Type Chassis
Balance Longitudinal Chassis Layout
Adjustable Wheelbase
Shaft-Driven 4WD System
Front/Rear 4 Bevel Resin Differentials
3-Piece Steering Tie-Rod System for Superior Handling
4-Wheel Double Wishbone Suspension
Front/Rear Friction based shock absorbers
Powerful Brushed 540 motor is included
Genuine Tamiya Product

Specifications

Length: 472mm (18.5")
Width: 188mm (7.40")
Height: 124mm (4.88")
Wheelbase: 257mm (10.1")
Weight: Varies
Chassis: Bathtub Type Plastic Chassis (On Road Car)
Drivetrain: 4WD
Suspension: Coil Over Shock Absorbers
Motor: Tamiya 540 Sized Brushed Electric Motor
ESC: Tamiya Brushed ESC

Included Items

1x Tamiya TT-02 Nissan Motul Autech NISMO GT-R RC Touring Car Electric 4WD 1/10 Scale Kit
1x set of Decals
1x 540 Sized Brushed Motor
1x Brushed ESC
1x Product Manual

Required Items

1x Compatible 7.4V LiPo Battery or 7.2V NiMH
1x Compatible Charger
Polycarbonate Safe Paint
1x Compatible 1/10 Scale Servo
1x 2+ Channel Transmitter & Receiver
AA Batteries For Chosen Transmitter

Specifications

Factory Specs

RC Car

Drivetrain: 4WD
Completion: Kit
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushed
Skill Level: Intermediate
Scale: 1/10
