Name: Tamiya TT-02D Nissan Skyline GT-R R33 RC Drift Car Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58604
Price: 239.11 AUD
Availability: OutOfStock

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

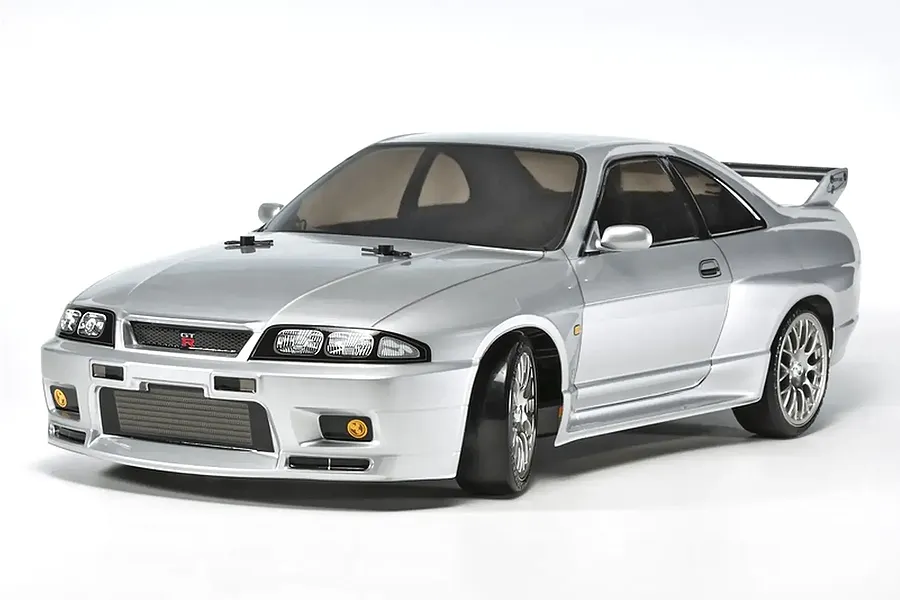

The 1995 Tokyo Auto Salon was the stage for the announcement of the high-performance R33, 4th generation of the Nissan Skyline GT-R. It featured a wider, strengthened body compared to the R32, and its form is faithfully depicted by this model in durable polycarbonate. Door mirror and rear wing are recreated using separate parts. Choose between different rear wing angles.

The TT-02D is a drift spec shaft driven 4WD chassis which offers thrilling drift action. It features drift spec parts such as 24mm width drift tyres fitted to stylish matte-finish metal-plated wheels, and CVA shocks on the 4-wheel double wishbone suspension. Reinforced resin uprights, damper stays and more contribute to the chassis' tough suspension. Semi-gloss metal-plated parts such as brake disc-shaped wheel hubs and blue battery holder will catch the eye. Full ball bearings, an aluminium motor heat sink, and a sport-tuned motor come as standard. The chassis retains the original TT-02's excellent drivability, ease of maintenance, and adaptability.

Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

The distinctive, powerful body of the R33 is recreated in durable polycarbonate
The TT-02D is the specially tuned drift spec of the popular shaft-driven 4WD entry chassis, the TT-02
Features CVA oil-filled shocks & full ball bearings
Includes Tamiya TBLE-02s speed control and brushed 540 sport tuned motor with an aluminium heat sink
Stickers and masking stickers are included in the kit
Mesh-type wheels are paired with super driftech tyres
Super Tough Bathtub Type Chassis
Balanced Longitudinal Chassis Layout
Adjustable Wheelbase
Shaft-Driven 4WD System
Front/Rear 4 Bevel Resin Differentials
3-Piece Steering Tie-Rod System for Superior Handling
4-Wheel Double Wishbone Suspension
Front/Rear Friction Shocks
Powerful Brushed 540 motor

In the box

1/10 Nissan Skyline GT-R (R33) Kit x1

You'll need

7.2V NiMH Battery & Compatible Charger
4 x AA Batteries
Standard Sized Servo
2Ch Transmitter & Receiver
Tamiya PS Paint

Highlights

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

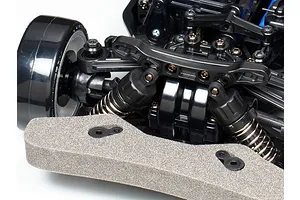

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.

Oil Filled Shocks

The TT-02D chassis incorporates a double-wishbone suspension system, equipped with oil filled CVA shock absorbers for improved handling and stability.

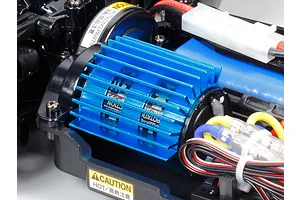

Sport Tuned Motor

The TT-02D comes with the more powerful sport tuned brushed motor. With a sleek black can, this motor is paired with an eye-catching aluminium heat sink to ensure long-lasting and consistent performance.

Drift Tyres

The TT-02D Comes with a full set of hard plastic tyres that are designed to make drifting easy. Simply install them on the provided rims and you'll be sideways before you know it.

Specifications

Length	464mm (18.2")
Width	184mm (7.24")
Height	136mm (5.35")
Wheelbase	257mm (10.1")
Body Shell	Clear Polycarbonate
Chassis Type	TT-02D
Construction Type	Assembly Kit
Motor	Type 540 Brushed
Electronic Speed Control (ESC)	Tamiya TBLE-02s
Motor Mount	Longitudinal
Wheel Drive	4WD
Bearings	Full
Gear Ratio	Adjustable
Friction Shocks	Front & Rear
	4-Wheel Independent Double-Wishbone Suspension
Terrain Use	On-Road
