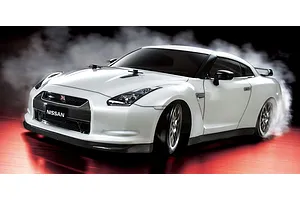

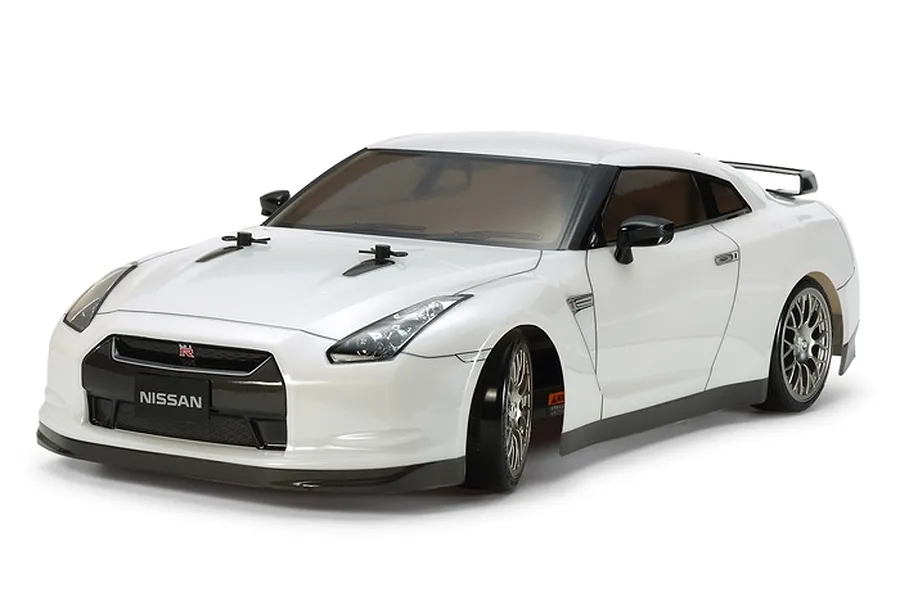

Name: Tamiya TT-02D Nissan GT-R RC Drift Car Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58623
Price: 321.56 AUD
Availability: Discontinued

Recommended products

FlySky FS-GT2 2.4Ghz 2ch Radio w/ Receiver
9 reviews
$57.39
Power HD Standard LF-13MG 13kg Metal Geared Servo
9 reviews
$39.99
G.T. Power N802 NiMH/NiCad Charger
8 reviews
$31.52
Sold out
Gens Ace 7.2v 3000Mah NiMH Battery
$54.16

Overview

The GT-R supercar was unleashed on the world by Nissan in December 2007. Laden with a powerful 3.8-litre V6 twin-turbo engine, dual clutch transmission, independent transaxle 4WD and more, it was designed to be a supercar ready to be driven any time, anywhere and by anyone.

This R/C model assembly kit recreates the car as a drift spec model on the TT-02D chassis, which comes with drift-specific parts. The TT-02D features drift spec parts such as 24mm width drift tyres fitted to stylish matte-finish metal-plated wheels, and CVA shocks on the 4-wheel double wishbone suspension. Reinforced resin uprights, damper stays and more contribute to a tough suspension. Semi-gloss metal-plated parts such as brake disc-shaped wheel hubs and blue battery holder add visual appeal. Full ball bearings, an aluminium motor heat sink, and a sport-tuned motor come as standard.

Note

This kit comes without an Electronic Speed Control — see compatible ESC options separately. This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Sleek, powerful GT-R form faithfully captured by the polycarbonate body
Separately moulded side mirror and rear wing parts
TT-02D drift-spec version of the popular shaft-driven 4WD TT-02 chassis
CVA oil-filled shocks, full ball bearings, Sport-Tuned motor and aluminium motor heat sink
Stickers and masking stickers included in the kit
24mm width drift-spec tyres on metal-plated mesh wheels
Super tough bathtub type chassis
Balanced longitudinal chassis layout
Adjustable wheelbase
Shaft-driven 4WD system
Front/rear 4-bevel resin differentials
3-piece steering tie-rod system for superior handling
4-wheel double wishbone suspension
Front/rear friction shocks

In the box

1x 1/10 TT-02D Nissan GT-R Kit

You'll need

7.2V NiMH Battery & Compatible Charger
4 x AA Batteries
Standard Sized Servo
2-Channel Transmitter & Receiver

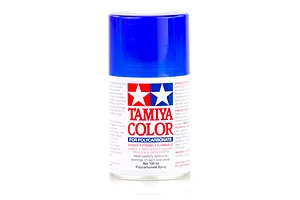

Tamiya PS Polycarbonate Paint

Highlights

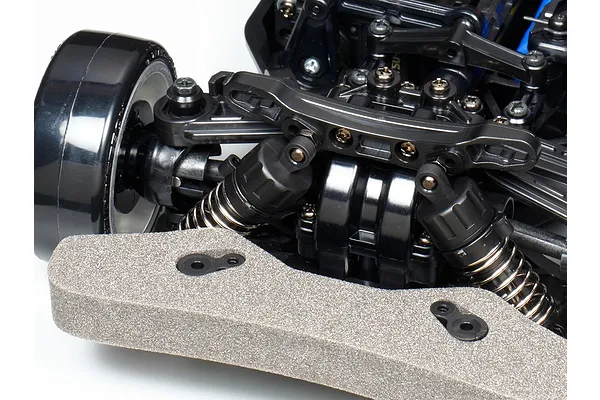

TT-02D chassis overview illustration

The TT-02D is the specially tuned drift spec of the popular shaft-driven 4WD entry chassis, the TT-02, featuring CVA oil-filled shocks, full ball bearings, a Sport-Tuned motor and aluminium motor heat sink.

TT-02D suspension arms and CVA shocks

Race-proven reversible suspension arms and CVA oil-filled shocks, complete with soft springs on 3mm-thick FRP mounts.

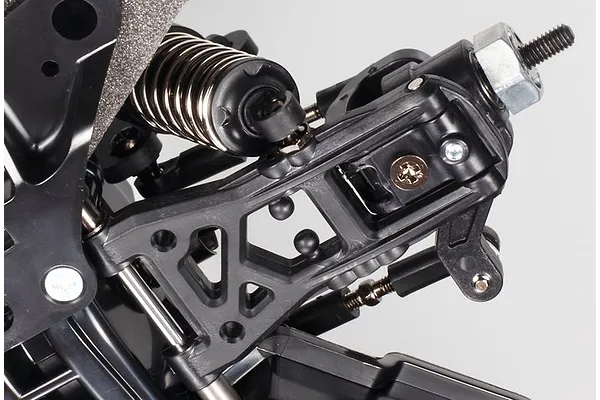

TT-02D 4-wheel double-wishbone suspension with drift tyres

4-wheel double-wishbone suspension is fitted with CVA oil-filled shocks front and rear with drift spec 24mm width resin tyres.

TT-02D mesh wheels and drift tyres

Mesh-type wheels are paired with super driftech tyres; 24mm width drift-spec tyres on metal-plated mesh wheels.

Specifications

Length	444mm (17.4")
Width	187mm (7.36")
Height	130mm (5.11")
Wheelbase	257mm (10.1")
Body Shell	Clear Polycarbonate
Chassis Type	TT-02D
Construction Type	Assembly Kit
Motor	Type 540 Brushed
Electronic Speed Control (ESC)	Tamiya TBLE-02
Motor Mount	Longitudinal
Wheel Drive	4WD
Bearings	Full
Gear Ratio	Adjustable
Friction Shocks	Front & Rear
Suspension	4-Wheel Independent Double-Wishbone
Terrain Use	On-Road
