Tamiya TT-02R RC Car Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya TT-02R RC Car Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya TT-02R RC Car Electric 4WD 1/10 Scale Kit (No ESC)

Brand: Tamiya | SKU: 47326
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

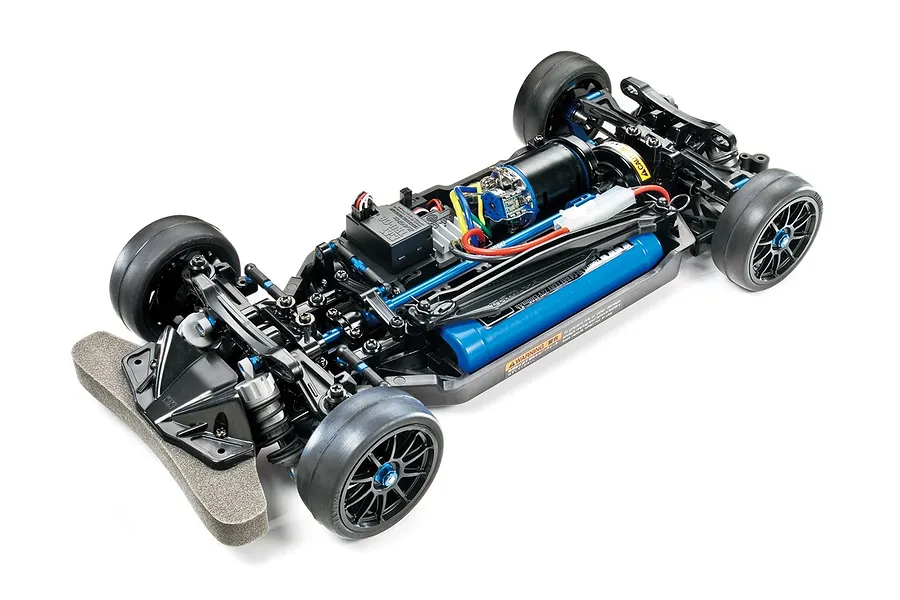

Take your RC racing to the next level with the Tamiya TT-02R. This 1/10 scale electric 4WD kit is a performance-driven evolution of the popular TT-02 chassis, packed with hop-up options designed to give you the edge on the track.

Experience superior handling and stability with aluminium rear uprights providing a 3-degree toe-in, while the aluminium motor mount enhances rigidity and heat dissipation. The drivetrain is built for reliability and efficiency, featuring full ball bearings, an aluminium propeller shaft, and metal drive shafts and joint cups. The CVA oil dampers and black coil springs deliver smooth, predictable performance, even in high-speed corners.

Whether you're a seasoned racer or just starting your journey, the TT-02R is ready to take you to the front of the pack.

Lightweight & Efficient Drivetrain

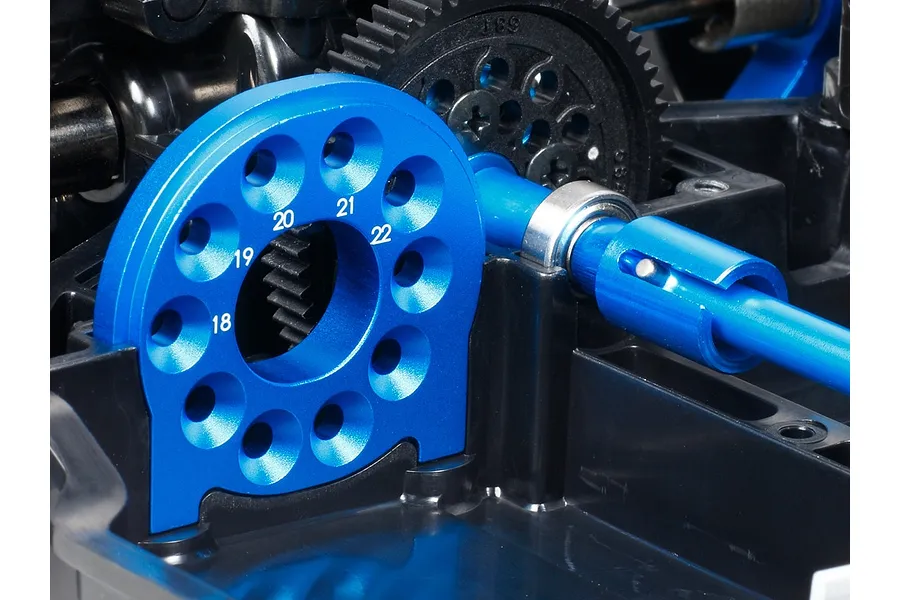

The aluminium motor mount, propeller shaft, and propeller joint reduce rotating mass for snappier acceleration and improved handling. This lightweight construction translates to a more responsive and agile driving experience.

Precision & Durability

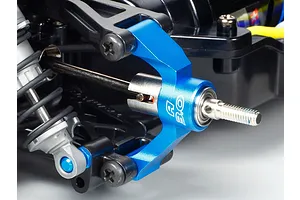

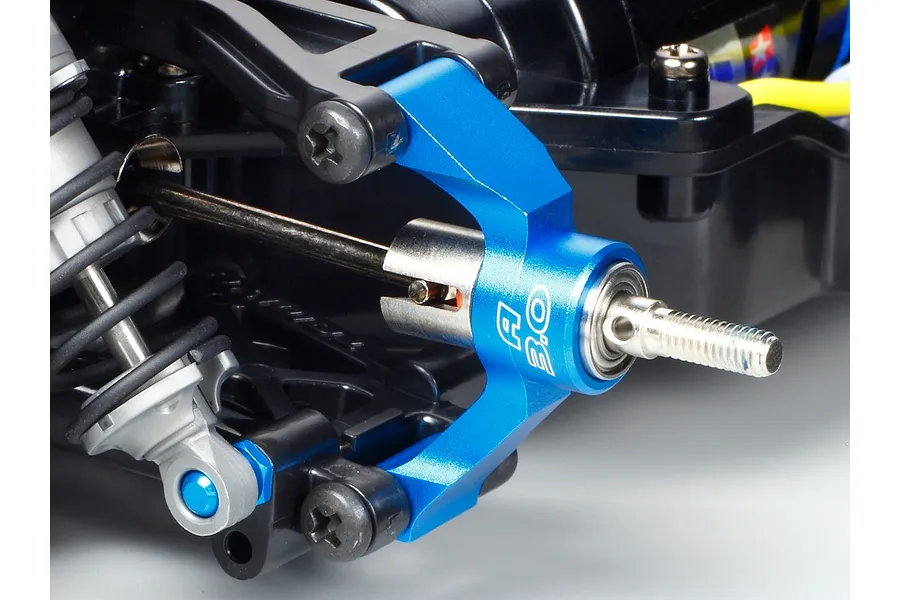

Aluminium rear uprights with built-in 3-degree toe-in enhance rear-end stability and cornering performance. The metal drive shaft, gearbox joint, and wheel axles ensure long-lasting performance even under the most demanding driving conditions.

Smooth & Controlled Damping

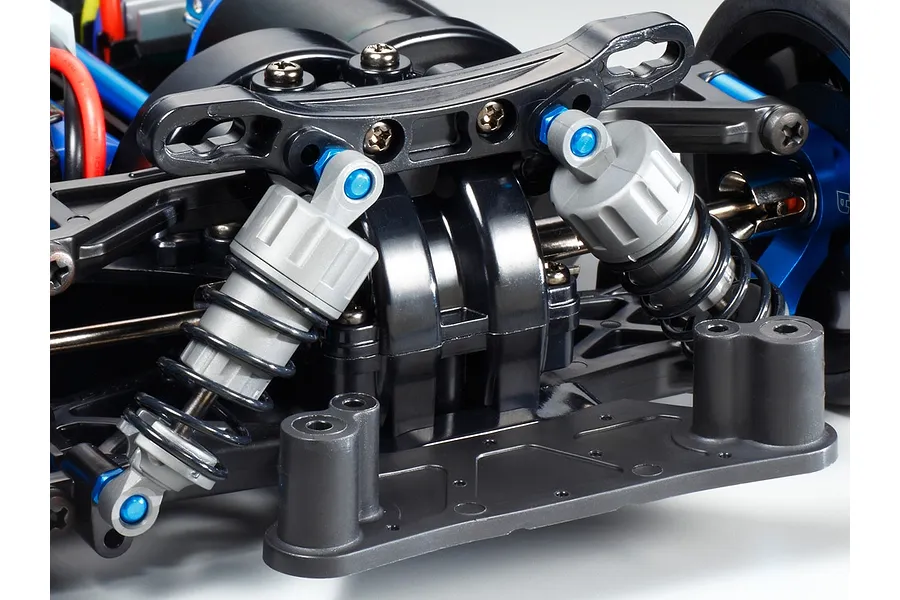

CVA oil dampers with black springs provide smooth and consistent damping action, absorbing shocks and maintaining tire contact for improved traction and control on any terrain.

Features
  • Race-spec TT-02R chassis
  • TT-02 Full Ball Bearing Set
  • Metal Drive Shafts, Wheel Axles and Gearbox Joints
  • CVA Oil Dampers & Springs
  • 68T and 64T spur gears. Combine with separately-sold pinions for Gear Ratio from 9.82:1 to 5.74:1
  • Genuine Tamiya Product
Specifications
  • Length: 376mm (14.80")
  • Width: 182mm (7.17")
  • Height: Varies
  • Wheelbase: 257mm (10.12")
  • Weight: Varies
  • Chassis: On-Road Car (TT-02R)
  • Drivetrain: 4WD
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: Not Included
  • ESC: Not Included
Included Items
  • 1x 1/10 TT-02R Electric On Road RC Car Kit
Required Items
  • 1x Compatible 7.4V LiPo
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Low Profile Servo
  • 1x 2+ Channel Transmitter & Receiver
  • 1x 257mm Body Shell
  • Polycarbonate Compatible Paint
  • Compatible Pinion Gear
  • AA Batteries For Transmitter
Specifications
Factory Specs
Max LiPo Power
3S (11.1v)
Pinion Gear
27T
Spur Gear
68T
Rear Shock Oil
400cSt
Wheel Hex Size
12mm
Front Shock Oil
400cSt
RC Kit
Suited Motor/ESC Type
Electric
RC Car
Completion
Kit
Drivetrain
4WD
Max LiPo Power
3S (11.1v)
On/Off Road
On Road
Chassis Type
Car
Power Source
Electric
Skill Level
Intermediate
Scale
1/10
