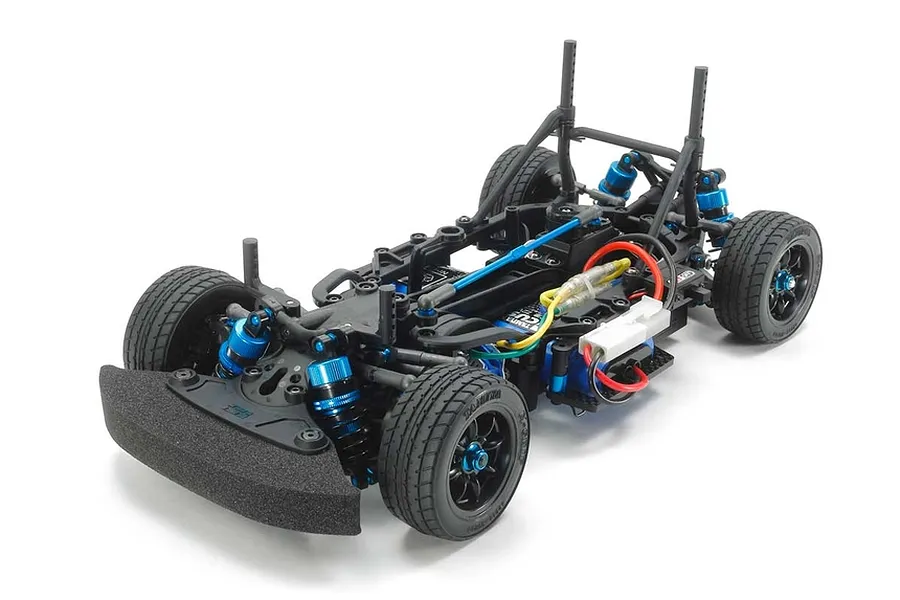

Tamiya M-07R RC Touring Car Electric 2WD 1/10 Scale Kit

The Tamiya M-07R Chassis Kit is a high-performance front-wheel-drive chassis designed for serious racers and enthusiasts who demand the best. This innovative chassis features a rigid monocoque construction with lower deck and upper frame sections, providing exceptional durability and responsive handling. The M-07R is designed for easy maintenance, with features like an easy-access differential that can be removed from the underside with minimal disassembly.

The chassis boasts a range of advanced features that enhance its performance and versatility. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension, with dedicated long arms and steering linkage components, offers a wide range of setup options for fine-tuning the car's handling characteristics. The drivetrain is incredibly smooth thanks to full ball bearings, an oil-filled gear differential unit, and universal drive shafts. The M-07R can be assembled with either a 225mm (M) or 239mm (L) wheelbase, making it compatible with a variety of existing Tamiya M-chassis body parts sets. With its combination of performance, versatility, and ease of maintenance, the Tamiya M-07R Chassis Kit is the perfect choice for serious RC enthusiasts.

• The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro It is designed to offer excellent rigidity with easy maintenance
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction
• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components Rear toe can be adjusted simply using spacers
• 4-wheel double wishbone suspension is fitted with CVA oil shocks
• The TA06 oil-filled gear differential is used to drive the M-07 It is paired with universal drive shafts and full ball bearings
• Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs
• Compatible with Low-Profile servos
• Aluminium hop up parts included as standard
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack
• Body mounts have a new reinforced design for more secure body attachment
• The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact
• Monocoque frame chassis (with detachable lower section)
• Long suspension arms
• CVA oil dampers
• Full ball bearings
• Gear differential unit
• Universal drive shafts
• Hi-torque servo saver
• Genuine Tamiya Product

Fully Adjustable Handling

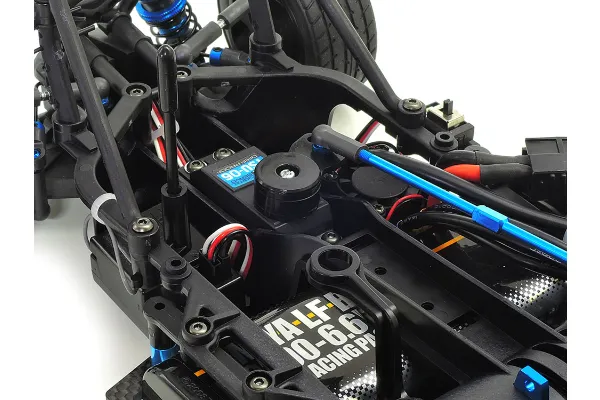

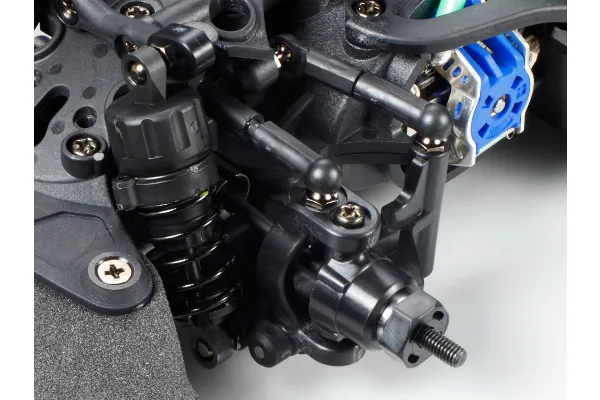

The suspension arms and linkages are designed for maximum articulation, with an optimised damper lever ratio and adjustable camber angle for precise handling and control.

Easy Maintenance

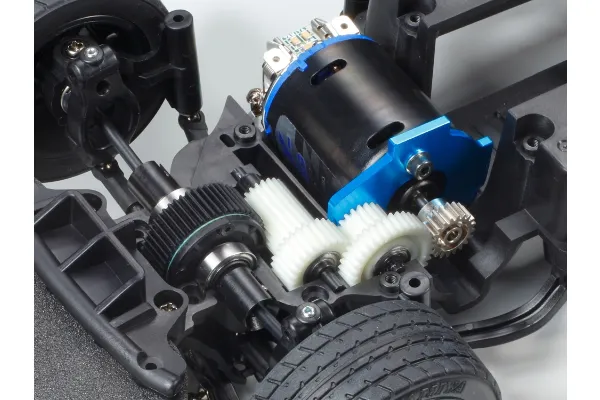

The car is designed for easy maintenance, with convenient access to the differential gear from the bottom of the chassis. This simplifies differential servicing and reduces the time spent on repairs.

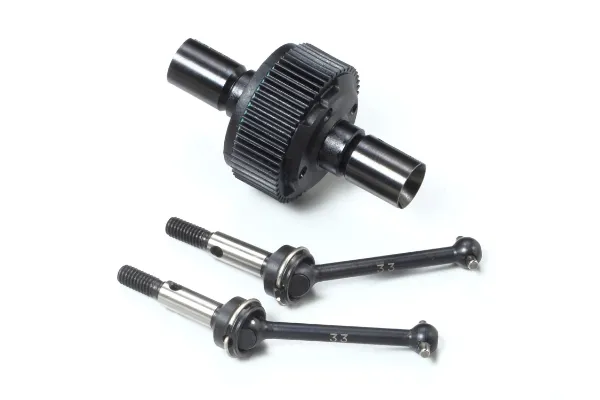

Upgrade Parts as Standard

The car comes standard with an oil-filled gear differential and universal shafts, ensuring smooth and efficient power transfer for optimal performance and durability.

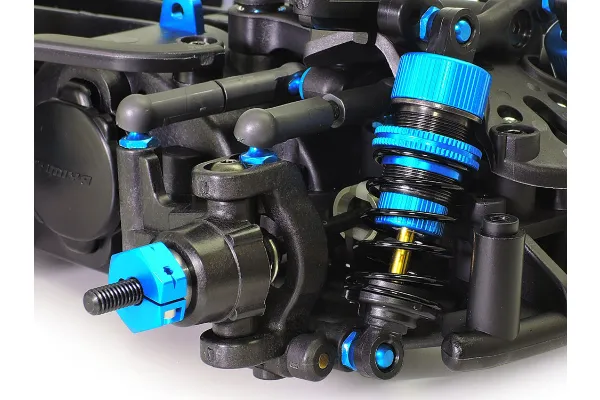

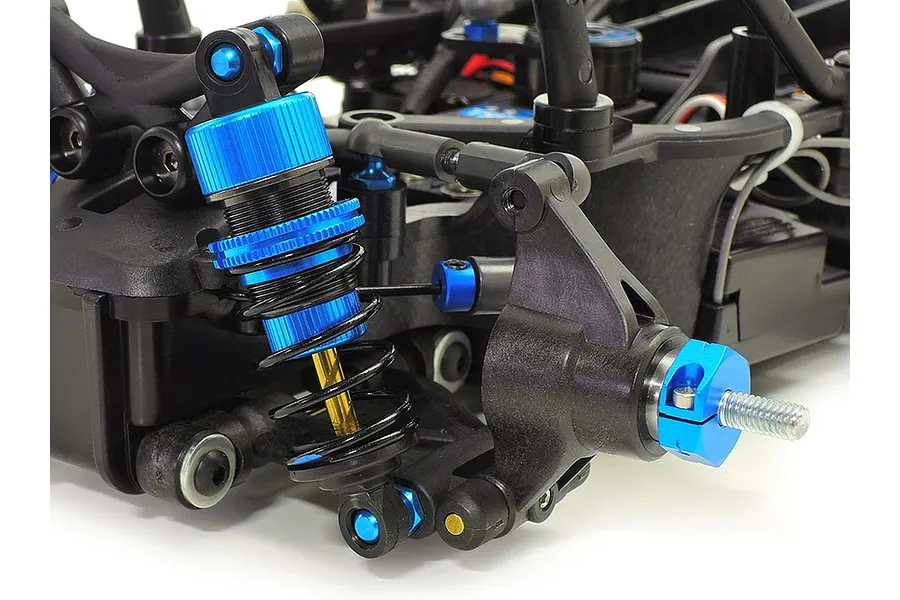

TRF Parts as Standard

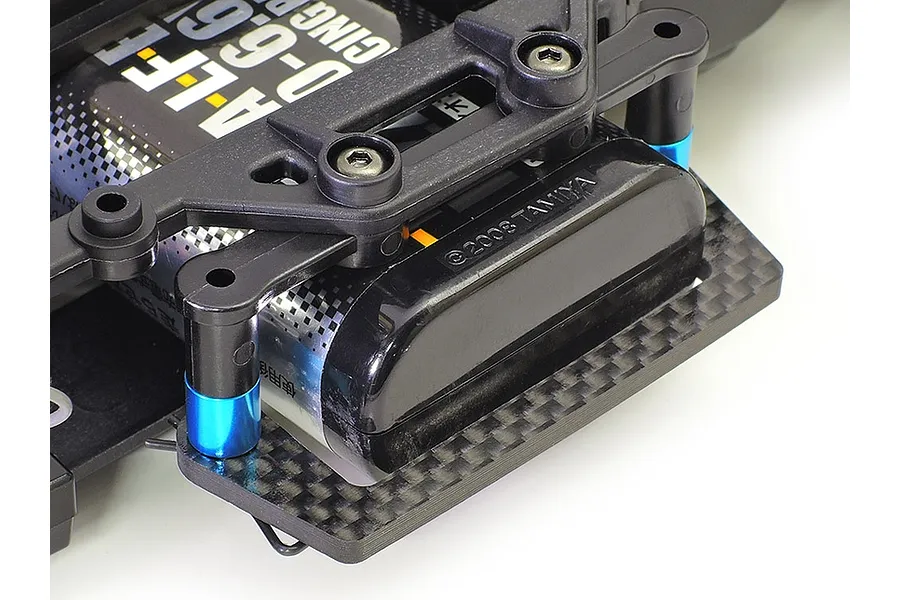

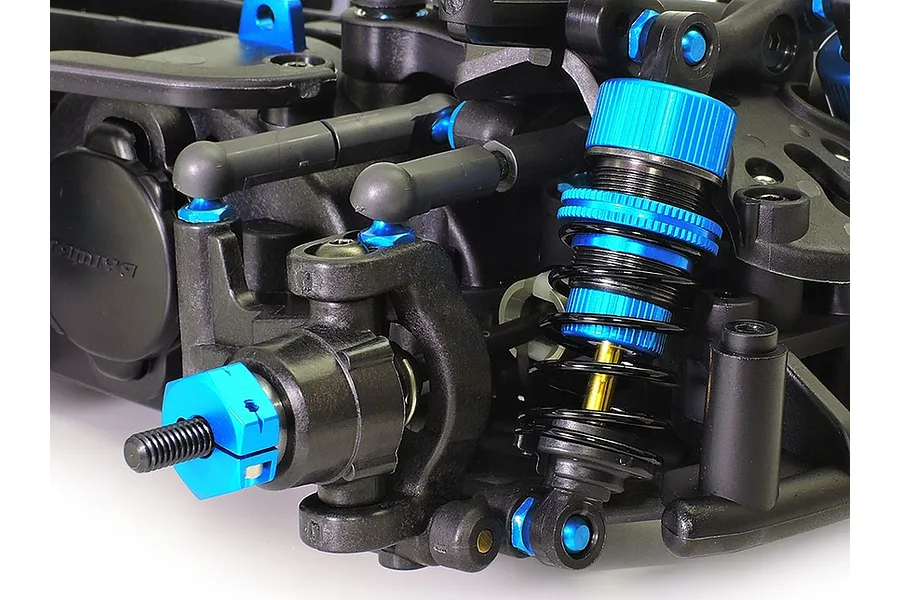

The front suspension is engineered for precision and performance, featuring TRF special dampers, double cardan drive shafts, aluminium cup joints, and aluminium hexagonal hubs. Reinforced suspension arms and uprights enhance durability, while the rear suspension includes a stabilizer for added stability. A dedicated carbon battery holder provides a secure and lightweight mounting solution.

High Traction Lower Deck

The car's chassis features a high-traction lower deck that optimizes grip and handling. This design promotes controlled twisting, improving road tracking and allowing the car to maintain speed through corners.

• Length: 332mm (13")
• Width: 164mm (6.45")
• Height: N/A
• Wheelbase: 225mm (8.85") (Adjustable)
• Weight: Varies
• Chassis: M-07 (Touring Car)
• Drivetrain: 2WD
• Suspension: Oil Filled Coil Over Shock Absorbers
• Motor: Not Included
• ESC: Not Included

• 1x 1/10 M-07R Electric On Road RC Car Kit

• 1x Compatible 7.4V LiPo
• 1x Compatible Charger
• 1x Compatible 1/10 Scale ESC
• 1x 540 Sized Brushed Motor
• 1x Compatible 1/10 Scale Servo
• 1x 2+ Channel Transmitter & Receiver
• 1x 225mm Body Shell
• Polycarbonate Compatible Paint
• AA Batteries For Chosen Transmitter
