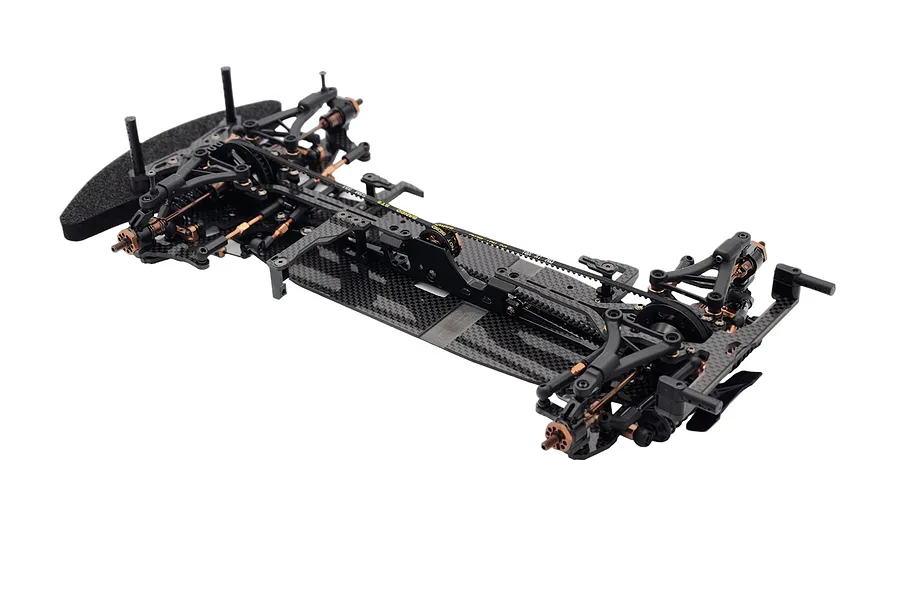

RC Maker SP1 Grand Touring RC Car Electric 4WD 1/10 Scale Kit - Carbon Fibre Version

  • 1/10
  • 4WD
  • Kit

Part no. RCM-SP-0002

DiscontinuedWrite a review
1 / 11
1 / 11

Overview

Step into the world of high-performance racing with the RC Maker SP1 Grand Touring car. This 1/10 scale kit is a carbon fibre masterpiece designed by professional Australian racer Ryan Maker to push the limits of speed and handling. Unlike standard cars, the SP1 is built with an ultra-low CG (Centre of Gravity), meaning the heaviest parts are placed as close to the ground as possible. This design ensures the car stays incredibly stable and flat through fast corners, giving you a massive advantage on the track.

The SP1 features a smooth belt-driven 4WD system and innovative lay-down shock absorbers. By laying the shocks flat instead of standing them up, the car maintains a sleek profile and a top-deck height of only 19mm. This kit is an assembly project, allowing you to build the vehicle from individual parts to understand every detail of its racing geometry. Since this is a professional-grade racing kit, you will need to choose and install your own motor, steering servo, and ESC (Electronic Speed Controller), which is the electronic unit that manages the power from your battery to the motor.

Whether you are looking to compete at a club level or simply want to own a piece of high-end RC engineering, the SP1 offers unmatched customisation. From adjustable differential heights to active rear steering, every part of this car can be tuned to suit your driving style and track conditions. The RC Maker SP1 is more than just a remote-controlled car; it is a precision racing tool built for those who want the best in performance.

Features

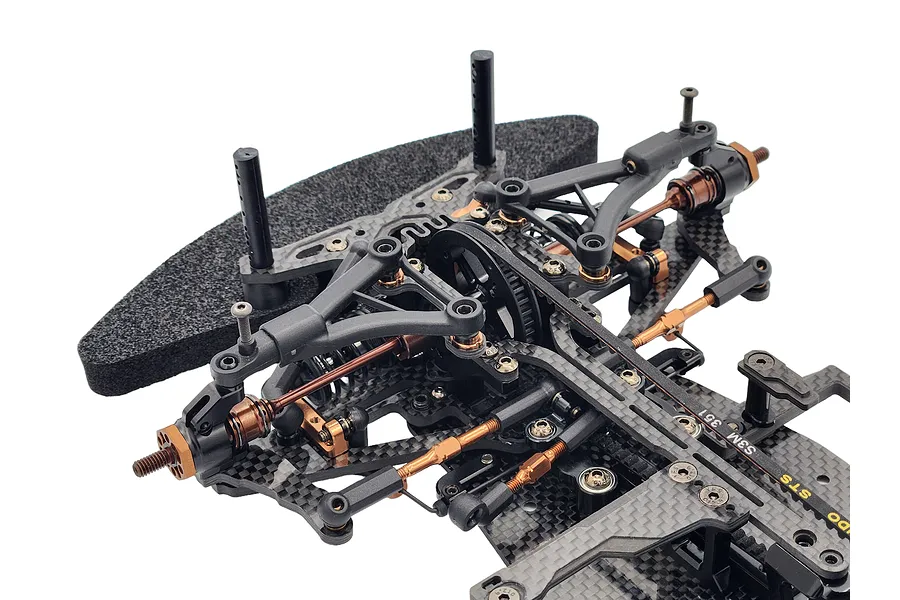

  • Composite upper arms with adjustable caster via inserts
  • Aluminium Diff Casing designed for maximum heat dissipation
  • Aluminium Spool Housing with same pulley as rear diff
  • Adjustable diff height and belt tension via composite eccentrics
  • Built in rear belt tensioner and centre layshaft anti-skip bearings (for Modified)
  • Dual Ball Bearing inner driveshaft couplings for maximum efficiency
  • Race proven dual bell-crank steering
  • Built-in adjustable active rear steering
  • Rear bumper for rear shock protection
  • Quick release battery system with adjustment in all directions
  • Genuine RC Maker Product

In the box

  • 1x RC Maker SP1 Grand Touring RC Car Electric 4WD 1/10 Scale Kit - Carbon Fibre Version

You'll need

  • 1x 540 Sized Brushless Motor
  • 1x Compatible ESC
  • 1x 7.4V 2S LiPo Battery
  • 1x Compatible LiPo Charger
  • 1x Low Profile High Speed Steering Servo
  • 1x 2+ Channel Transmitter & Receiver
  • 1x 1/10 Scale 190mm GT Body Shell
  • 1x Set Of 1/10 Scale Touring Car Tyres
  • Polycarbonate Compatible Paint
  • Body Reamer And Curved Scissors

Highlights

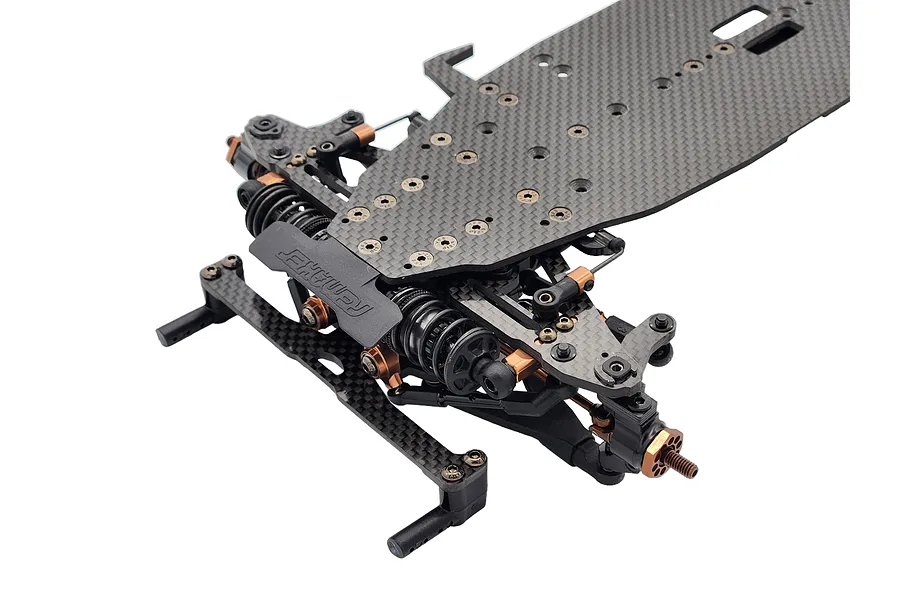

Lay Down Shock Absorbers

Lay Down Shock Absorbers

Innovative laydown shock design for an ultra-low center of gravity, delivering superior stability and cornering performance.

Low GC

Low GC

The SP1 is designed with a mere 19mm high topdeck. This innovative design helps keep the centre of gravity incredibly low, increasing stabilty and providing sharper handling.

Under-Arm Anti-Roll Bars

Under-Arm Anti-Roll Bars

The roll Bars have been strategically positioned under the arms to lower the center of gravity, making adjustments and fine-tuning a breeze.

7075 Aluminium Spool & Diff

7075 Aluminium Spool & Diff

The durable and lightweight aluminum spool and differential ensure maximum efficiency and corner speed, giving you a competitive edge.

Adjustable Diff Height

Adjustable Diff Height

The SP1 has been designed to allow you to easily fine tune it's performance with adjustable diff height via composite eccentrics, letting you adapt to various track conditions.

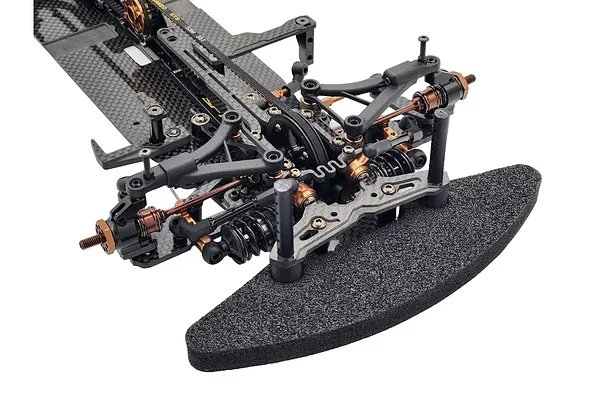

Adjustable Composite Upper Arms

Adjustable Composite Upper Arms

Composite upper arms with adjustable caster inserts provide you the ability to set up precise control and fine-tuned handling on any track.

Specifications

LengthN/A
WidthN/A
HeightN/A
WheelbaseN/A
WeightVaries
ChassisCarbon Fibre On Road
Drivetrain4WD
SuspensionAdjustable Oil Filled Laydown Coil-Over Shock Absorbers
MotorNot Included
ESCNot Included

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelExperienced
Power SourceElectric
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorNot Included
Front Shock Oil350cSt
Rear Shock Oil400cSt
Rear Differential Oil4000cSt, 5000cSt, 3000cSt
Wheel Hex Size12mm
