Tamiya XV-02RS Pro RC Touring Car Electric 4WD 1/10 Scale Kit (No ESC)

Brand: Tamiya | SKU: 58726

sold out

write a review

$509.61

Tamiya XV-02RS Pro RC Touring Car: Experience the Thrill of On-Road Racing with this Advanced Chassis!

Perfect for intermediate and up skill levels
Upgrade parts are included as standard
Highly customisable design
Compatible with brushed and brushless electronics

Add to Wishlist

Save Time & Add These Now

Complete your setup with these required items.

Yeah Racing 185x75mm LiPo Safe/Protection Bag

$19.95

LiPo Safe Charging Bag

NXE 7.4v 5000mAh 45C Hard Case LiPo Battery

$65.48

Battery

SkyRC T200 Dual Port AC/DC Smart Charger

$175.14

Charger

Power HD Standard LW-13MG 13kg Metal Geared Waterproof Servo

$46.97

Servo

ZTW Beast G2 SL 80A ESC and 3660 3000Kv Brushless Motor Combo

$143.48

ESC/Motor

FlySky G7P 2.4Ghz 7ch Radio

$198.76

Transmitter

Traxxas Power Cell 1.5v AA Batteries 4Pcs

$11.10

Batteries for Controller

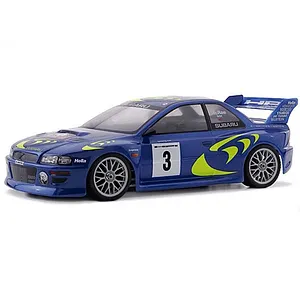

HPI 1/10 98 Subaru Impreza WRC Unpainted Body Shell

$68.94

Body Shell

Description

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

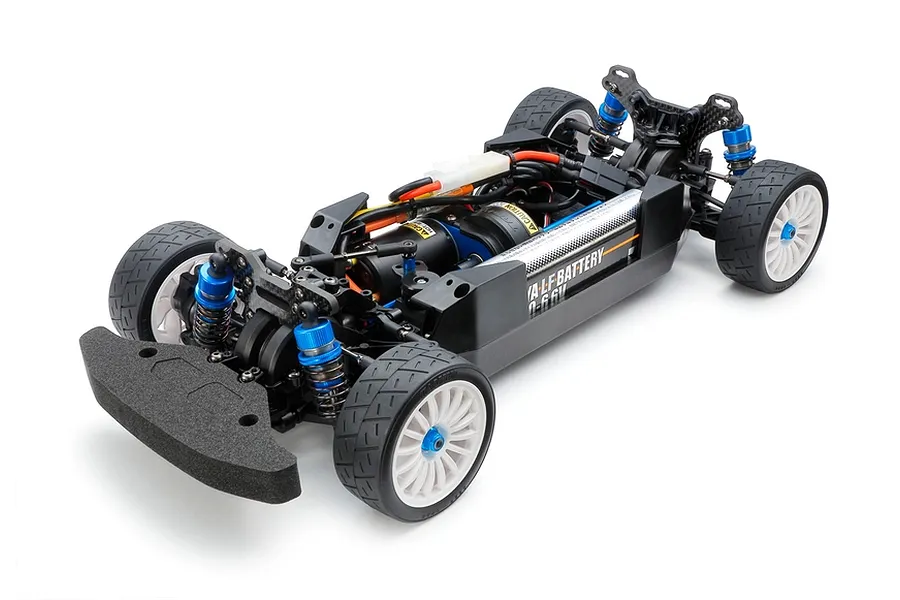

The Tamiya XV-02RS Pro Chassis Kit is a high-performance 4WD touring car chassis designed for those who demand the absolute best in on-road performance. This precision-engineered kit delivers an unmatched driving experience, combining speed, agility, and customisation options to conquer the asphalt with style.

The XV-02RS Pro features a dynamic front midship motor configuration, channelling power through perfectly matched front and rear propeller shafts for optimal balance and control. The kit includes both 39T and 40T differential gears, allowing you to fine-tune the drive balance to your preferences and track conditions. The chassis is built for rigidity and aerodynamic efficiency, with a sleek, carbon-fibre reinforced lower deck that provides a solid foundation for high-speed performance.

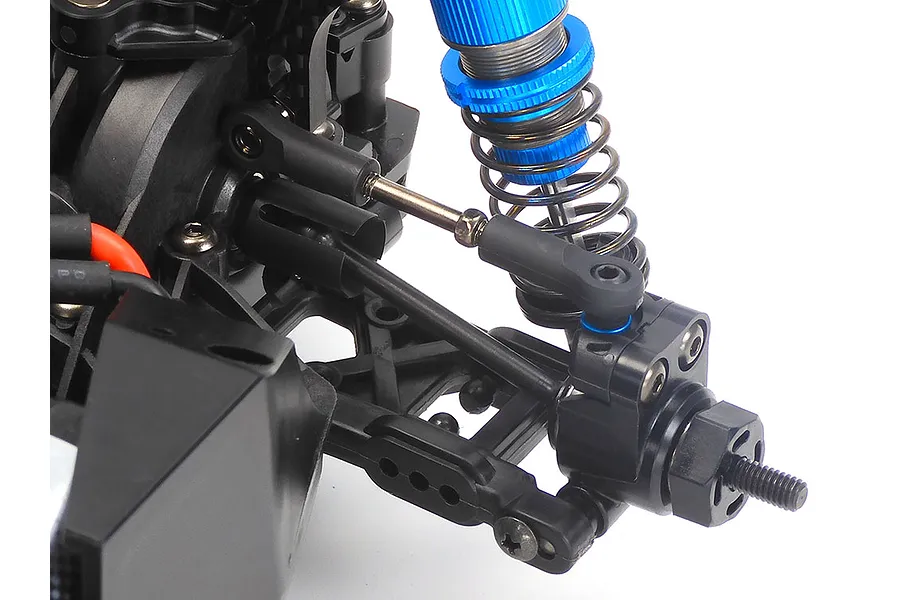

The 4-wheel independent double wishbone suspension, paired with aluminium shock absorbers, delivers a smooth and responsive ride, ensuring that you stay glued to the track even through the most demanding corners. With its combination of advanced engineering, high-quality components, and customisable features, the Tamiya XV-02RS Pro Chassis Kit is the ultimate choice for serious racers who are looking to push the boundaries of on-road performance.

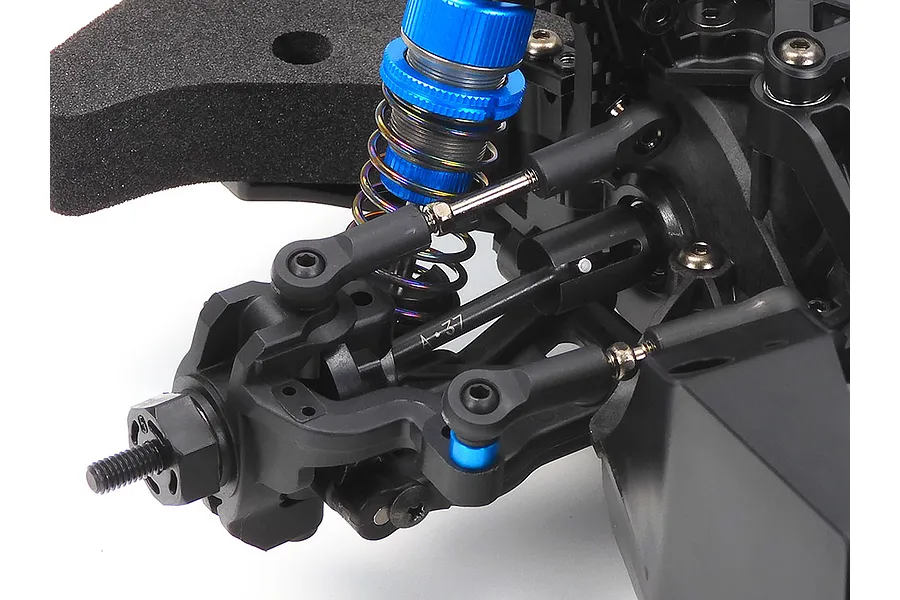

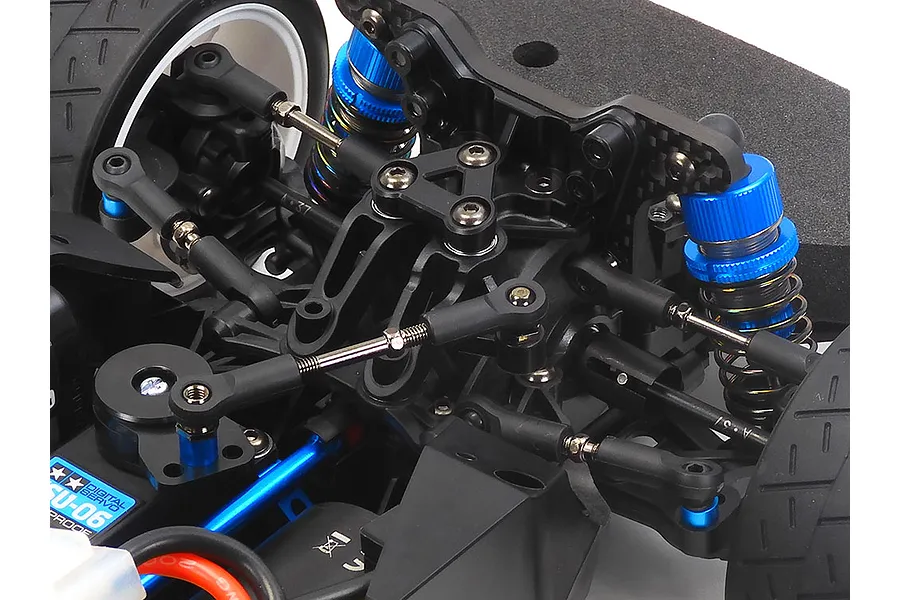

High Torque Steering Servo Assembly

The steering system is designed for precision and durability. The turnbuckle steering rod allows for easy adjustments, while the aluminium servo mount and high-torque servo saver provide a secure and reliable setup.

Centre Mount Spur Gear

The centrally located spur gear distributes power evenly to the front and rear wheels via equal-length aluminium propeller shafts, ensuring balanced performance and efficient power transfer.

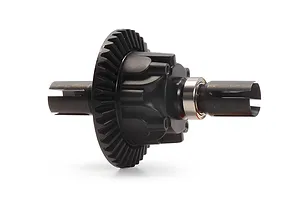

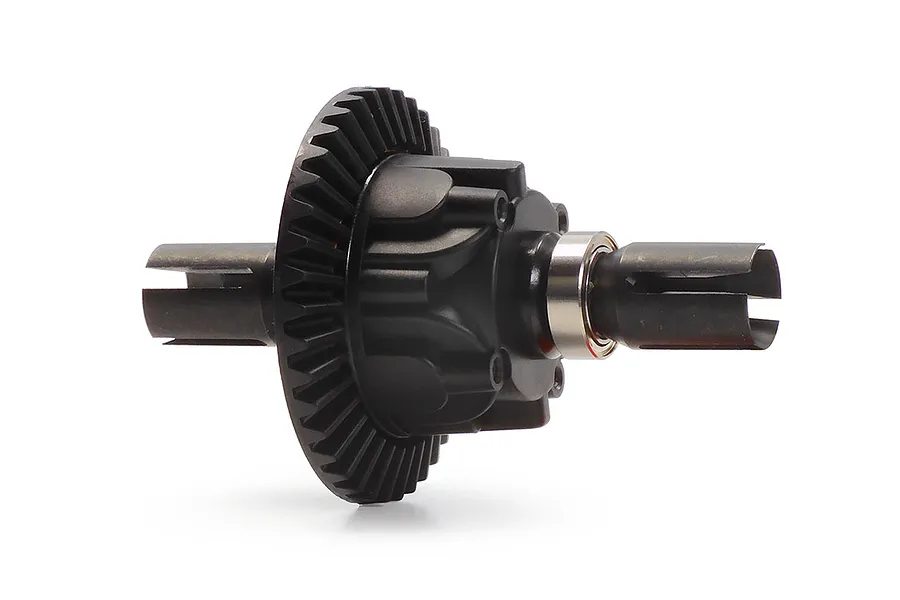

Oil Filled Differentials

High-performance oil-filled gear differentials, housed in sealed gearboxes, provide smooth and consistent power transfer while improving durability and protecting the gears from the elements.

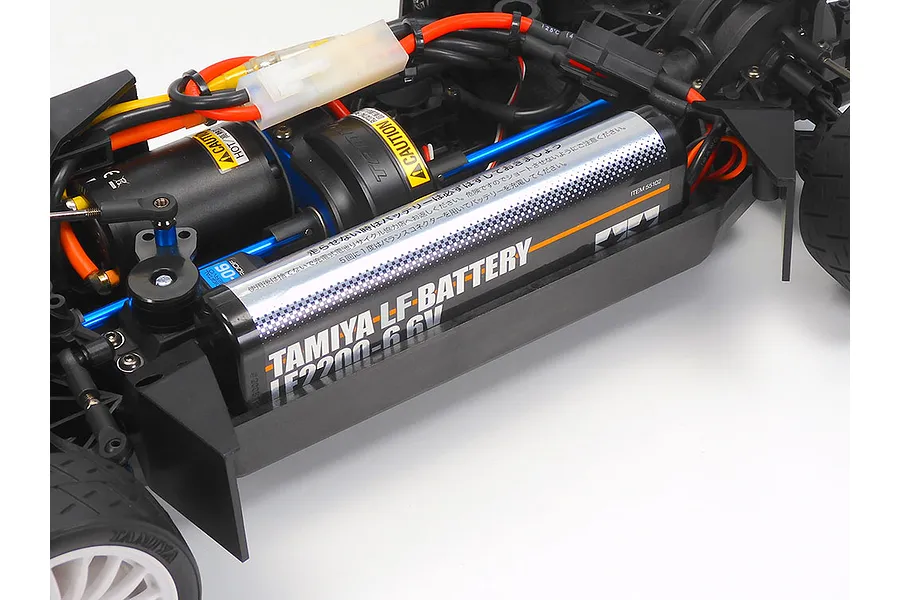

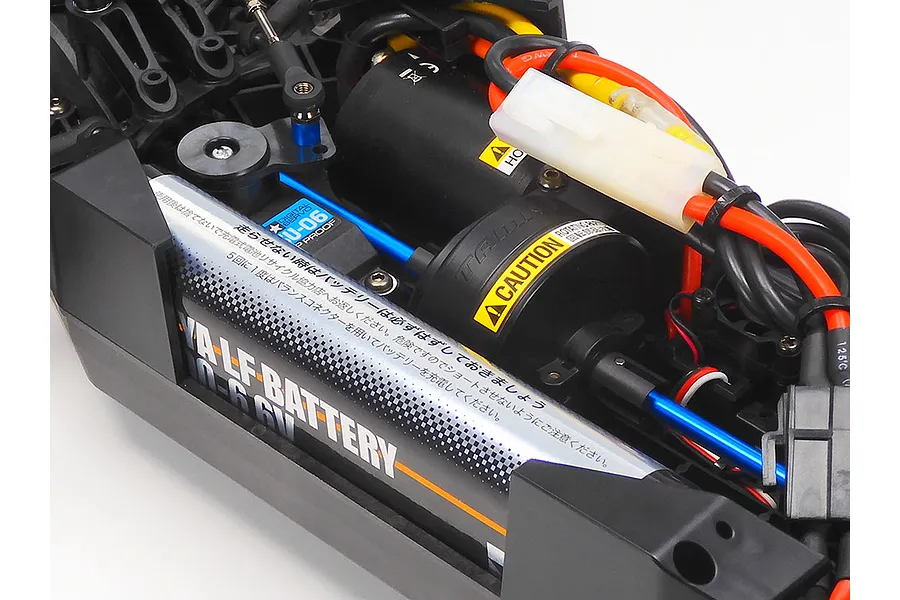

Vertically Mounted Battery Tray

The vertically mounted battery pack is cleverly rotated 90 degrees to minimise chassis width, improving agility and handling. The battery can be easily replaced by opening the front and rear holders.

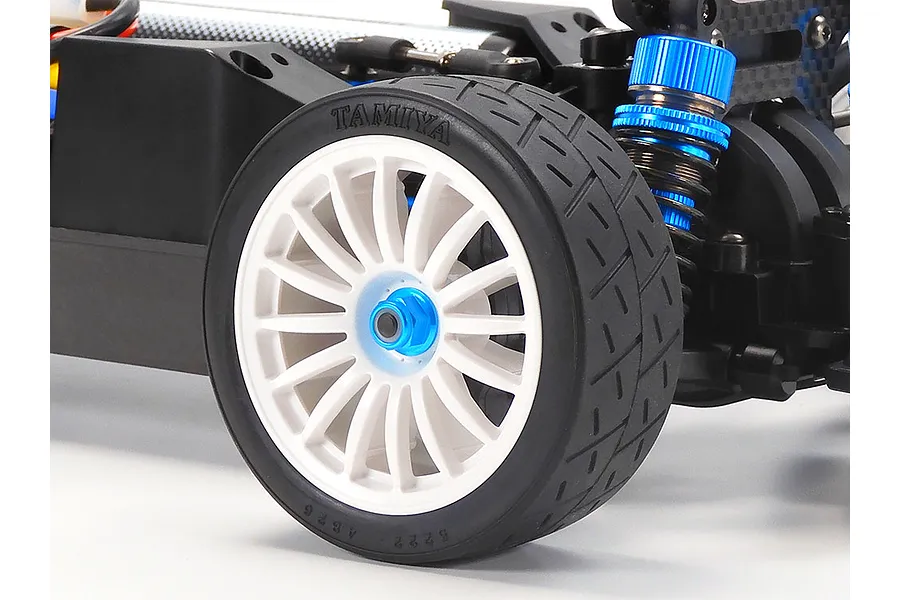

Touring Spec Wheels

This Tamiya sports race look multi spoke white rims with high grip semi slick tyres that provide a heightened level of grip and performance.

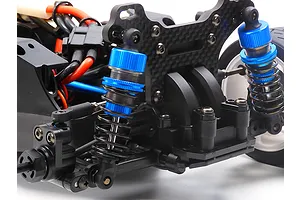

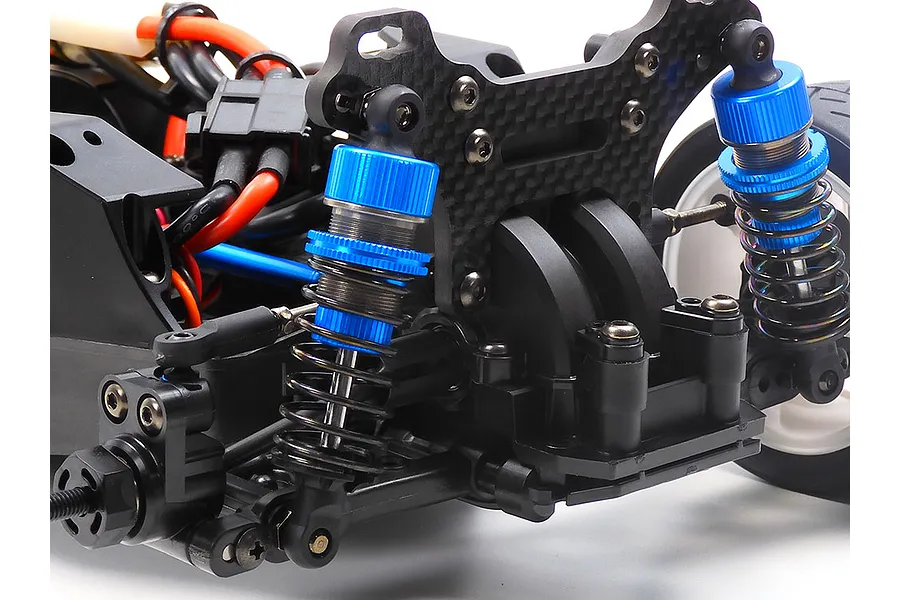

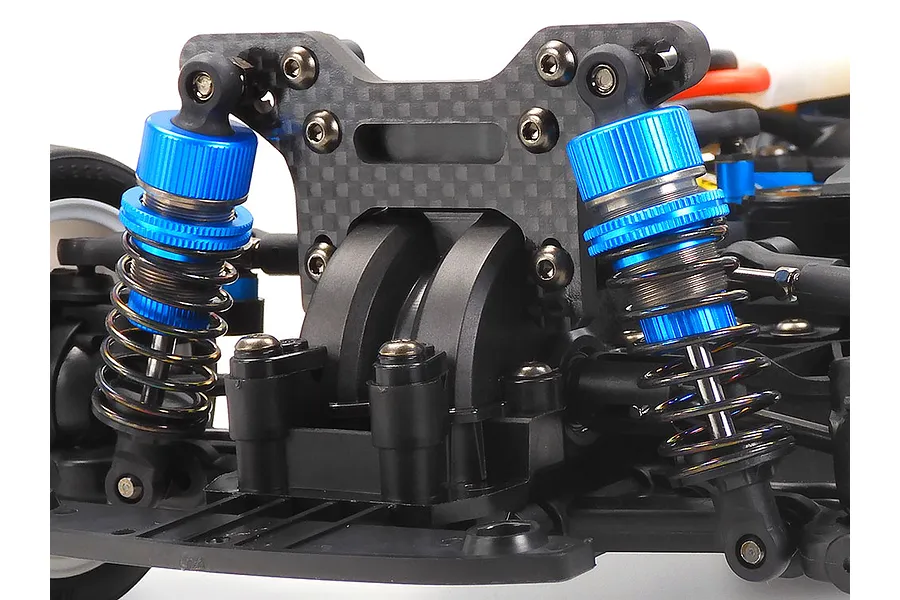

Blue aluminium shock absorbers

The car is equipped with high-quality touring car-sized shock absorbers that provide a smooth and responsive ride. The 30.5mm piston shafts and 3.5mm carbon fibre damper stays enhance damping performance and contribute to precise handling.

Features

Features aluminium-cylinder oil dampers with shaft length optimised for on-road performance, dedicated 3.5mm thick carbon fibre damper stays, and a carbon fibre-reinforced rigid lower chassis
18-spoke wheels are paired with racing semi-slick tyres for high grip and precise handling

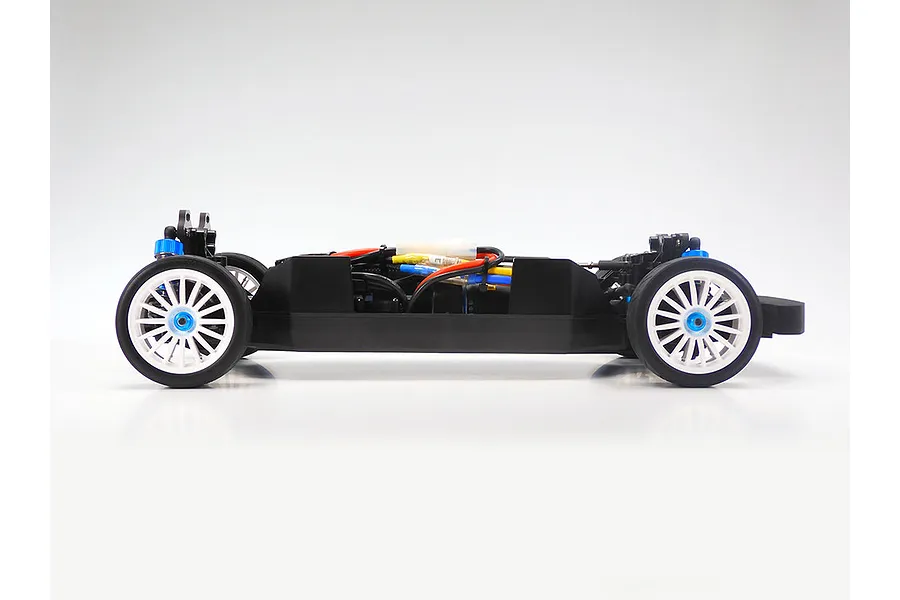

Equipped with a front midship motor and identical length front and rear long propeller shafts for balanced weight distribution
Comes with two 39T differential gears and one 40T differential gear for adjusting front and rear drive balance
Offers multiple drive balance configurations using different combinations of the included differential gears
A longitudinal battery pack is positioned in the centre-left for optimal balance and weight distribution

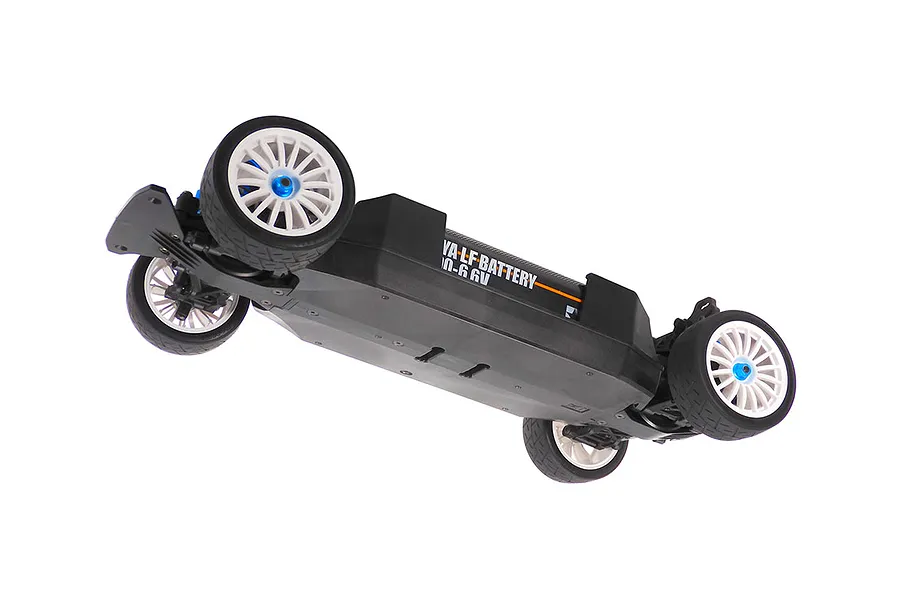

The flat chassis bottom and skid angle on the front bumper help to limit surface contact and reduce drag
Caster blocks feature a 6-degree angle for improved steering response and stability
Includes front and rear universal drive shafts and an aluminium servo mount for precise and durable steering
Genuine Tamiya Product

Specifications

Length: 368mm (14.48")
Width: 180mm (7.08")
Height: N/A
Wheelbase: 257mm (10.11")
Weight: Varies

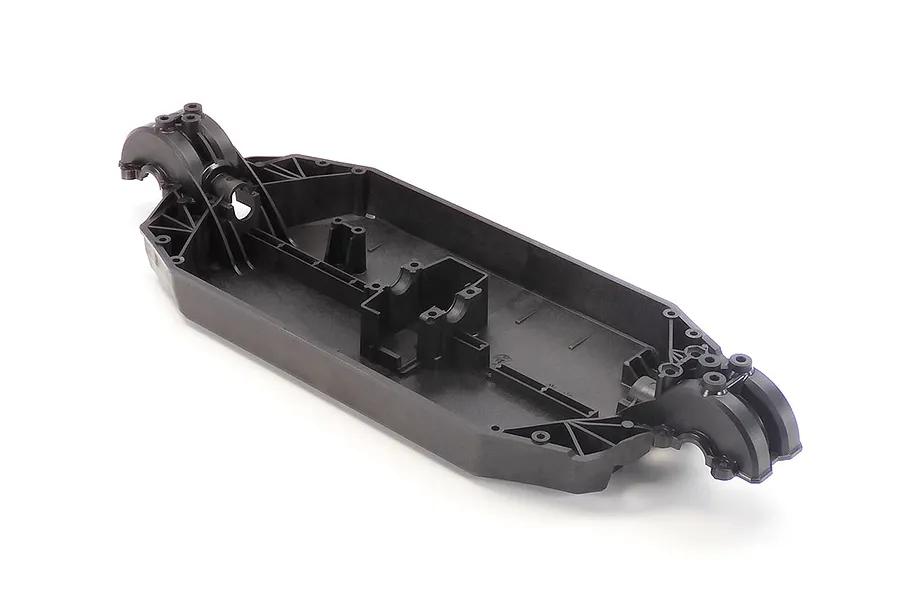

Chassis: Carbon Reinforced Plastic Bathtub Frame (XV-02RS)
Drivetrain: 4WD
Suspension: Aluminium Coil Over Shock Absorbers
Motor: Not Included
ESC: Not Included

Included Items

1x Tamiya 1/10 XV-02RS Pro Chassis Electric RC Car Kit w/o ESC

Required Items

1x Compatible 7.4V LiPo or 7.2V NiMH Battery
1x Compatible Charger
1x Compatible 1/10 Scale ESC
1x Compatible 540 Size Motor
1x Compatible 1/10 Scale Servo
1x 2+ Channel Transmitter & Receiver
257mm Body Shell
Polycarbonate Compatible Paint
AA Batteries For Chosen Transmitter

Specifications

Factory Specs

Max LiPo Power: 3S (11.1v)
Pinion Gear: 26T
Spur Gear: 70T
Rear Differential Oil: 3000cSt
Wheel Hex Size: 12mm
Rear Shock Oil: 400cSt
Front Differential Oil: 3000cSt
Battery Connector: Not Included
Front Shock Oil: 400cSt

RC Car

Drivetrain: 4WD
Completion: Kit
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric
Skill Level: Intermediate
Scale: 1/10
