Name: Tamiya TT-02 Type SR RC Car Electric 4WD 1/10 Scale Kit (no ESC)
Brand: Tamiya
SKU: TAM-47439A
Price: 312.94 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

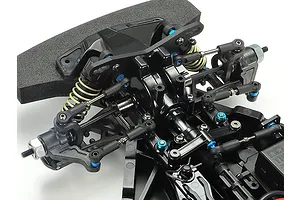

The TT-02 series continues to expand with a new high-performance variant. The TT-02 Type-SR is a chassis which takes the Type-S and combines it with a range of racing parts. The result: a fun, smooth and fast inexpensive drive straight out of the box.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or may cause damage to the body shell's surface.

Features

Bushings for Adjustable Suspension Mounts (54922)
42mm Lightweight Rear Swing Shafts (53502)
TT-02 Oil Gear Differential Unit (54875)
5x5mm Hex Ball Connectors (53968)
M-Chassis Aluminum Damper Set (54000)
Full Ball Bearings
42mm Double Cardan Drive Shafts (42239)
TT-02 Differential Locking Block (54649)
Open Face 5mm Reinforced Adjusters (54869)
TT-02 Lower Deck (Hard)
FRP Damper Stays (Front & Rear)
Hex Head Screws
Steel Adjustable Rear Suspension Mount (new for this variant)

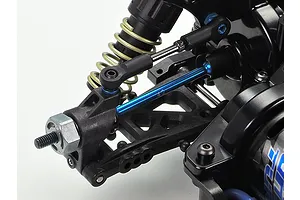

Flanged Steering Linkage Pipes (new for this variant)
Steel adjustable suspension mounts included; plastic bushings can be exchanged to allow a wide range of toe and roll centre settings
New flanged pipes in the steering linkage ensure smooth motion and superior durability
The front uses double-cardan drive shafts and the rear uses lightweight shafts for highly efficient drive
Open face adjuster designs and hex hole ball connectors allow swift adjustments

In the box

1x Tamiya TT-02 Type-SR RC Car Electric 4WD 1/10 Scale Kit (no ESC)

You'll need

Body
Radio
ESC
Steering servo
Battery
Paint
Tools

Highlights

Race Spec Suspension

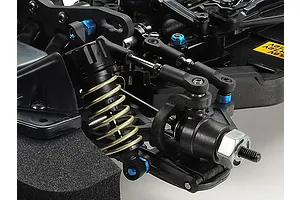

The front double cardan drive shaft with its dual joints minimises vibrations caused by drive shaft flex. This translates to improved suspension responsiveness and a more connected feel with the road surface.

Efficient Power Transfer

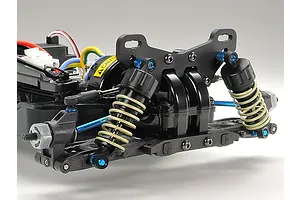

The rear universal drive shaft features a lightweight swing shaft design, reducing rotating mass and improving drive efficiency. This means more power reaches the wheels, resulting in better acceleration and overall performance.

Tunable Suspension

The adjustable rear suspension mount allows you to fine-tune your vehicle's handling characteristics by easily changing bushings to adjust toe and skid angles. This level of customisation empowers you to optimise your setup for different track conditions and driving styles.

Specifications

Scale	1/10
Length	361mm
Width	185mm
Wheelbase	257mm
Drivetrain	Shaft-Driven 4WD
Type	Assembly Kit

RC Car

Scale	1/10
Completion	Kit
Skill Level	Intermediate
Power Source	Electric
Chassis Type	Car
On/Off Road	On Road
Drivetrain	4WD

Factory Specs

Max LiPo Power	3S (11.1v)
Battery Connector	Not Included
Front Shock Oil	900cSt
Rear Shock Oil	900cSt
Rear Differential Oil	3000cSt
Pinion Gear	16T
Spur Gear	70T
Wheel Hex Size	12mm
