Name: Tamiya F1-04 Pro Version II RC Formula 1 Electric 2WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58652
Price: 282.08 AUD
Availability: OutOfStock
Rating: 5 (1 reviews)

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

The Tamiya F104 PRO II Chassis Kit is a high-performance 1/10 scale Formula One chassis designed for serious racers and enthusiasts. This updated version of the legendary F104 platform incorporates the latest design trends and advanced features to deliver an unparalleled racing experience. The polycarbonate body realistically captures the sharp nose, wide and narrowed side pontoons, and complex front and rear wings of modern Formula One cars. Barge boards, vertical wings, and induction pods are included as separate parts, allowing for further customisation and aerodynamic tuning.

The F104 PRO II chassis builds upon the lightweight and simple design of the original F104, with a double-deck frame and 3P suspension. The front suspension features a link type with flat cross-section suspension arms, independent kingpins, and coil springs. The rear is a rigid type with a friction plate and TRF damper that controls the T-bar. An aluminium ball differential allows for easy tyre changes without disassembly, and full ball bearings ensure smooth and efficient operation. The textured hollow rubber tyres with inner sponges provide exceptional grip and realistic appearance. With its combination of advanced design and high-quality components, the Tamiya F104 PRO II Chassis Kit delivers the ultimate in Formula One RC performance.

Features

The lightweight F104 chassis is fitted with various upgraded parts to turn it into the F104 PRO II

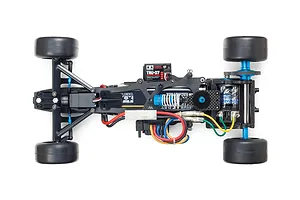

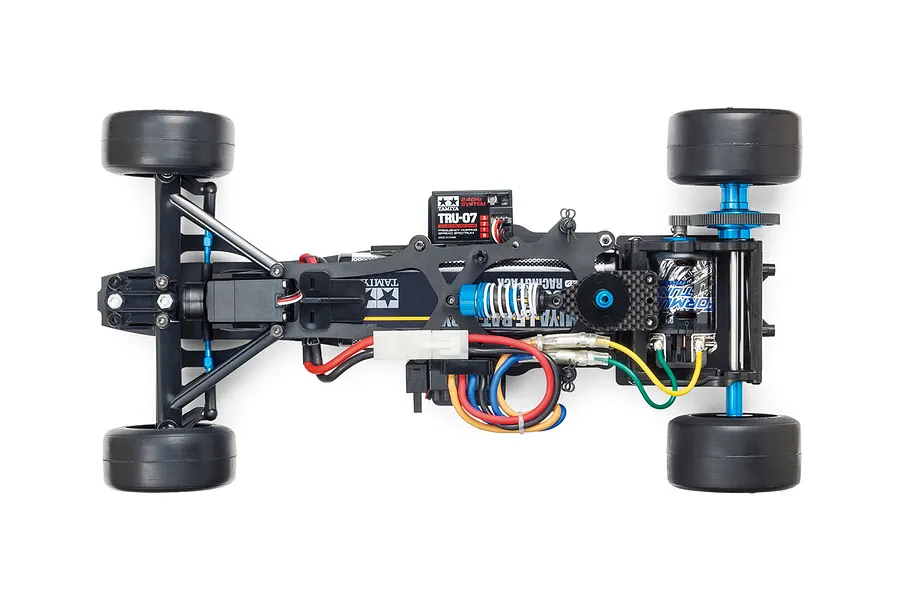

FRP double deck chassis has a new lower deck design, and an inline (longitudinal) battery position

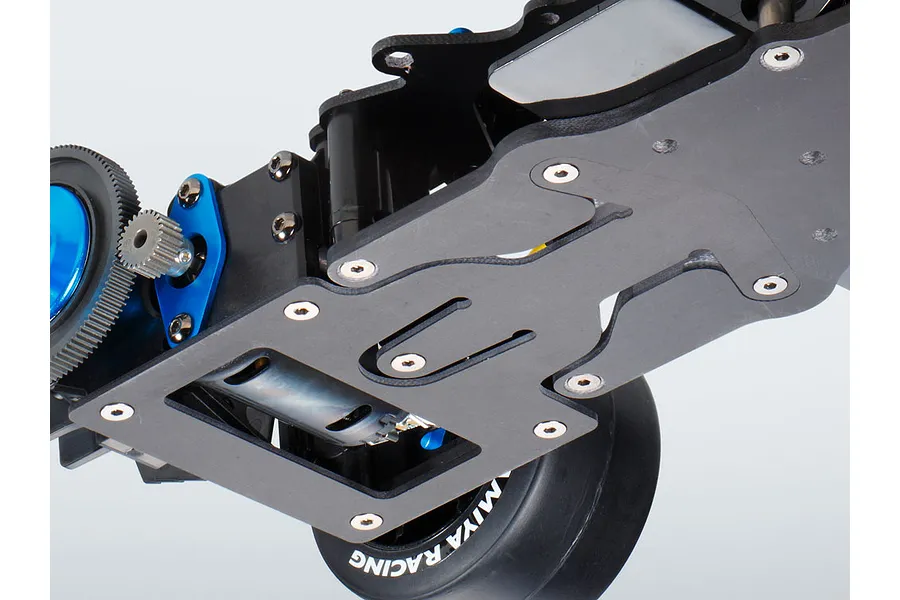

The 15mm thick FRP T-bar design with U-shaped cutaway is inherited from the F104WGP It makes up the rear suspension in concert with friction plates and a TRF damper

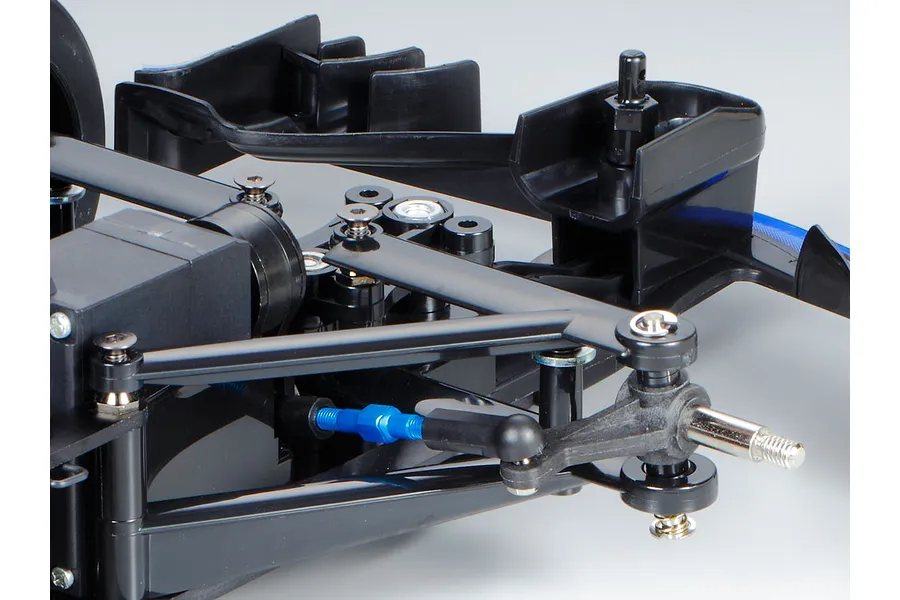

Features front independent coil spring suspension Alter camber by changing upper mount attachment direction
Utilises an aluminium ball differential

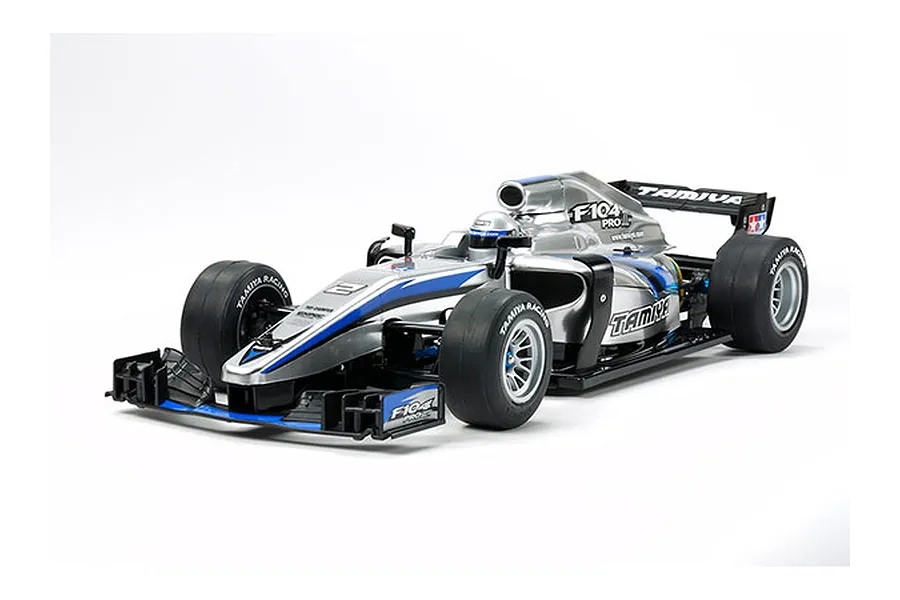

A realistic original polycarbonate body is included Its design is inspired by 2017 trends, with a sharp, slanting nose and bulging side pontoons Additional parts are included to create alternative lower side pontoon sections as separate parts for chassis with larger R/C equipment

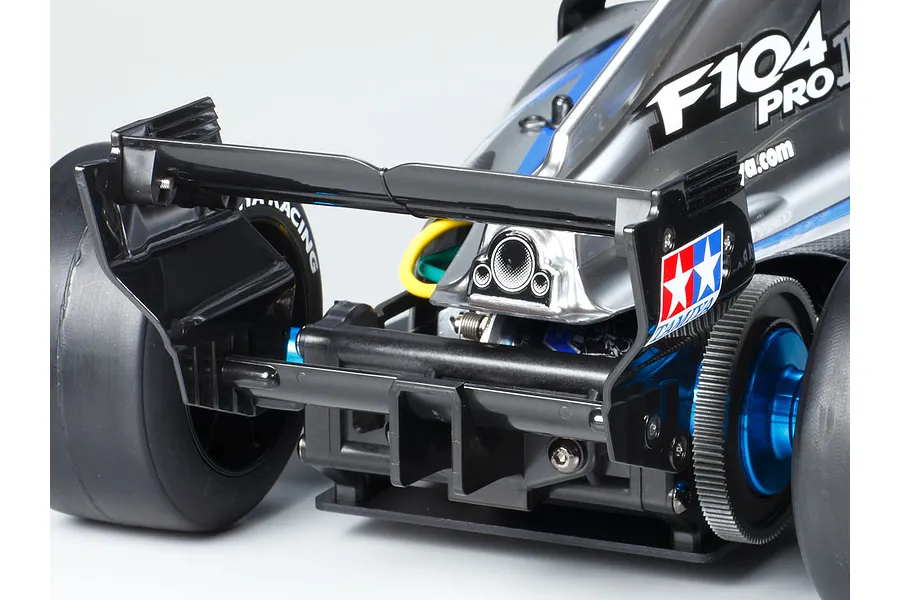

Separate parts depict the complex front wing and its low rear counterpart, rear diffuser, mirrors, helmet, etc
Comes with realistic semi-pneumatic synthetic rubber tires, and marking stickers to decorate the body
A wide range of Hop-Up Option parts are available to further tune the chassis to your needs
Genuine Tamiya Product

In the box

1x Tamiya F1-04 Pro Version II RC Formula 1 Electric 2WD 1/10 Scale Kit
1x 1/10 Scale Formula 1 Unpainted Body Shell

You'll need

Compatible 7.4V LiPo Battery or 7.2V NiMH
Compatible Charger
Compatible 1/10 Scale Servo
1x Compatible 540 Size Motor
1x Compatible ESC
Polycarbonate Safe Paint
2+ Channel Transmitter & Receiver
AA Batteries For Chosen Transmitter

Highlights

Adjustable Camber Angle

The front suspension features adjustable camber angle, allowing you to fine-tune the car's handling and achieve optimal performance on the track.

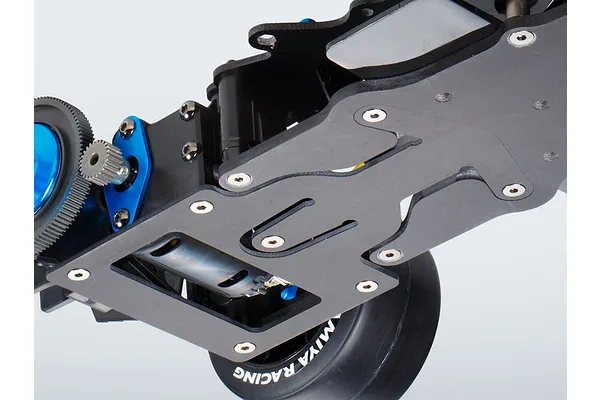

FRP T-Bar

The 1.5mm FRP T-bar, with its U-shaped cut, enhances chassis flexibility in the pitching direction, improving responsiveness and handling on uneven surfaces.

Modern Styling

The body's original design incorporates modern styling cues, such as a low-mounted rear wing, giving the car a contemporary and aggressive look.

Direct Drive 2WD

The slim and simple direct drive 2WD chassis delivers sharp and responsive performance, making the car a joy to drive.

Specifications

Length	440mm (17.32")
Width	180mm (7.09")
Height	88mm (3.46")
Wheelbase	270mm (10.63")
Weight	Varies
Chassis	Formula 1 (F1-04)
Drivetrain	2WD
Suspension	Oil Filled Coil Over Shock Absorber
Motor	Not Included
ESC	Not Included
