Tamiya M-08R RC Touring Car Electric 2WD 1/10 Scale Kit Car

Brand: Tamiya | SKU: 47480

Tamiya M-08R Chassis Kit: Dominate the Track with this Versatile and Tuned Racing Machine!

Required to Complete
Transmitter Batteries
Fujitsu 1.5v AA Alkaline Batteries 4Pcs
$5.90 10+ in stock
Required QTY: 1
Battery
Steering Servo
Power HD Standard LF-13MG 13kg Metal Geared Servo
$41.34 10+ in stock
Required QTY: 1
Transmitter & Receiver
HSP 2.4Ghz 4Ch Radio w/ Receiver
$65.81 3 in stock
Required QTY: 1
Body Shell Scissors
Traxxas Curved Hobby Scissors
$25.55 1 in stock
Required QTY: 1
LiPo Safe Charging Bag
Yeah Racing 185x75mm LiPo Safe/Protection Bag
$16.31 10+ in stock
Required QTY: 1
Charger
SkyRC T200 Dual Port AC/DC Smart Charger
$175.14 9 in stock
Required QTY: 1
Body Shell Reamers
Traxxas Red Aluminium Body Reamer
$101.34 1 in stock
Required QTY: 1

Contact us to find a suitable replacement. Or View related products.

This kit comes without an Electronic Speed Control. Click Here to view our range of ESCs.

Description

The Tamiya M-08 Chassis platform gets a performance boost with this Limited-Edition release. The M-08R Chassis Kit employs various kinds of option parts such as a ball differential, for the rear gearbox, and TRF (Tamiya Racing Factory) precision oil dampers to get ready for club races!

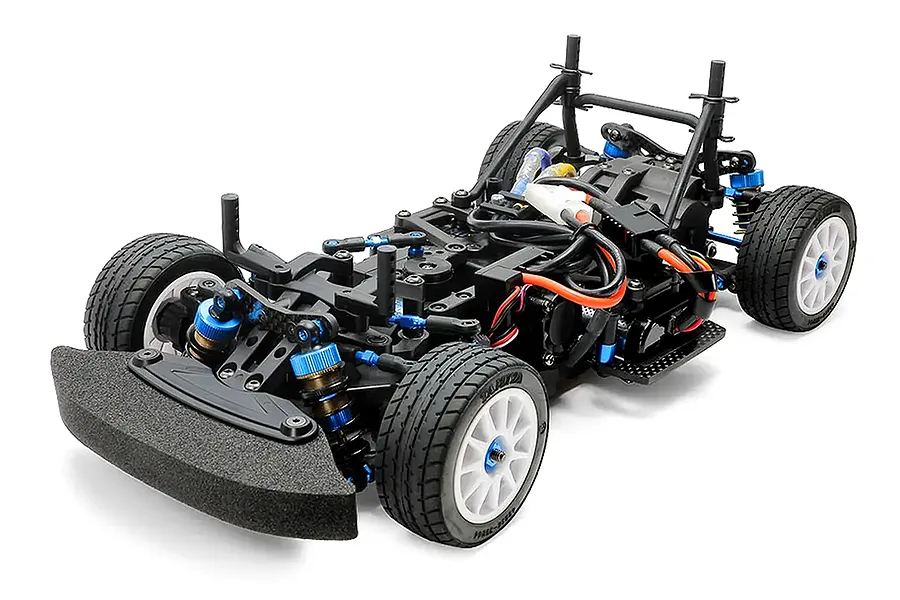

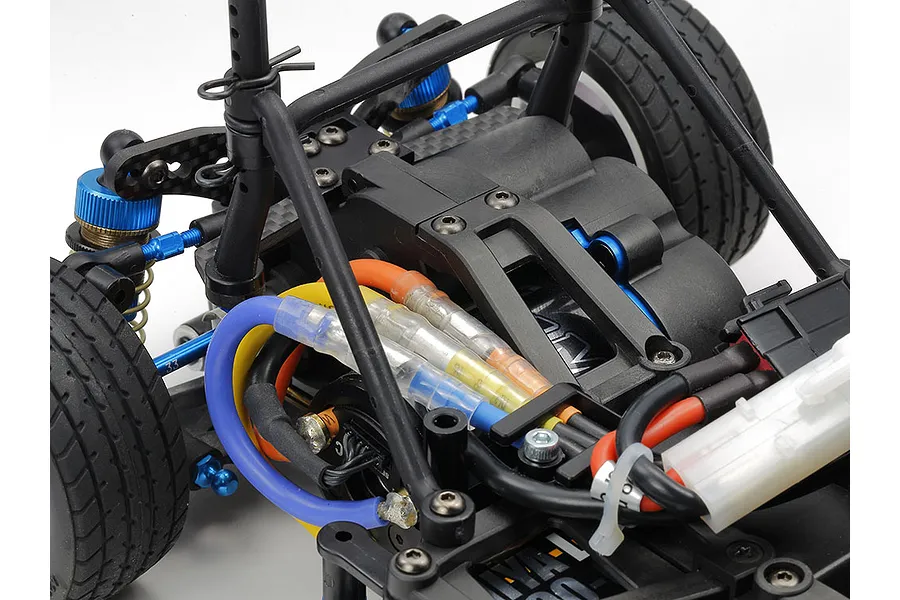

 This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Features
  • 1/10 scale R/C model assembly kit.
  • The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability.

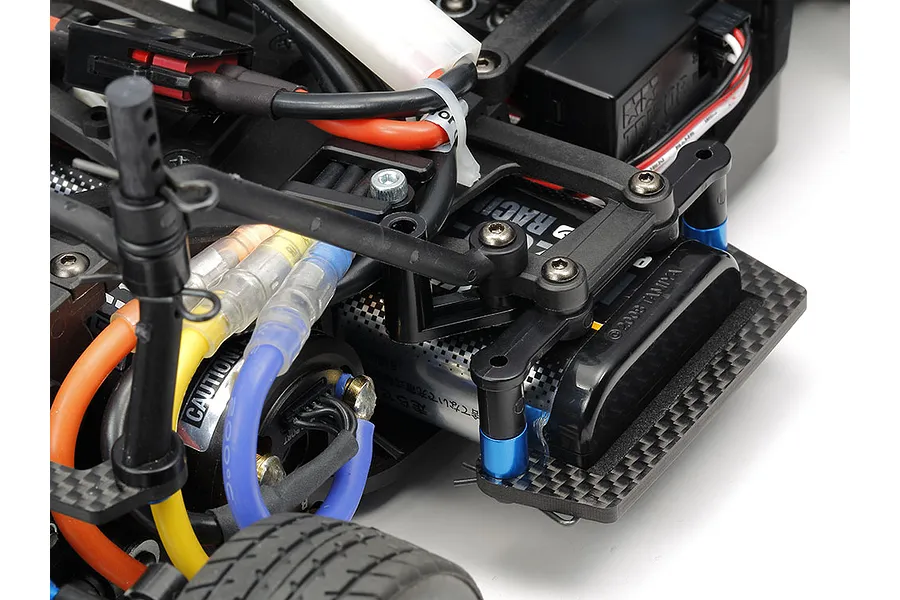

  • Includes carbon fiber components such as battery holders and body mount base (Item 54908).
  • M-08 Concept Reinforced K Parts (Gearbox) (Item 54983) give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
  • Comes with the dedicated chassis weight (20g).
  • Features hex head screws.
  • M-07 Concept Reinforced D Parts (Suspension Arms) (Item 54811) featuring carbon fiber-reinforced resin allow superior cornering ability.

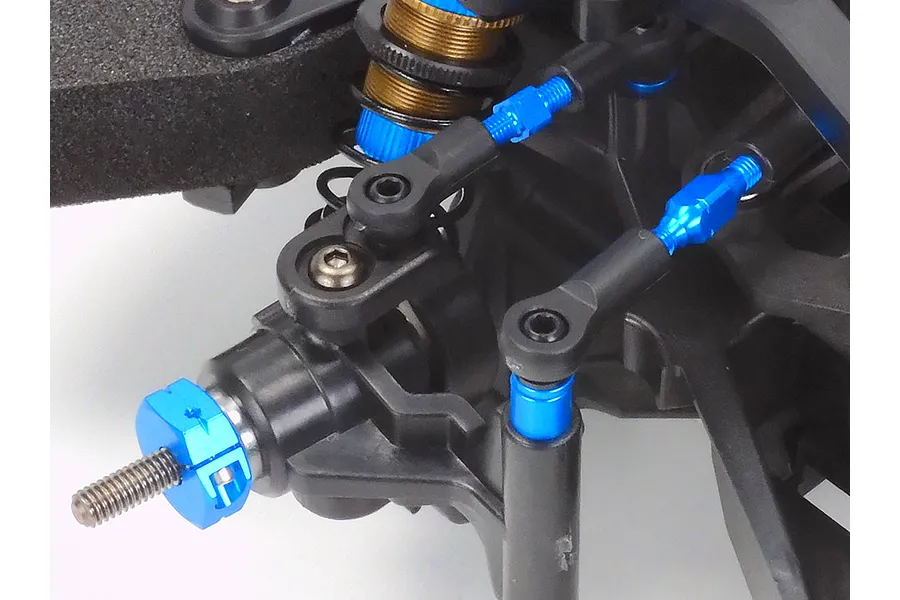

  • Durable, lightweight aluminum turnbuckle shafts (3x18mm; Item54247, 3x23mm; Item 54248, and 3x32mm; Item 54249) allow adjustment of length without removing adjusters.

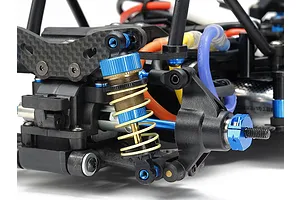

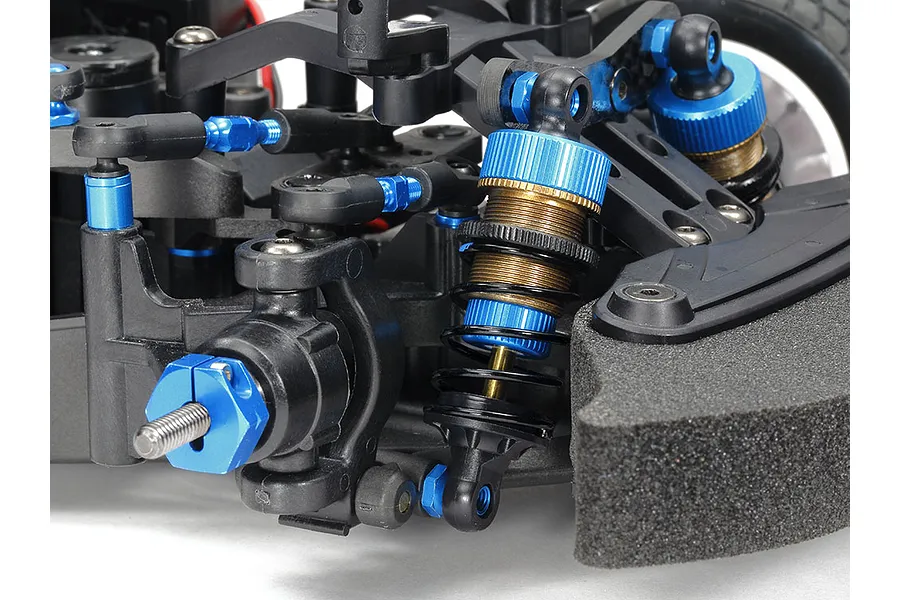

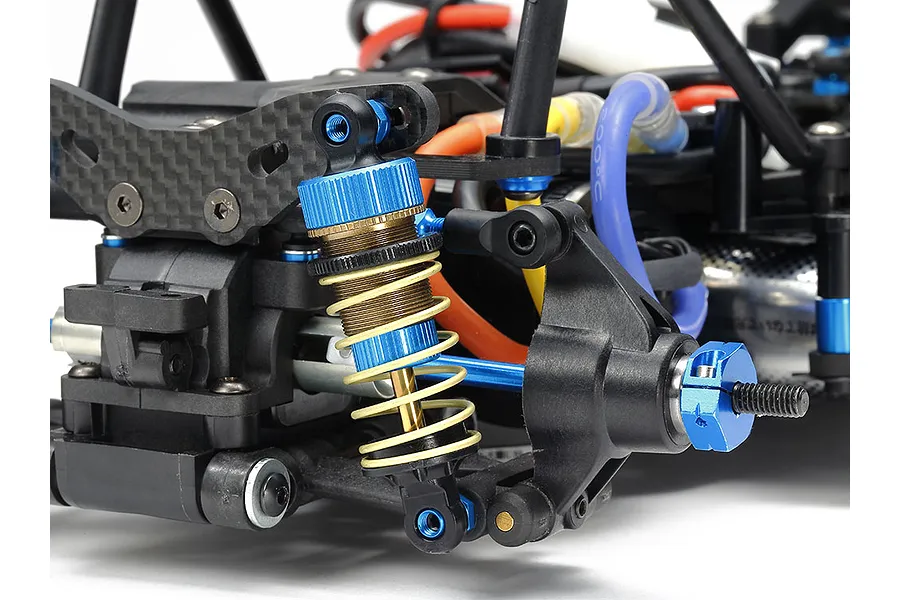

  • Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers+ (4pcs.) (Item 42355).
  • The 1.3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.
Specifications
  • Adjustable Gear Ratio: Yes
  • Bearings Includes: Full Ball Bearings
  • Chassis Material: FRP Fiberglass Reinforced Plastic
  • Chassis Type: M-08
  • Construction Type: Assembly Kit
  • Differential Type: Ball Pressure Plate
  • Drive Type: 2WD
  • Electronic Speed Control (ESC) Sold Separately
  • Motor Sold Separately
  • Required To Complete: 2-channel radio, steering servo, ESC, 7.2-7.4volt battery & battery charger, motor, M-Chassis Body Set, and M-chassis tires
  • Scale: 1/10
  • Shock Damper: Aluminium Oil Filled
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: On-Road
Included Items
  • 42143: 4mm Aluminium Serrated Wheel Nut (4pcs. -Blue)
  • 42357: Cross Joints for Low Friction Assembly Universal Shafts

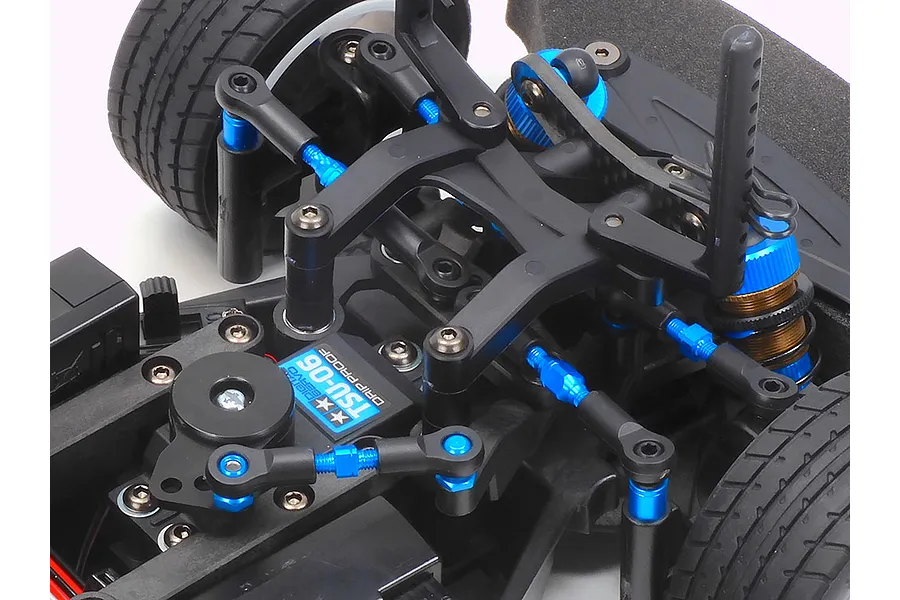

  • 51000: Hi-Torque Servo Saver (Black)
  • 53509: Hard Fluorine Coated 0.6 Aluminium Pinion Gear (20T/F201)
  • 53642: 5mm Aluminium Ball Connector (Blue)
  • 53823: Clamp Type Aluminium Wheel Hub (5mm Thick)
  • 53851: 46mm Titanium Coated Suspension Shafts 2pcs.
  • 53917: 2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension
  • 53968: 5x5mm Hard Hex Head Ball Head Connector (5pcs.)
  • 54183: M-Chassis Reinforced Freewheel Axle Set
  • 54868: Open Face 5mm Reinforced Adjusters (Medium/8pcs.)
  • 54869: Open Face 5mm Reinforced Adjusters (Long/8pcs.)
  • 54906: M-08 Concept Aluminium Shaft Set

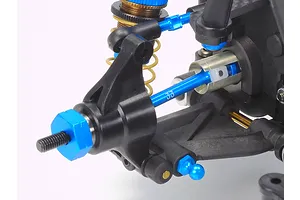

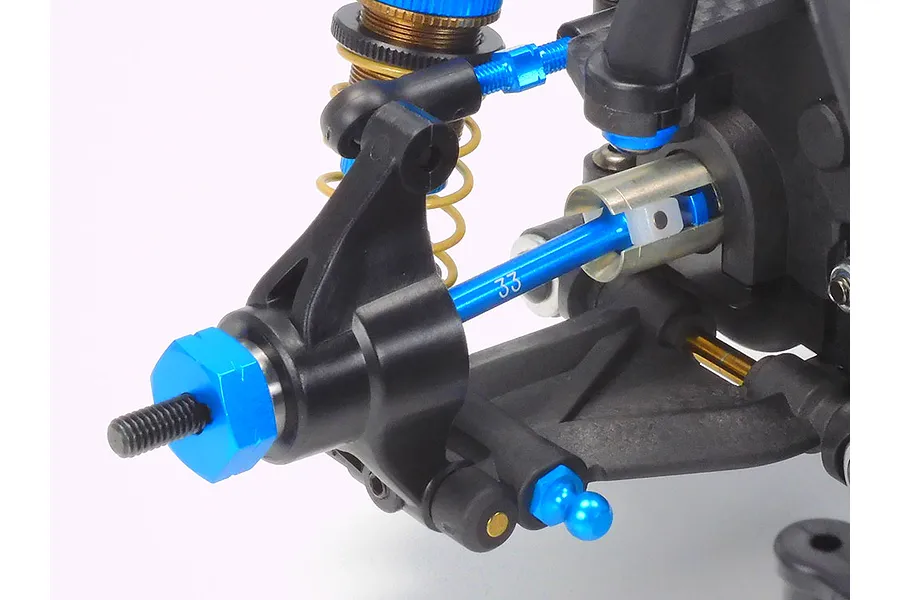

  • 54969: 33mm Lightweight Aluminum Swing Shafts (2pcs.)
Required Items
Note

This kit comes without an Electronic Speed Control. Click Here to view our range of ESCs.

The Tamiya M-08 Chassis platform gets a performance boost with this Limited-Edition release. The M-08R Chassis Kit employs various kinds of option parts such as a ball differential, for the rear gearbox, and TRF (Tamiya Racing Factory) precision oil dampers to get ready for club races!

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Specifications
RC Car
Scale: 1/10
Max LiPo Power: 2S (7.4v)
Completion: Kit
Skill Level: Intermediate
Power Source: Electric Brushed
Chassis Type: Car
On/Off Road: On Road
Drivetrain: RWD
RC Kit
Suited Motor/ESC Type: Electric
Factory Specs
Max LiPo Power: 2S (7.4v)
Battery Connector: Tamiya
Front Shock Oil: 400cSt
Rear Shock Oil: 400cSt
Pinion Gear: 20T
Spur Gear:
Wheel Hex Size: 12mm
