Tamiya XV-01 Lancia Delta Integrale RC Rally Car Electric 4WD 1/10 Scale Kit
- 1/10
- 4WD
- Kit
- Brushed
Part no. 58569
Videos
1/10 scale R/C assembly kit of the Lancia Delta Integrale with Martini Racing stripes on the belt-driven 4WD XV-01 chassis.
- 1/10 scale Lancia Delta Integrale with Martini Racing stripes and detailed blister fenders
- XV-01 front-motor, belt-driven 4WD chassis for on- and off-road performance
- Gear differentials customisable with different viscosities of differential oils

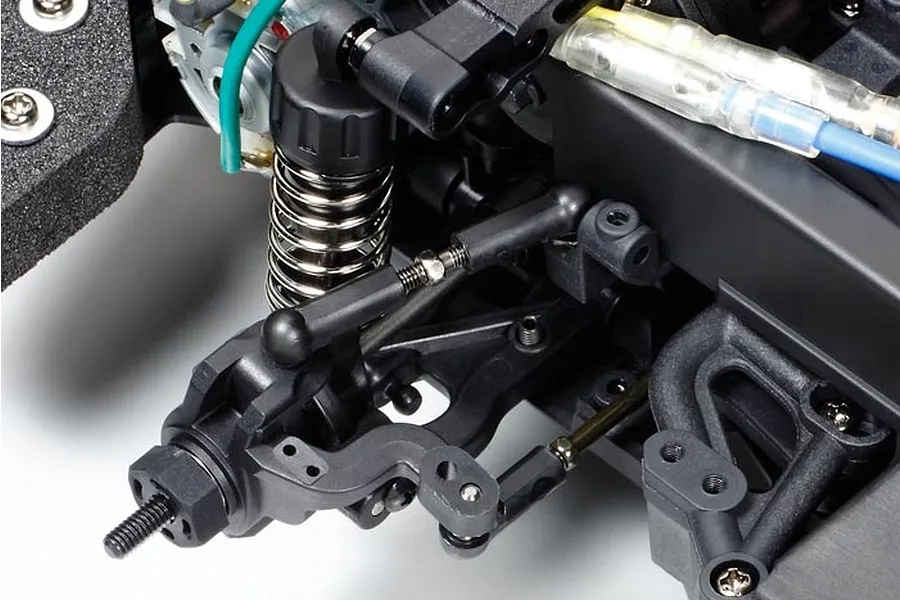

- Long steering linkage for stable wheel alignment
- Rally block tires included, ready to drive on-road or on flat dirt
Ordered 10 Nov · we're waiting on our supplier
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
In stock now: similar
- Killerbody Venus Lancia Delta HF Integrale RC Rally Car Electric RWD 1/10 Scale RTR - Jolly Rogers Repsol
Now $329.99
was $369.99Save $40
Videos
Overview
Painting Required
This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.
This is a 1/10 R/C model assembly kit of the Lancia Delta Integrale. The polycarbonate body recreates the look of the angular 4-door hatchback, complete with front/rear blister fenders and details such as the bulge on the front bonnet and the numerous air intakes in the front bumper. The kit also includes separate parts to depict the side mirrors and roof spoiler. Stickers recreate the markings, including the famous Martini Racing stripes. The model runs on the front-motor, belt-driven 4WD XV-01 chassis, and comes complete with rally block tires to make it ready to drive on-road or on flat dirt.

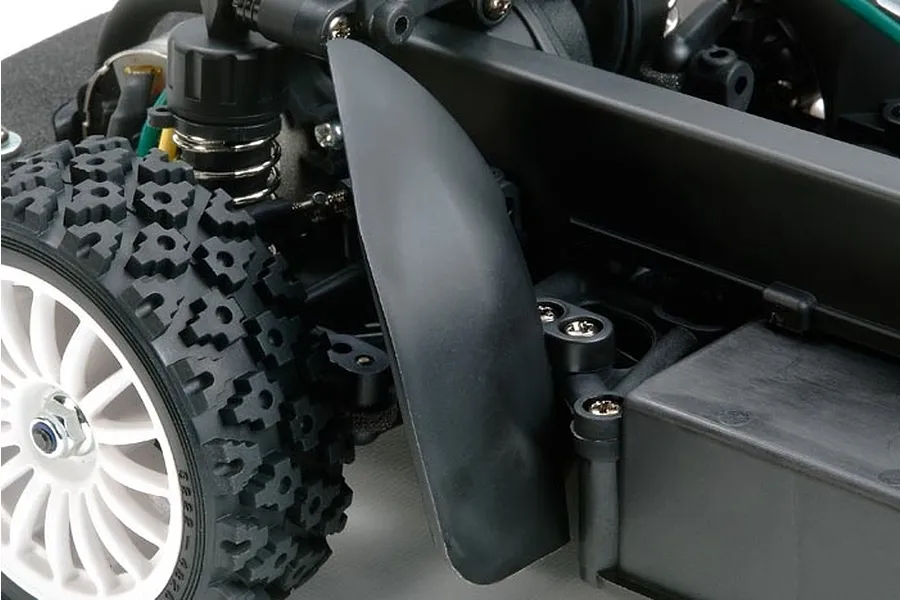

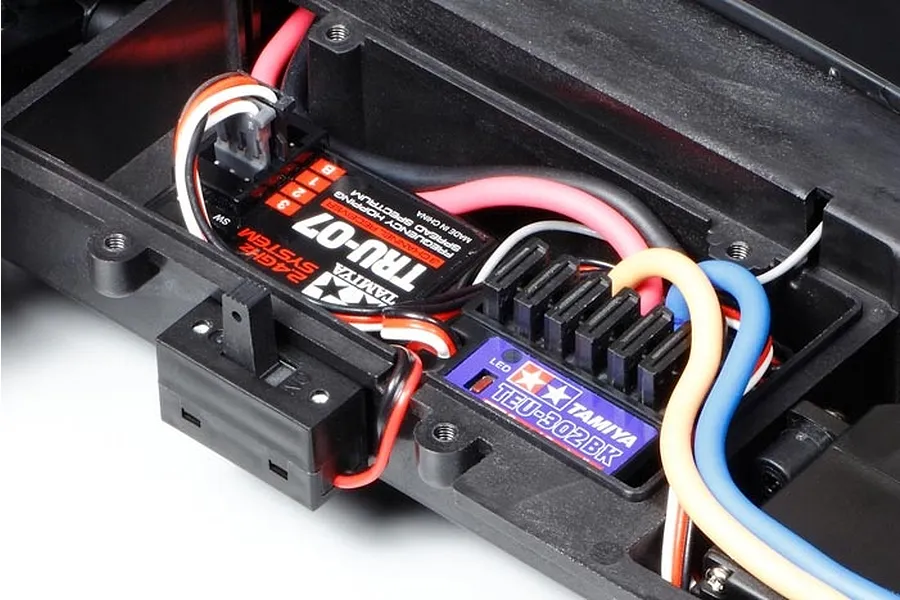

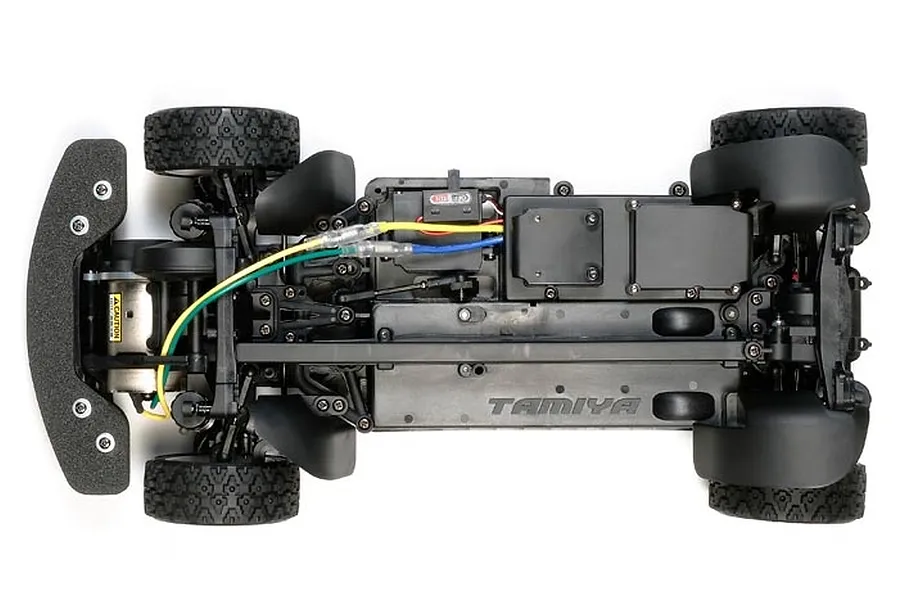

The XV-01 chassis offers exciting R/C driving action on both on- and off-road surfaces. It features a front-motor, belt-driven 4WD layout with the gearboxes, drive belt, battery, and R/C unit areas protected by covers against dirt and debris. Holes in the bottom of the chassis further help remove any debris which manages to get onboard, ensuring unhindered off-road performance. Long steering linkage provides stable wheel alignment. Detachable wheel well liners help prevent mud and gravel intrusion. Gear differential units enable customization with different viscosities of differential oils.
Note
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.
Features
- Highly detailed 1/10 Lancia Delta Integrale clear polycarbonate body
- Front motor mount
- Smooth 4WD belt drive system

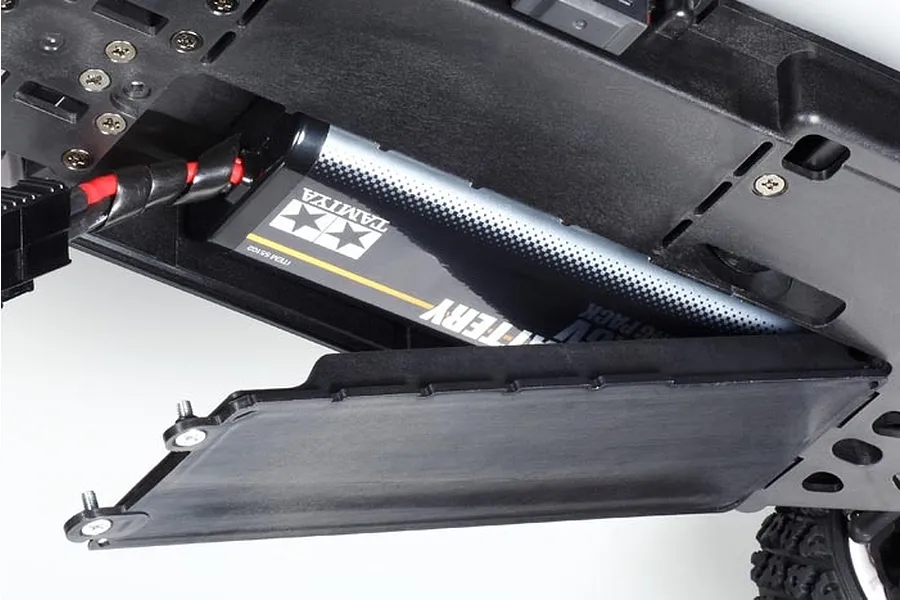

- Protected battery compartment
- Full ball bearings
- FRP (Fiberglass Reinforced Plastic) chassis

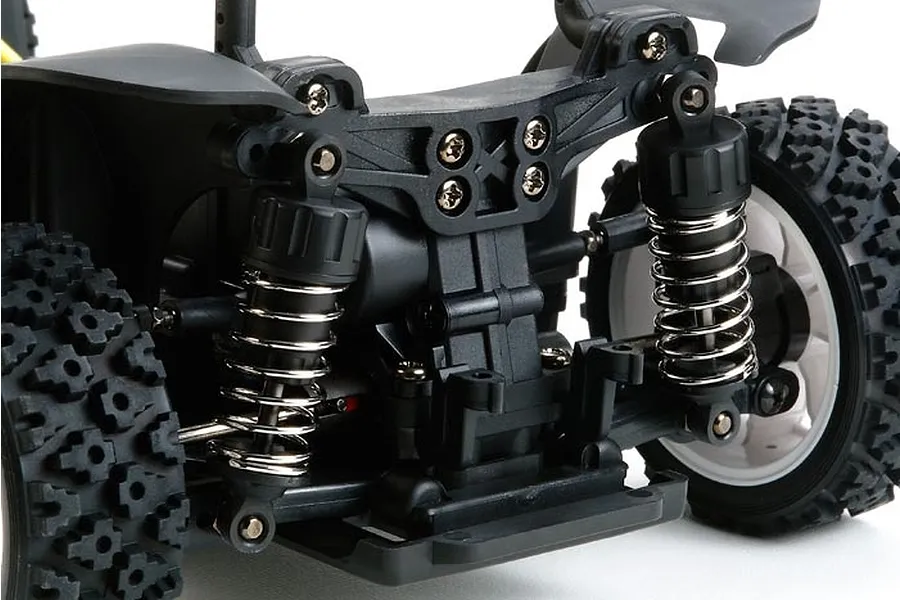

- CVA oil-filled shocks
- Front/rear differentials
- 4-wheel double wishbone suspension
- Powerful brushed 540 motor
In the box
- 1x Tamiya XV-01 Lancia Delta Integrale RC Rally Car Electric 4WD 1/10 Scale Kit
You'll need
- Radio
- Steering servo
- Battery
- Charger
- Paint
- Tools
Specifications
| Length | 407mm (16.02") |
|---|---|
| Width | 186mm (7.32") |
| Height | 155mm (6.10") |
| Wheelbase | 257mm |
| Drivetrain | 4WD |
RC Car
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 3S (11.1v) |
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric Brushed |
| Chassis Type | Car |
| On/Off Road | On Road |
| Drivetrain | 4WD |
RC Kit
| Suited Motor/ESC Type | Brushed |
|---|
Factory Specs
| Battery Connector | Tamiya |
|---|---|
| Front Shock Oil | 900cSt |
| Rear Shock Oil | 900cSt |
| Front Differential Oil | 900cSt |
| Rear Differential Oil | 900cSt |
| Pinion Gear | 22T |
| Spur Gear | 68T |
| Wheel Hex Size | 12mm |
