Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC image 74644

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC image 74645

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC image 74646

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC image 74647

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC image 74648

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC image 74649

Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC

Brand: Tamiya | SKU: 58720

sold out

write a review

$493.28

Tamiya TT-02SRX RC Touring Car Kit: Build Your Ultimate Racing Machine

Perfect for all skill levels
4WD Shaft-Driven for superior control
Compatible with a wide range of upgrade parts
Highly customisable
Adjustable chassis length

Add to Wishlist

Ordered Feb 04, 2026

2 weeks ago

The date we ordered this product from our supplier.

Save Time & Add These Now

Complete your setup with these required items.

FlySky FS-G11P 2.4Ghz 11Ch Radio with R11P Receiver

$290.31

Transmitter and Receiver

NXE 7.4v 5000mAh 100C

$88.97

Battery

Power HD Silver Storm S15 Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo

$180.37

Servo

Justock XR10 G2.1 13.5T Sensored Brushless Motor & G3S 60A ESC Combo

$220.07

Motor & ESC

SkyRC S100neo AC/DC Smart Charger

$103.84

Charger

Hobbies Direct 240x180mm Small LiPo Safe Bag

$9.99

LiPo Safe Charging Bag

Solaris 1/10 28J Premounted Touring Car Rubber Tyres w/ Black Rims 4Pcs

$44.95

Wheels

MonTech 1/10 190mm Trofeo GT Unpainted Body Shell w/ Decal Sheet

$59.95

Body Shell

Description

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

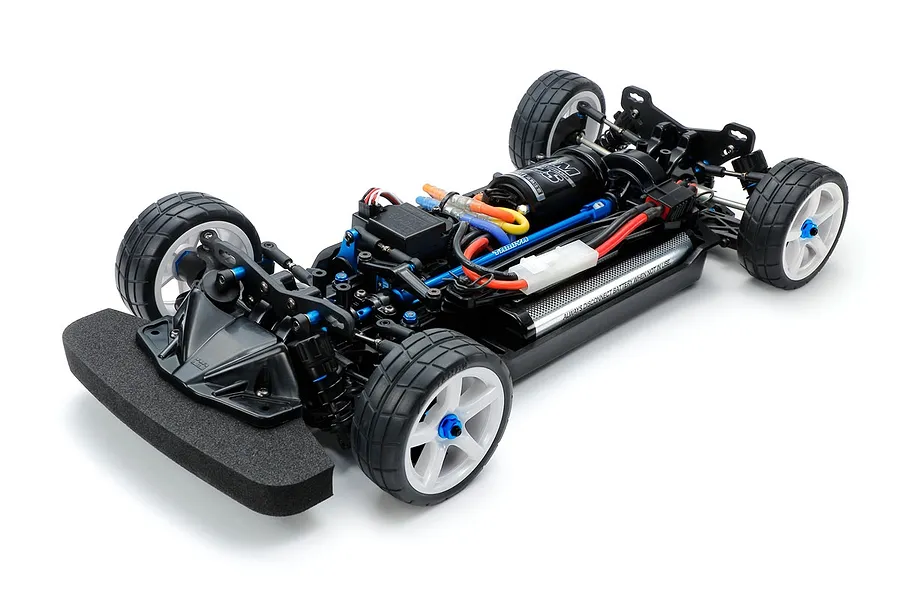

The Tamiya TT-02SRX is a dream come true for RC enthusiasts who crave both a rewarding building experience and a high-performance racing machine. This 1/10 scale electric 4WD kit is packed with premium features, including a direct cup and double cardan drive shaft, oil-filled gear differential, and TRF420 suspension arms.

With its adaptable design and a range of hop-up options, the TT-02SRX offers endless possibilities for customisation. Fine-tune your setup to match your driving style and track conditions, from adjusting the rear suspension mount to swapping out the pinion gear for different gear ratios. Experience the satisfaction of building a truly unique and competitive RC car, and unleash its full potential on the track.

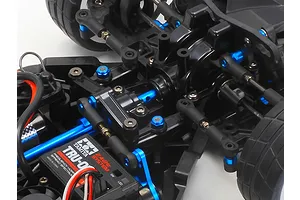

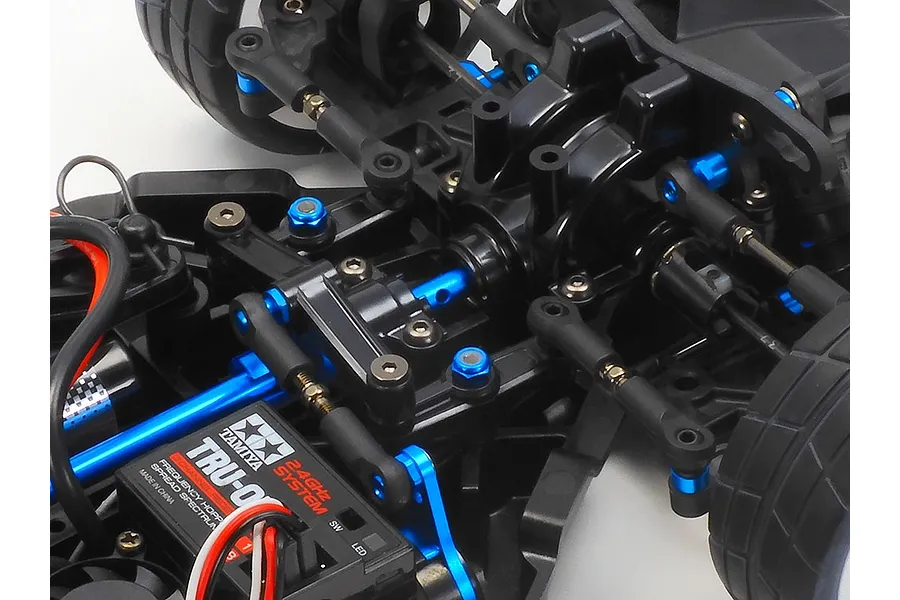

Crash-Resistant Steering

The included high-torque servo saver ensures you have ample steering angle for navigating tight turns, delivers a sharp and responsive steering feel, and protects your valuable steering components in the event of a collision.

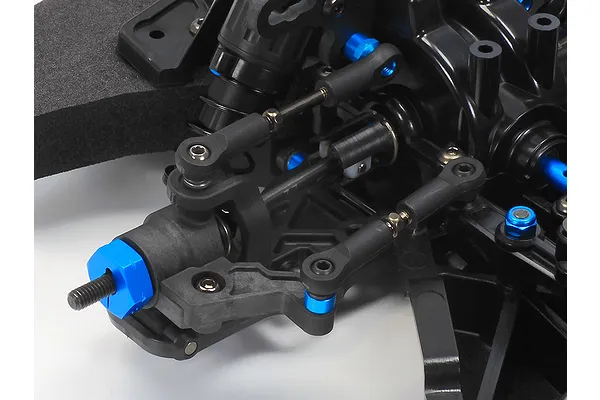

Championship-Calibre Suspension

The TT-02SRC inherits the performance legacy of the TRF420 with its proven suspension arms and uprights. The double cardan drive shaft further improves cornering capabilities, allowing you to carve through bends with confidence and precision.

Lightweight Performance & Protection

The aluminium propeller shaft reduces rotating mass for improved acceleration and handling. A protective plastic swing shaft cap shields the joint from wear and tear, ensuring long-lasting performance.

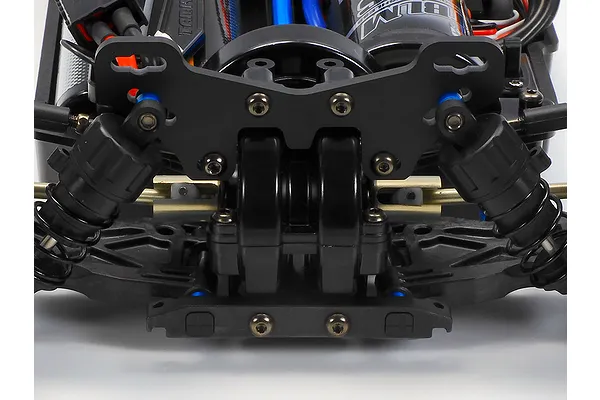

Unmatched Suspension Tuning

With six upper and three lower damper mounting positions, you have an unparalleled level of control over your suspension setup. This allows you to precisely tailor the TT-02SRX's handling to match any track or driving style.

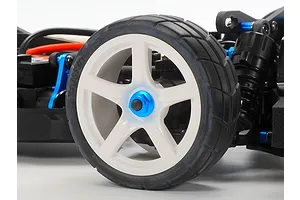

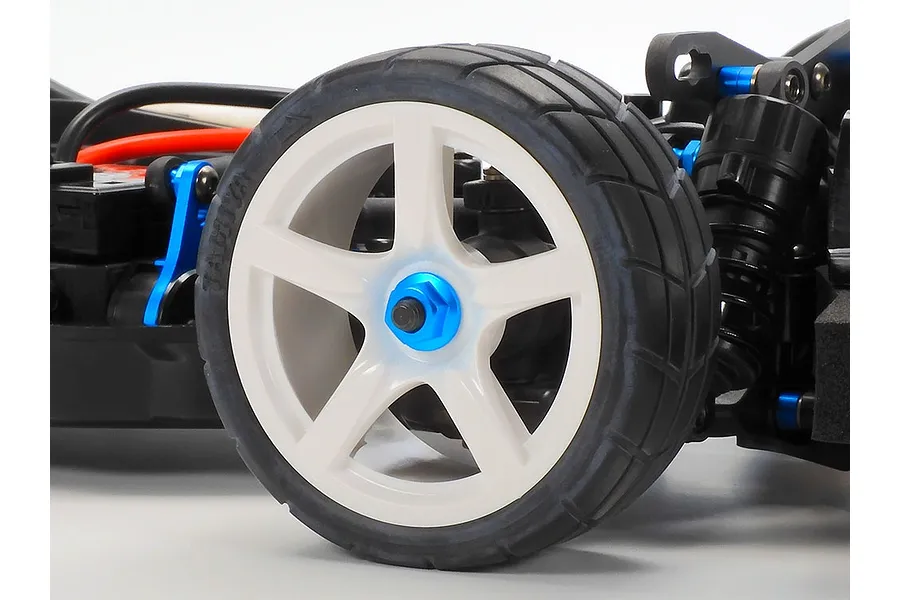

Style & Performance

Eye-catching blue 4mm aluminium serrated wheel nuts add a touch of flair to your ride. The simple yet sporty five-spoke wheels complement the overall design, providing a clean and purposeful aesthetic.

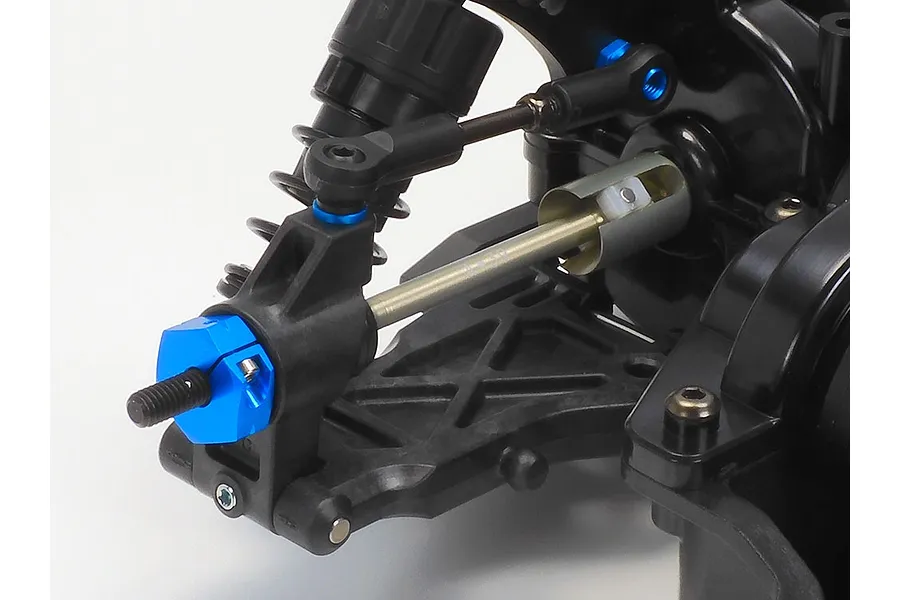

Maximum Traction & Efficiency

Front direct cups ensure stable and predictable handling while simplifying the assembly process, with the upgraded joint cups offering exceptional durability, keeping your vehicle performing at its best for longer.

Features

Comes with a range of Hop-Up parts included

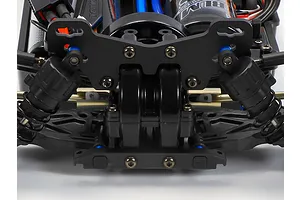

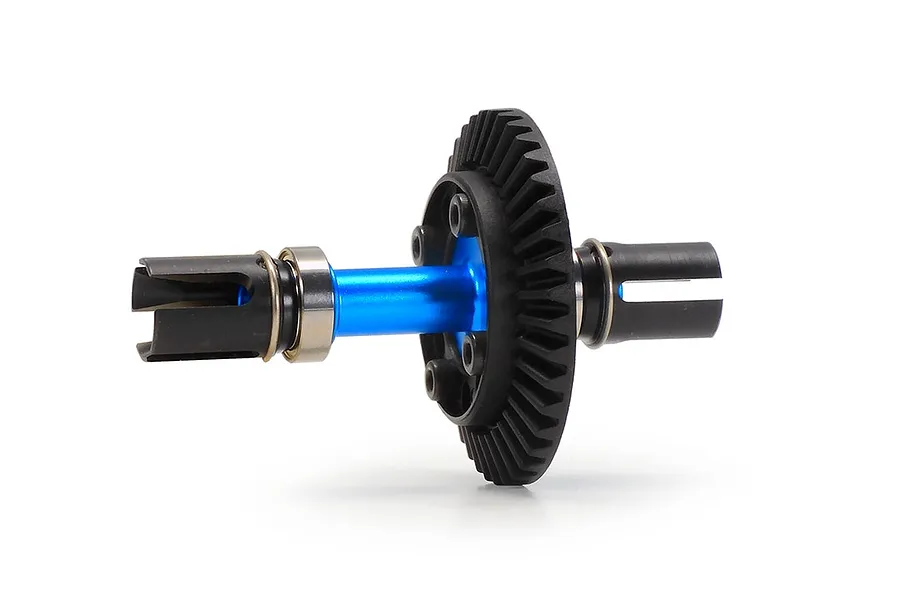

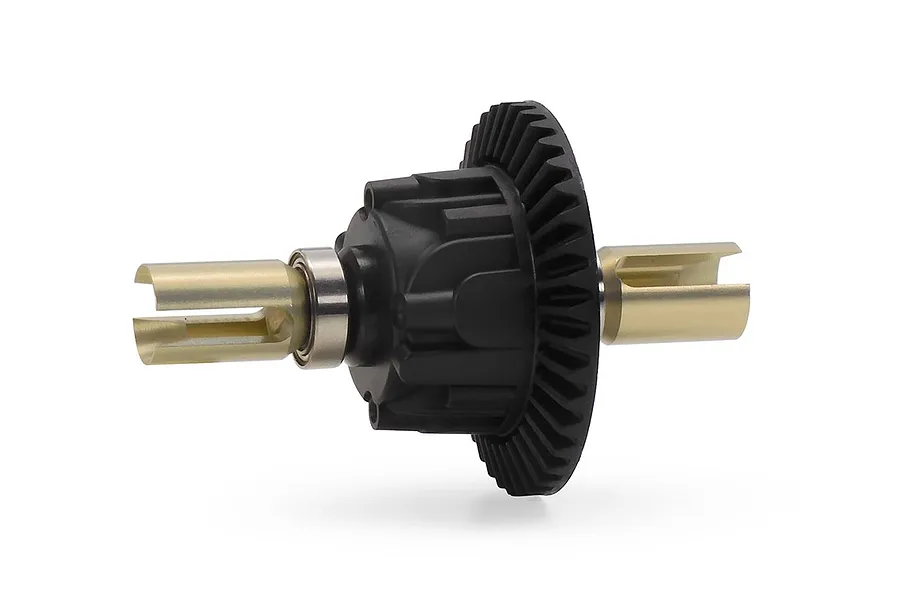

Rear oil-filled differential provides smooth and consistent power delivery, while the front direct spool offers increased acceleration and steering stability
Lightweight aluminium diff joint cups reduce unsprung weight for improved agility and responsiveness
Custom-designed direct cups for enhanced durability and a snug fit on the driveshafts
Proven 4-wheel independent double wishbone suspension from the TRF420 chassis allows for fine-tuning of various suspension geometry settings
Newly shaped propeller joints compatible with swing shaft protectors for improved drivetrain efficiency and reduced wear on exposed parts
37mm front drive shafts and 39mm hard-coated rear drive shafts for optimised steering geometry and enhanced durability
Comes with a high torque servo saver to better protect the servo
Full ball bearings throughout the drivetrain for enhanced smoothness and efficiency
Comes with the 27T pinion to provide a 6.55:1 ratio along with several other high speed gears
Genuine Tamiya Product

Specifications

Length: 361mm (14.21")
Width: 183mm (7.20")
Height: Varies
Wheelbase: 258mm (10.16")
Weight: Varies
Chassis: On Road
Drivetrain: 4WD
Suspension: Oil Filled Coil Over Shock Absorbers
Motor: Not Included
ESC: Not Included

Included Items

1x Tamiya TT-02SRX RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC

Required Items

1x Compatible 7.4V LiPo
1x Compatible Charger
1x Compatible 1/10 Scale ESC
1x Compatible 1/10 Scale Low Profile Servo
1x 2+ Channel Transmitter & Receiver
1x 258mm Body Shell
Polycarbonate Compatible Paint
AA Batteries For Transmitter

Specifications

Factory Specs

Spur Gear: 68T
Max LiPo Power: 3S (11.1v)
Wheel Hex Size: 12mm
Pinion Gear: 27T
Rear Shock Oil: 900cSt
Rear Differential Oil: 3000cSt
Battery Connector: Not Included
Front Shock Oil: 900cSt

RC Car

Drivetrain: 4WD
Completion: Kit
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric
Skill Level: Intermediate
Scale: 1/10
