Part no. 58707

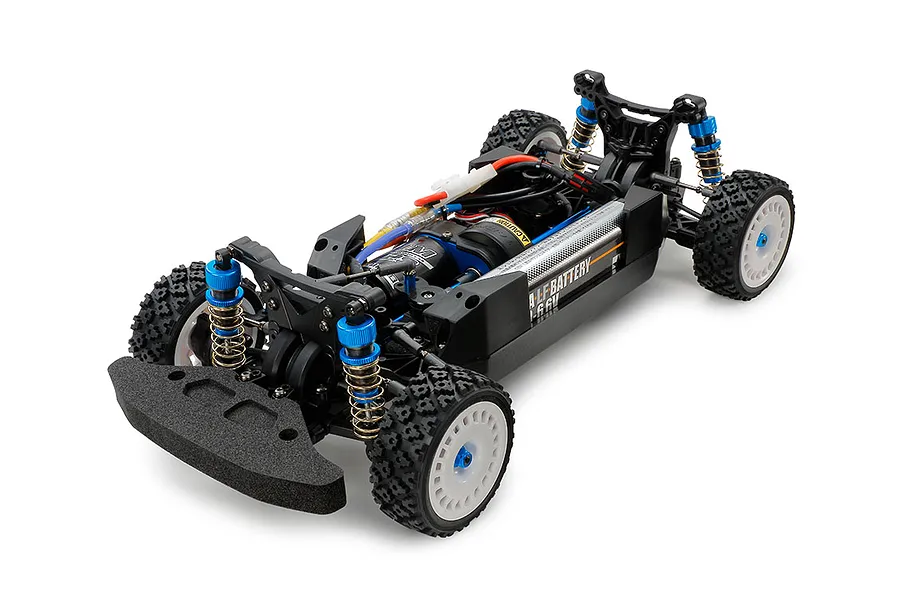

Tamiya XV-02 Pro 1/10 scale 4WD shaft-driven rally chassis kit — front mid-ship motor, adjustable drive balance, no ESC included.
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Now $471.17was $582.27 Save $111
Please Note:
This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.
The all-new XV-02 Pro chassis kit is Tamiya's second modern era rally chassis platform. Building on the XV-01 Pro's 4WD belt drive system, the XV-02 Pro takes its 4WD drivetrain in a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts.
Note
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

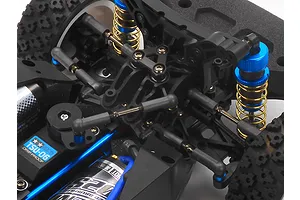

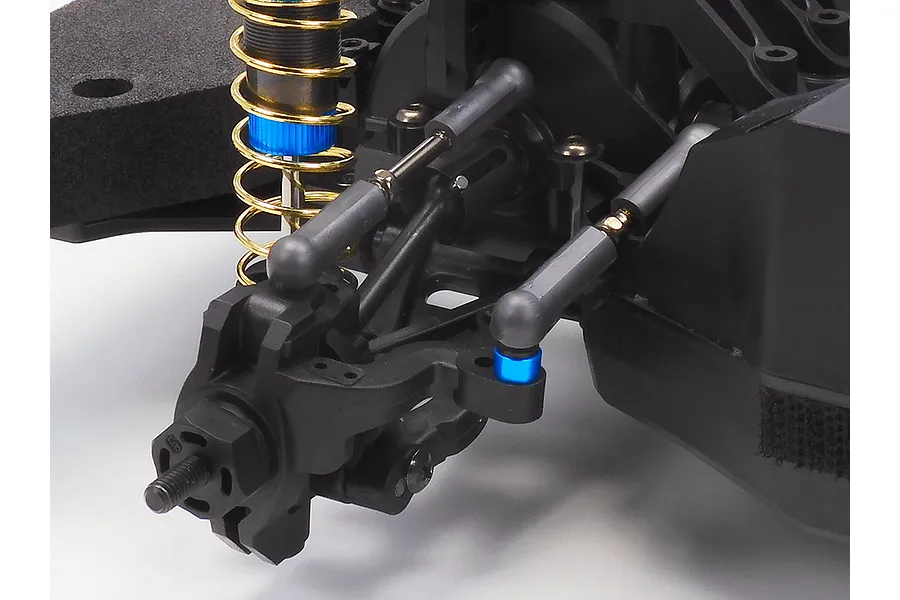

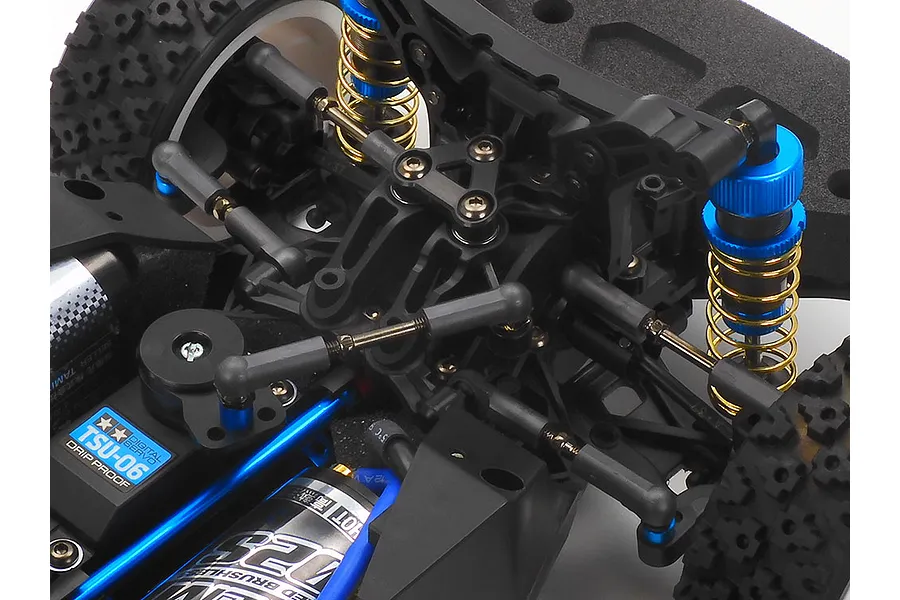

The steering system is designed for precision and durability. The turnbuckle steering rod allows for easy adjustments, while the aluminium servo mount and high-torque servo saver provide a secure and reliable setup.

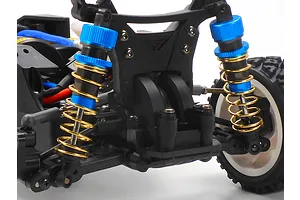

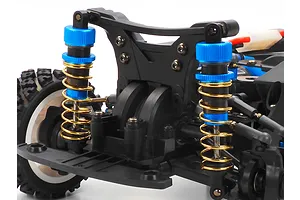

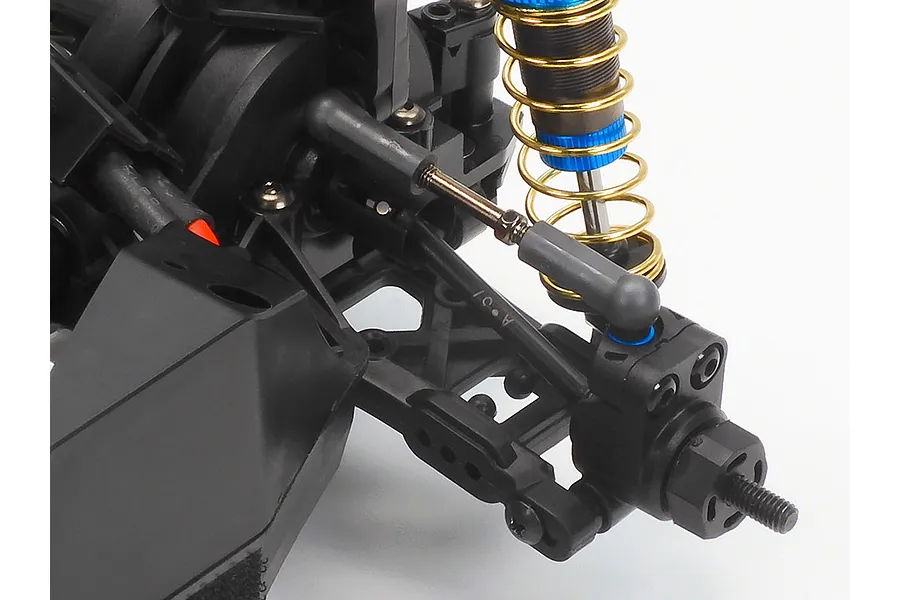

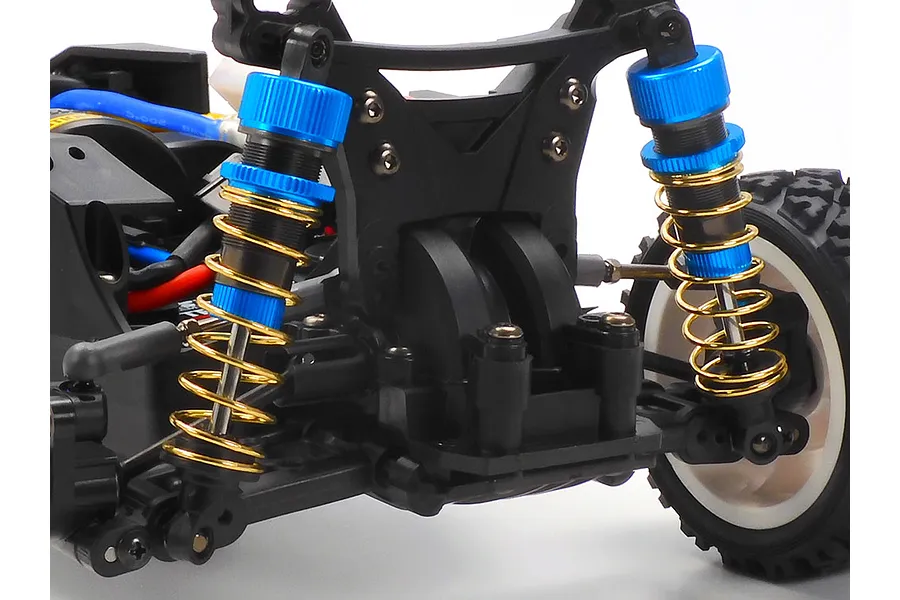

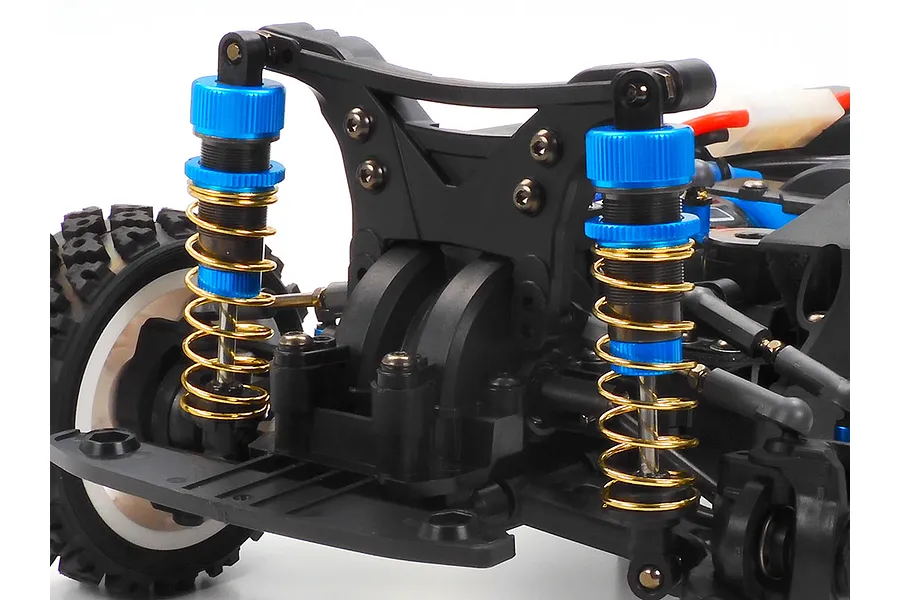

The double wishbone suspension, both front and rear, delivers exceptional handling and adjustability. The front features a 6-degree caster angle, long aluminium oil dampers, and turnbuckle upper arms. The rear suspension can be further customised with the optional OP.539 aluminium spacer set for adjusting the upper arm mounting position.

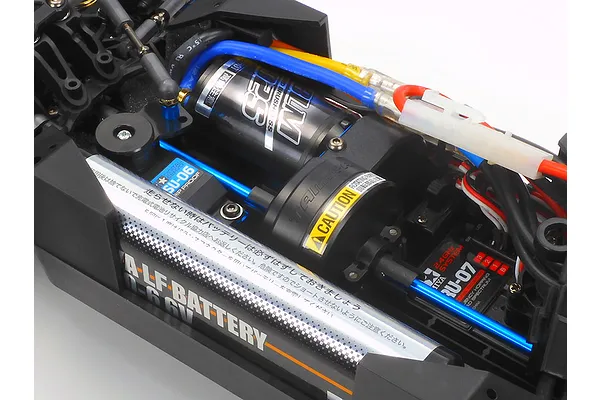

The centrally located spur gear distributes power evenly to the front and rear wheels via equal-length aluminium propeller shafts, ensuring balanced performance and efficient power transfer.

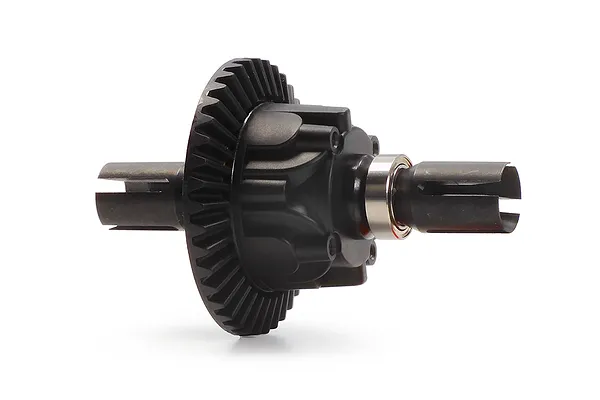

High-performance oil-filled gear differentials, housed in sealed gearboxes, provide smooth and consistent power transfer while improving durability and protecting the gears from the elements.

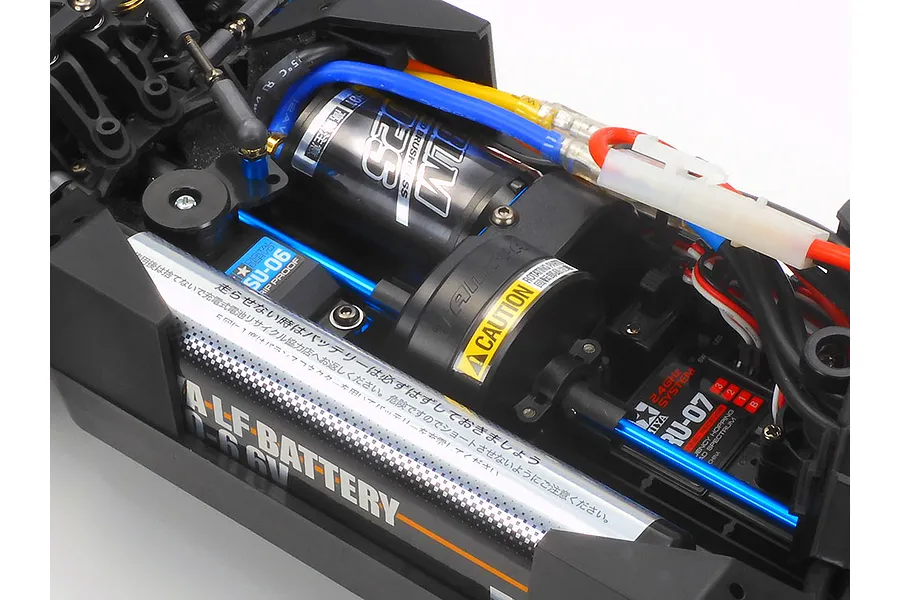

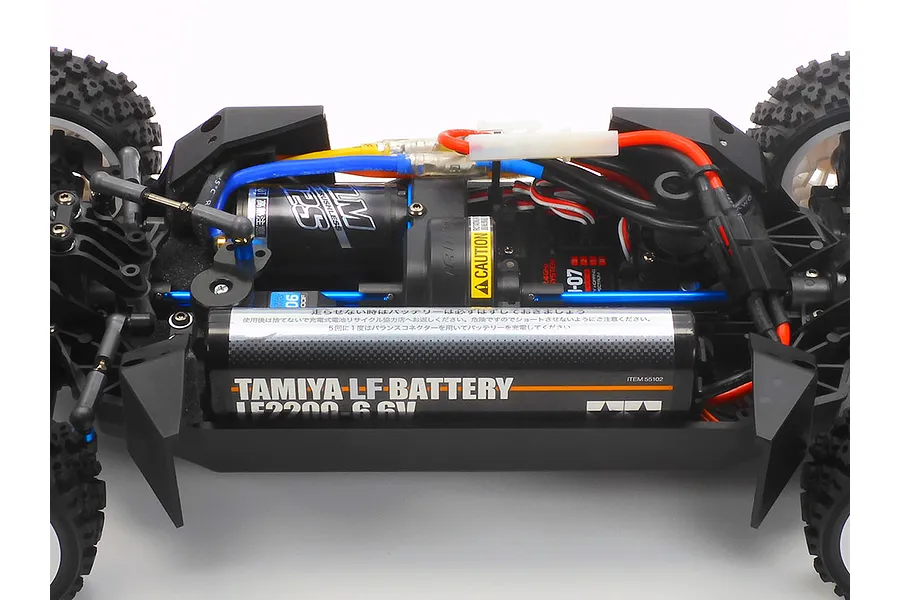

The vertically mounted battery pack is cleverly rotated 90 degrees to minimise chassis width, improving agility and handling. The battery can be easily replaced by opening the front and rear holders.

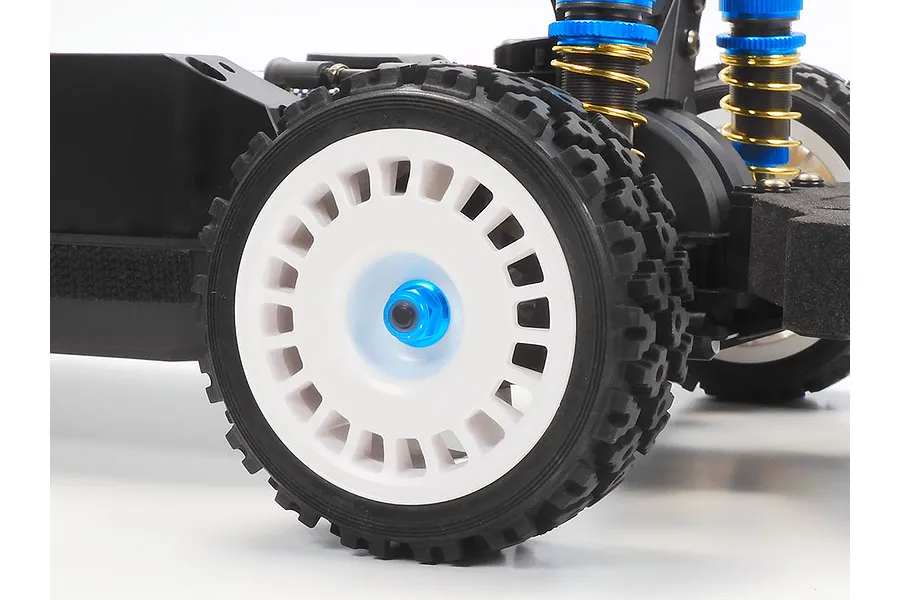

The car's wheels and tyres are a perfect blend of classic design and off-road performance. Dish wheels and rally block tyres provide the grip and style needed to tackle a variety of terrains.
| Length | 368mm (14.48") |
|---|---|
| Width | 180mm (7.08") |
| Height | N/A |
| Wheelbase | 257mm (10.11") |
| Weight | Varies |
| Chassis | Bathtub Type Plastic Chassis (Off Road Rally) |
| Drivetrain | 4WD |
| Suspension | Coil Over Shock Absorbers |
| Motor | Not Included |
| ESC | Not Included |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 3S (11.1v) |
| Completion | Kit |
| Skill Level | Intermediate, Experienced |
| Power Source | Electric |
| Chassis Type | Car |
| On/Off Road | On Road, Off Road |
| Drivetrain | 4WD |
| Suited Motor/ESC Type | Electric |
|---|
| Battery Connector | Not Included |
|---|---|
| Front Shock Oil | 400cSt |
| Rear Shock Oil | 400cSt |
| Front Differential Oil | 3000cSt |
| Rear Differential Oil | 3000cSt |
| Pinion Gear | 19T |
| Spur Gear | 70T |
| Wheel Hex Size | 12mm |
