Kyosho Optima Mid: 1/10 scale 4WD belt-drive buggy kit — a modern recreation of the legendary 1987 world championship contender.
- 10th model in the Kyosho vintage series — faithful recreation of the 1987 Optima Mid
- Mid-ship motor mount layout — centralises heavy components for optimised driving performance
- Belt-type 4WD with adjustable tensioner for smooth, efficient power transfer
- 48-pitch spur gear with reinforced slipper clutch supporting modern brushless motors
- Wide range of optional tuning and upgrade parts available
This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.
The Optima Mid is remembered for its brilliant debut at the 2nd World Electric Off-Road Car Championships in England, 1987, where the prototype occupied 5 out of the 10 qualifiers in the A-Main final and finished in second place. The Optima Mid's chassis layout with mid-motor position and undercarriage grew in popularity and became the foundation for modern racing buggies. It is the 10th model in the Kyosho vintage series.
The main chassis is made from 6061-T6 aluminium alloy for high rigidity, with countersunk hex screws for a flat underside. Each component has been updated to match a modern power system, including a 48-pitch gear for improved efficiency and precision gear ratio setting. The recreated Optima Mid also features an adjustable belt tensioner for smooth drive with minimal loss, plus FRP front and rear shock stays and a moulded resin belt cover sourced from Turbo Optima Mid specifications.

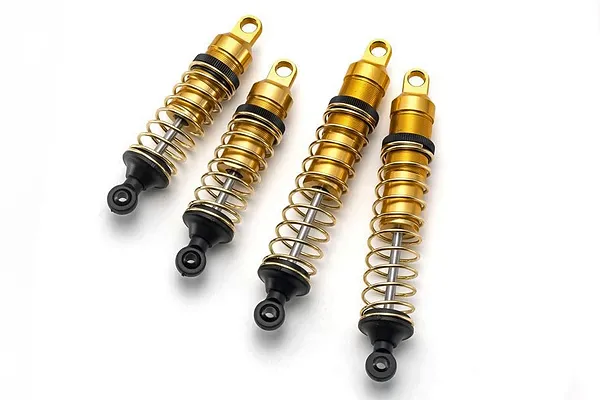

The aluminium oil shocks retain the classic look while featuring an updated dial adjustment for precise chassis height control and refined damping performance.

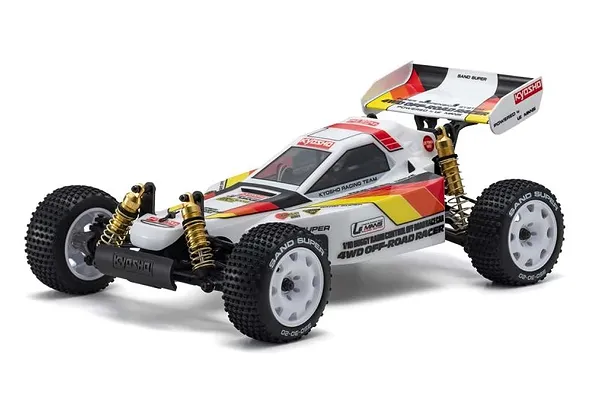

The basic design follows the 1987 Optima Mid. As the name suggests, the layout allows for the mid-ship motor mount. Driving performance is optimised by centrally locating heavy components on the chassis.
The 6061-T6 aluminium alloy main chassis achieves an excellent balance between rigidity and crash resistance. Incorporating hex screws with countersunk holes for a flat underside of the chassis.
The front and rear shock stays have been updated from the original aluminium to FRP, similar to the Turbo Optima Mid-specs.
Stabiliser end mounting holes have been added to the front suspension arms. The quality of the material has been optimised for increased strength and driving stability.

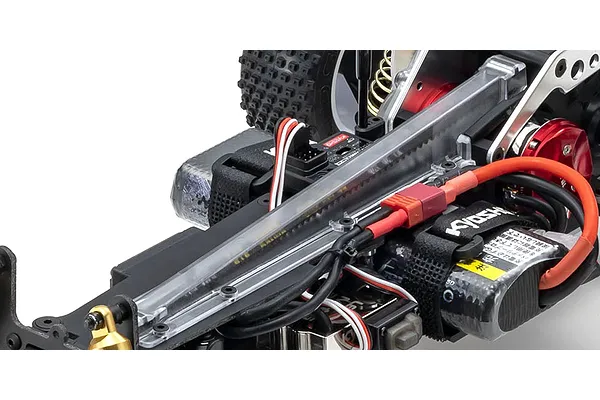

The belt cover has been updated from the previous vacuum-formed part to a moulded resin part that effectively protects the drive belt from dirt and dust. The new belt cover is easier to assemble and provides more complete protection from dust.
The Optima Mid's drivetrain features a 48-pitch spur gear and a slipper clutch for enhanced performance and durability. The slipper clutch protects the gears from shock loads, ensuring smooth operation and extending the life of the drivetrain.
Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.
The Optima Mid features a 6061-T6 aluminium alloy main chassis with a mid-ship motor mount and belt-type 4WD system.
The belt-type 4WD system delivers excellent drive efficiency and stability, even on roads with low grip.

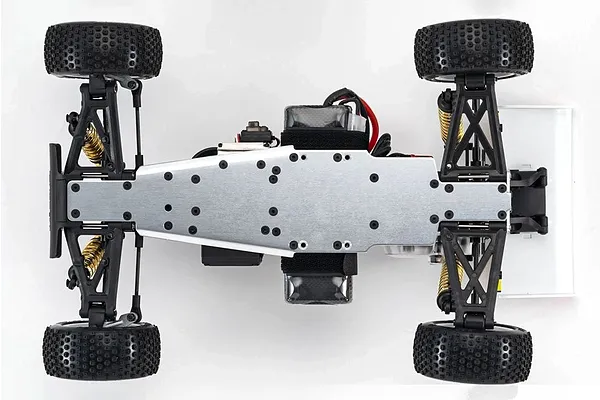

The 6061-T6 aluminium alloy main chassis achieves an excellent balance between rigidity and crash resistance, with countersunk holes for a flat underside.

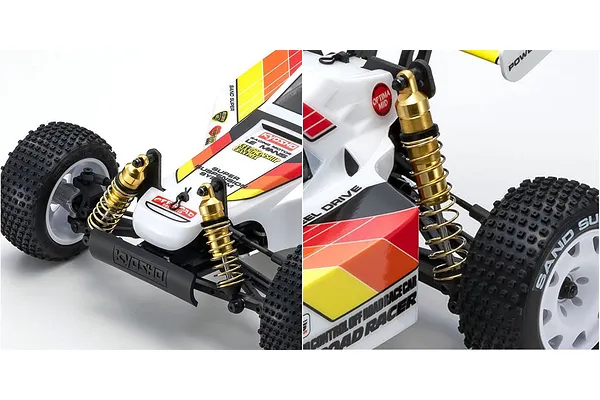

Front and rear shock stays have been updated from the original aluminium to FRP, similar to Turbo Optima Mid specs, with gold anodised oil-filled shocks.

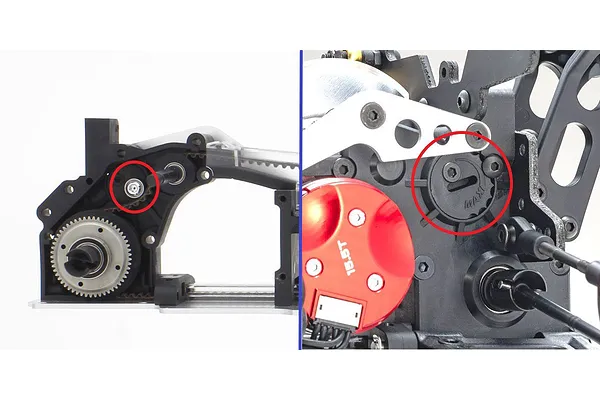

Belt tension can be adjusted through the newly equipped belt tensioner, which also improves driving efficiency and reduces power loss.

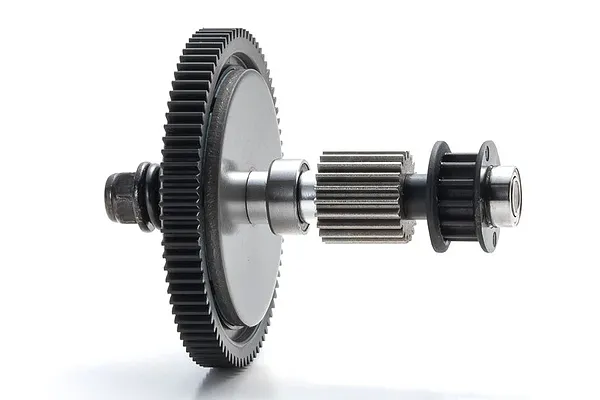

48-pitch spur gear is equipped with a slipper clutch that protects the gear from shocks while driving.

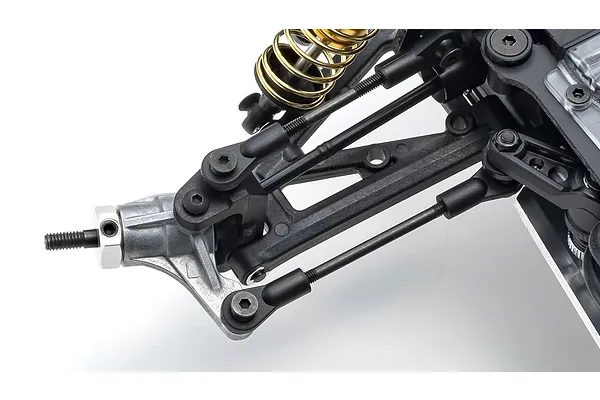

Stabiliser end mounting holes have been added to the front suspension arms with optimised material for increased strength and driving stability.
New wheels recreate the original Optima Mid design and include the same tyres as the Turbo Optima for exceptional grip.

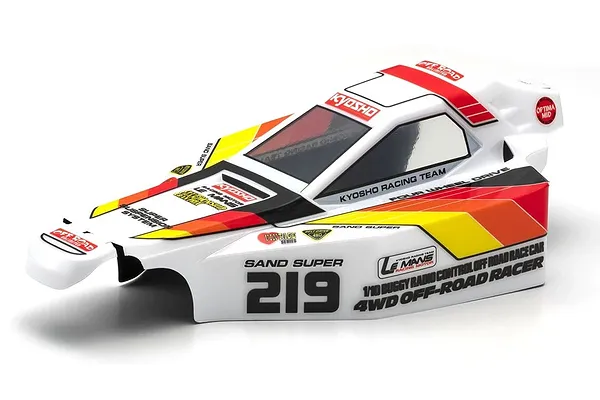

Includes decals that recreate the design used on the original packaging; a masking sheet is also included so the body can be finished with a simple single-colour coat.
- The 10th model in the Kyosho vintage series — recreation of the 4WD buggy that made a brilliant world championship debut in 1987
- Updated to match modern R/C electronics and power systems
- Belt-type 4WD system with adjustable belt tensioner delivers excellent drive efficiency and stability
- 48-pitch pinion and 82T spur gear; optional settings for 78T/80T spur gears; corresponds with the existing Ultima RB7
- Reinforced slipper clutch supports powerful brushless motors; adjustable by exchanging with the Ultima RB slipper sheet
- 6061-T6 aluminium alloy main chassis with countersunk main chassis for flat underside
- FRP front and rear shock stays (Turbo Optima Mid specification)
- Gold anodised oil-filled shocks with dial adjustment for easy vehicle height tuning
- Stabiliser end mounting holes added to front suspension arms, with optimised material for increased strength
- Moulded resin belt cover for improved dust and dirt protection compared to the original vacuum-formed part
- New wheels recreating the original Optima Mid design with the same tyres as the Turbo Optima
- Reinforced nylon rear wing shared with the Javelin; three mounting angles for setting options
- Battery holder compatible with various battery types; includes hook-and-loop fastener with KYOSHO logo
- Blister packaging replicates original packaging style
- Wide range of optional parts available for tuning and upgrades
- Length: 375mm (14.7")
- Width: 244mm (9.60")
- Height: 142mm (5.59")
- Wheelbase: 255mm (10.0")
- Tread (F/R): 208mm (8.18")
- Weight: approx. 1,600g (3.52 lbs) with 7.2V 4000mAh LiPo
- Tyres (F/R): 82×36mm (3.22×1.41")
- Motor: 540 class size (sold separately)
- Gear Ratio: 8.28:1
- Drivetrain: 4WD Belt Drive
- Chassis: 6061-T6 Aluminium Alloy
- Kit chassis
- Tyres
- Rims (white)
- Clear body
- Wing (white)
- Mask sheet
- Decals
- Hex wrench
- Cross wrench
- Shock wrench
- Grease
- Shock oil
- 1x 7.4V LiPo battery & compatible charger
- 1x Servo
- 1x Electronic Speed Controller (ESC)
- 1x 540 size motor
- 1x 2-channel transmitter & receiver
- Polycarbonate paint
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish this body, as standard paints will not adhere and/or cause damage to the body shell's surface.
-
Scale
- 1/10
-
Max LiPo Power
- 3S (11.1v)
-
Completion
- Kit
-
Skill Level
- Intermediate
-
Power Source
- Electric
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Suited Motor/ESC Type
- Electric
-
Max LiPo Power
- 3S (11.1v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 200cSt
-
Rear Shock Oil
- 200cSt
-
Front Differential Oil
- 3000cSt
-
Rear Differential Oil
- 3000cSt
-
Pinion Gear
- 25T 48dp/0.5Mod
-
Spur Gear
- 82T 48dp/0.5Mod
-
Wheel Hex Size
- 12mm
