Kyosho Turbo Optima Mid Special Vintage Edition RC Buggy Electric 1/10 Scale Kit
Kyosho Turbo Optima Mid Special Vintage Edition RC Buggy Electric 1/10 Scale Kit
Kyosho Turbo Optima Mid Special RC Buggy: Revived 1/10 scale 4WD electric vintage buggy kit, the iconic final form of the Optima series.
Longer wheelbase enhances high-speed stability and cornering
Hybrid FRP and carbon chassis balances flex and rigidity
High-efficiency belt-drive 4WD system for smooth control
Features adjustable turnbuckle upper arms and steering rods
Perfect for experienced RC enthusiasts and vintage collectors
This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and includes an unpainted polycarbonate body shell that may require cutting and drilling.
Relive the golden era of RC racing with the Kyosho Turbo Optima Mid Special Vintage Edition kit. This iconic buggy, the final evolution of the legendary Optima Mid series, dominated the 1987 World Championships and was commercialised to worldwide acclaim. The 1988 limited edition Turbo Optima Mid Special, with its instantly sold-out status, returns in 2025 as part of Kyosho's esteemed Vintage Series. This faithful reproduction retains the defining features that made it a champion, including an 18mm longer wheelbase for superior high-speed stability and cornering prowess.

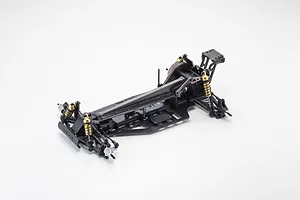

The meticulously designed main chassis, constructed from FRP sandwiched between carbon plates, strikes an optimal balance of flexibility and rigidity for exceptional handling. The belt and belt cover are specific to this model, and the newly created body perfectly complements the chassis' extended dimensions. While maintaining the original design, this edition incorporates updates to support modern power systems and RC electronics. Previously optional parts are now standard, making this not just a nostalgic remake but a capable modern-day racer ready for the track.

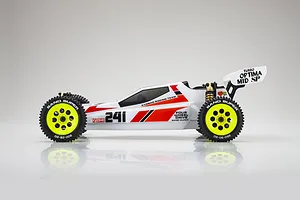

Built on the same fundamental design as the 1988 Turbo Optima Mid Special, its longer wheelbase greatly enhances driving stability compared to the standard Optima Mid. This vintage-inspired modification ensures confident control and smooth handling on track.

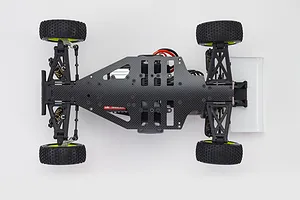

The main chassis uses a high-tech hybrid material (FRP layered with carbon). This provides balanced flexibility under load for smooth handling. Inspired by the original, it features slots allowing for a classic split battery configuration setup for optimal weight distribution and vintage authenticity.

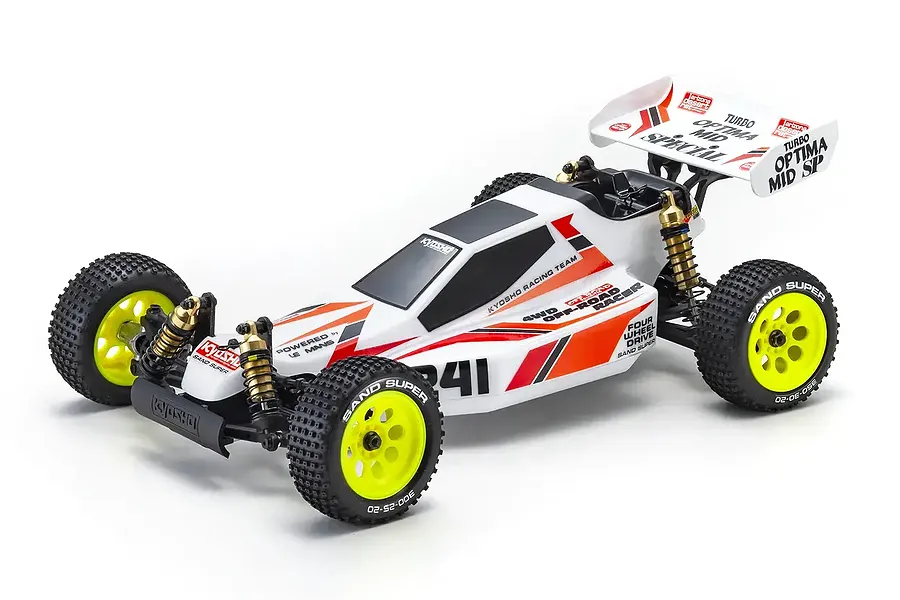

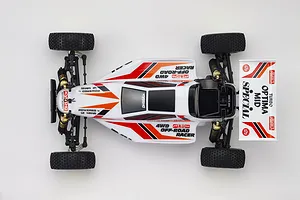

The body is redesigned specifically for the extended wheelbase. It has been updated to fit modern battery sizes while perfectly preserving the original iconic appearance. Includes a dustproof underbody for improved aerodynamics and a decal sheet to replicate the original packaging colour scheme.

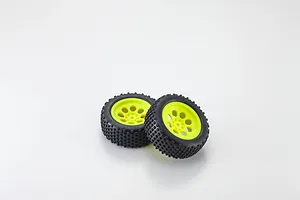

For this vintage relaunch, newly designed narrow 50mm front tyres and wheels are introduced. The block-pattern tyres provide superior grip on track. The yellow resin-moulded wheels match the existing rear wheels, creating an authentic vintage racing look.
The oil shocks feature a beautiful gold anodised finish, inspired by vintage Kyosho high-end models. They use medium-hard springs in both the front and rear, ensuring smooth, responsive suspension action and predictable handling on various surfaces, just like the originals.
Aluminium parts are finished in exclusive Kyosho Works gunmetal colour, a special touch not available on the original 1988 production model. The shock (damper) stays feature durable black FRP plates, adding to the authentic vintage racing look and feel of this special edition kit.

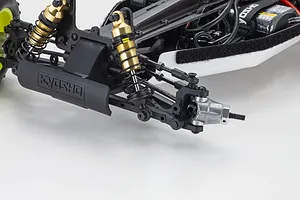

Standard universal swing shafts are fitted on the front axle. This advanced design reduces drivetrain loss, which minimises deceleration during cornering. It also helps prevent parts from detaching during operation, ensuring reliable power delivery and performance on the track.
A new belt cover designed to fit the extended wheelbase securely protects the drive belt from dirt and stones entering the drivetrain. The precise fit also makes it easy to attach the upper deck during assembly, ensuring a clean, well-protected build and smooth belt operation.
Turnbuckle-type upper suspension arms and steering rods are included as standard. These allow quick, stepless length adjustments without disassembly. This enables rapid setup changes for fine-tuning your buggy's performance to different track conditions quickly and easily at the trackside.
The rear hub carrier (upright) allows toe angle adjustments at 0°, 1°, or 2°. This is achieved simply by swapping bushings in the hub. This feature provides easy setup changes and wide adaptability to different track conditions, letting you quickly dial in the grip you need.
Ball differentials are included for both the front and rear axles. They provide smooth operation and deliver maximum traction to the wheels with their controlled slip action. This makes the buggy predictable and fast, helping you get the power down effectively out of corners.
Faithful Recreation of the Legendary 1988 Turbo Optima Mid Special
Features Eight Newly Designed Parts Specific to This Edition
Updated to Support Modern RC Electronics and Power Sources
High-Efficiency Belt-Drive 4WD System
48-Pitch Pinion and Spur Gears with Optional 78T/80T Spur Gear Compatibility
Equipped with Reinforced Slipper Clutch Adjustable with Dual Slipper Seat
Battery Holder Compatible with Various Battery Shapes (including NiMH/NiCd with trimming)
Reinforced Nylon Rear Wing (Shared with Optima Mid, Swappable with Scorpion Wing)
Rear Hub Carrier with Adjustable Toe Angles (0°, 1°, 2°)
Secure Aluminium Hex Wheel Hubs with Screw Pins
Drivetrain Features Full Ball Bearings for High Efficiency
Includes Newly Designed Narrow 50mm Front Tyres and Wheels
Oil Shocks with a Vintage-Inspired Gold Anodised Finish
Adjustable Turnbuckle Upper Suspension Arms and Steering Rods
Ball Differentials on Both Front and Rear Axles
Blister-Style Packaging Evokes Nostalgia
Genuine Kyosho Product
Length: 397mm (15.63")
Width: 250mm (9.84")
Height: 135mm (5.31")
Wheelbase: 273mm (10.75")
Weight: Approx 1620g (57.14oz)
Chassis: FRP with Carbon Plates
Suspension: Independent Double Wishbone
Drivetrain: Belt-Drive 4WD
Motor: 540 Class Size (Sold Separately)
ESC: Sold Separately
1x Kyosho Turbo Optima Mid Special Vintage Edition RC Buggy Electric 1/10 Scale Kit
1x Tyres
1x Wheels
1x Clear Body Shell & Underbody
1x Decals
1x Hexagon Wrench
1x Cross Wrench
1x Shock Wrench
1x Grease
1x #200 Shock Oil
1x Ball Differential Grease
1x 2 Channel RC System
1x Servo (Standard Size Recommended)
1x 540 Motor
1x ESC
1x Battery for Chassis (Size: L140xW50xH25mm Recommended)
1x Batteries for Transmitter
1x Charger for Battery
1x Paint for Body
1x Regulated Power Supply
This is a kit and requires complete assembly and painting.
Motor, ESC, servo, radio system, battery, and charger are sold separately.
Please refer to the instruction manual for detailed assembly and setup instructions.
-
Scale
- 1/10
-
Max LiPo Power
- 3S (11.1v)
-
Completion
- Kit
-
Skill Level
- Intermediate
-
Power Source
- Electric
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Suited Motor/ESC Type
- Brushless
-
Max LiPo Power
- 3S (11.1v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 200cSt
-
Rear Shock Oil
- 200cSt
-
Pinion Gear
- 48dp/0.5Mod
-
Spur Gear
- 82T 48dp/0.5Mod
-
Wheel Hex Size
- 12mm
